Wakeup Keys Tab
126 WORKABOUT PRO Hand-Held Computer With Windows Mobile 6 Classic & Professional User Manual
The backup battery draws a trickle charge from the reserved main battery power to
maintain the data even after the unit power is shut down. It will protect the data
stored in the WORKABOUT PRO while the main battery is swapped for a fully
charged one.
Important: Once the main battery is removed, the backup battery will pre-
serve the data stored on the WORKABOUT PRO for approxi-
mately 5 minutes. It is critical that you install a charged main
battery before this time elapses.
5.23.6 Wakeup Keys Tab

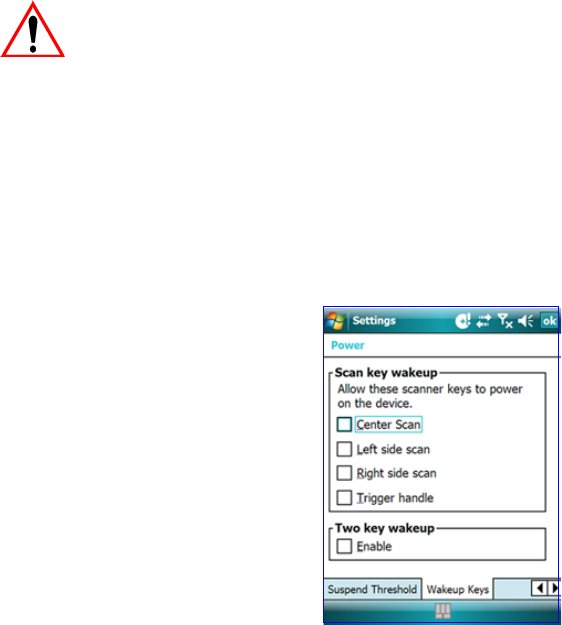

This option allows you to define which key can be pressed to wake the hand-held
from a suspend state.
If the Two key wakeup option is checked, the operator will need to press two keys –
[FN/BLUE][ENTER] – to switch the hand-held on.
