Chapter 5: Settings
Suspend Threshold
Built-In Devices Power Status
This section of the dialog box allows you to enable (provide power) to the device(s)
installed in your unit. Keep in mind that the content of this screen varies depending
on the devices installed in your hand-held. Tapping on OK activates your selections.

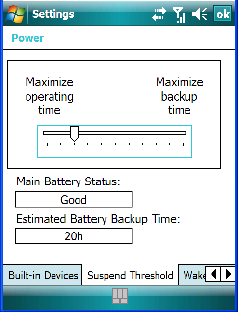

5.23.5 Suspend Threshold
This applet allows you to determine the amount of battery power that you want to
reserve in the main battery to protect the data stored in the WORKABOUT PRO.
5.23.5.1 Suspend Threshold And Estimated Battery Backup
The Estimated Battery Backup is the amount of battery power that is reserved to
protect data until a charged battery can be installed in the hand-held. When the main
battery capacity is depleted up to the Estimated Battery Backup reserve specified in
the Suspend Threshold tab, the hand-held shuts off automatically and uses the
reserve power to preserve the data stored on the WORKABOUT PRO. Once the
hand-held shuts down, it cannot be switched on until a fresh battery is installed, or
the unit is inserted in a docking station or cradle.
•Slide the Suspend Threshold button to the right to increase the battery
capacity reserved for backup purposes. Data will be preserved to a
maximum of 124 hours.
•Slide the Suspend Threshold button to the left to decrease the power
reserved for backup purposes; this increases the hand-held’s operating time
– the amount of time the hand-held will operate before shutting down – but
reduces the power reserved for backup purposes to a minimum of 24 hours.
