Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE User Manual 285
Chapter 9: Peripheral Devices & Accessories
Charging A Battery Installed In The WORKABOUT PRO
Important: This docking station can only be used to charge Psion Teklogix
approved Lithium-Ion batteries
–specifically model numbers
WA3000 and WA3002.
9.4.1 Charging A Battery Installed In The WORKABOUT PRO
• Insert the DC power cable to the DC IN socket on the desktop docking
station. Plug the pronged end of the cable into an AC outlet.
• Slide the hand-held into the docking station, making certain that the LIF
(Low Insertion Force) port on base of the WORKABOUT is securely
seated on the docking station connector pins. An icon is displayed in the
taskbar of the hand-held indicating that the unit is properly installed in the
station
– This icon is only displayed when the unit is switched on.
The LED on the WORKABOUT PRO lights up indicating that the unit has external
power and battery charging will begin. It is safe to leave the unit in the desktop
docking station while it is not in use
–the battery will not be overcharged.
9.4.2 Charging A Spare Battery
• Insert the battery in the spare battery charge well at the back of the docking
station, aligning the contacts on the battery with the contacts in the spare
battery charge well.
9.4.3 Battery Charge Duration
A fully discharged battery can take up to 5 hours to charge. The desktop docking
station stops applying power to the battery when it is fully charged
–there is no risk
of overcharge if the battery remains in the charge well.
9.4.4 Charger LED Indicators

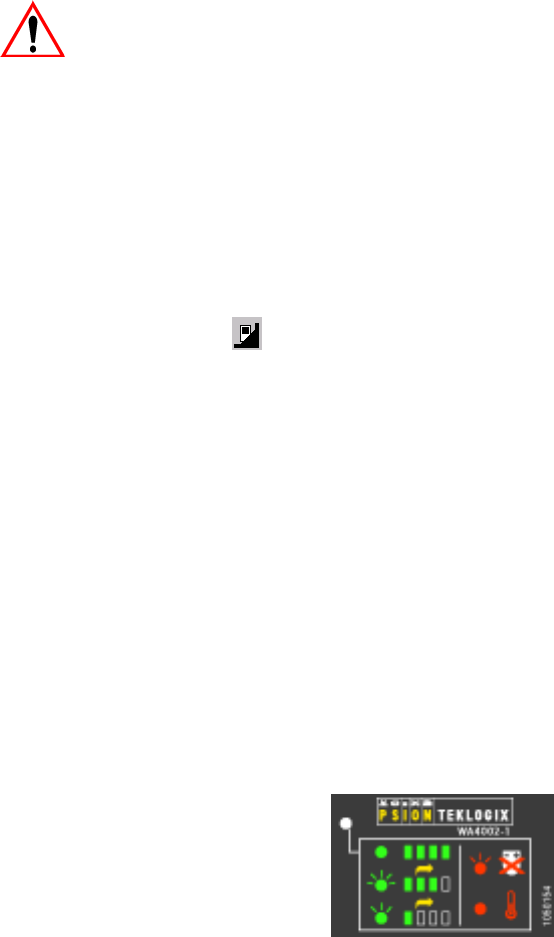

Figure 9.11 Battery Charge Status
