Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE User Manual 263
Chapter 8: Expansion Modules
Shutting Off Power
8.1.3 Shutting Off Power
Before installing a module or card in the WORKABOUT PRO, all power sources
must be turned off.
• Remove the battery. If your unit is using AC power, disconnect it.
• Remove the stylus from end-cap.
• Remove the end-cap, and slide the SW1401 switch to the left to shut off
internal battery power.

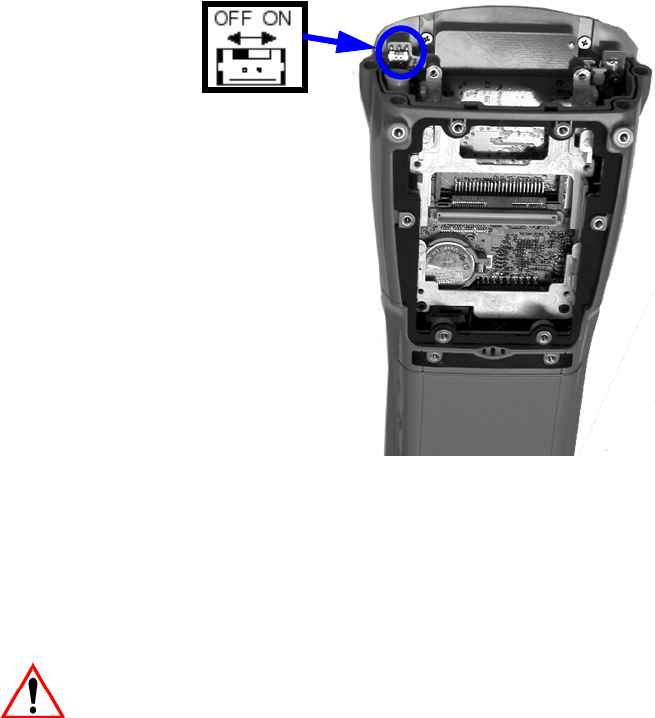

Figure 8.3 SW1401 Power Switch
8.1.4 Installing The PC Card Expansion Module
The PC Card Expansion Module (model WA9001) is designed to work with various
PC Cards that extend beyond the PC Card frame, such as radio cards with antennas.
The kit consists of a PCMCIA Card, screws, and a mechanical stop that will fit Psion
Teklogix CF cards for the WORKABOUT PRO and most other PC Card types.
Important: The WORKABOUT PRO does not support hot swapping. All
power sources must be turned off before inserting any card or
module in the unit.
SW1401 Power Switch
