Chapter 6: Settings
Imager
132
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE User Manual
6.20.3 Imager

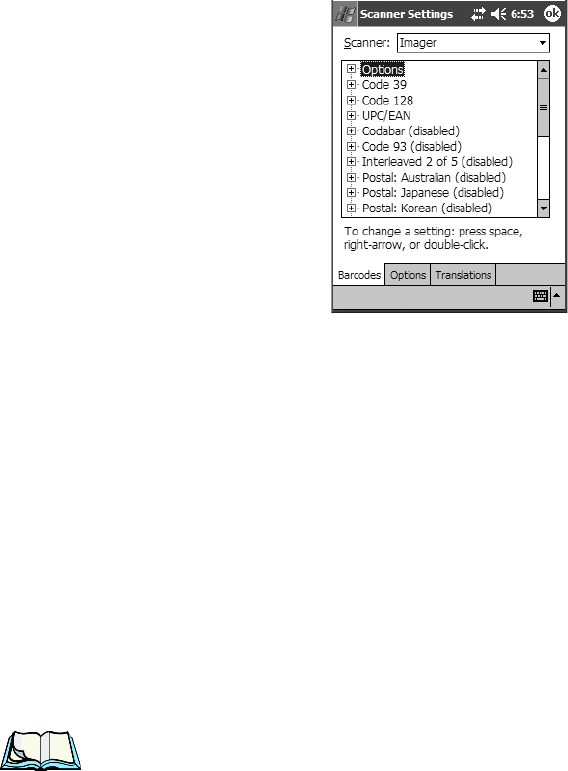

Figure 6.47 Imager
• Tap on the Scanner drop-down menu, and choose Imager.
6.20.3.1 Options – Imager
TekImager Enabled
Setting this option to on enables the imager installed in your hand-held.
Dot Time (msec)
The value selected for “Dot Time (msec)” determines (in milliseconds) how long
the targeting dot remains on before the scanner switches to a normal scan sweep.
When you double-tap on this parameter, a dialog box is displayed in which you can
enter a value of between 0 and 3000. A value of 0 disables the target dot.
Center Bar Code Only
Note: This parameter must be disabled when reading Composite bar codes.
When more than one bar code is visible in a single snap shot, this parameter allows
you to specify that only the centre image within the imager framing marker will be
read. When this parameter is set to on, the target dot is pointed at the centre image
and only that image is returned.
