WORKABOUT PRO Hand-Held Computer With Windows Mobile 5.0 User Manual 25
Chapter 3: Getting To Know The WORKABOUT PRO
Features of the WORKABOUT PRO S
3.2 Features of the WORKABOUT PRO S

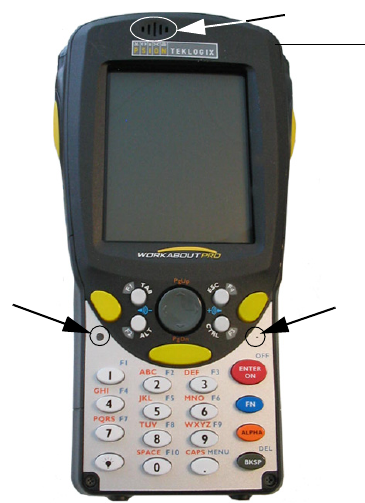

Figure 3.3 Front Of WORKABOUT PRO S
3.3 The Batteries
The WORKABOUT PRO C hand-held can operate with a Standard Lithium Ion
battery pack, a High Capacity Lithium Ion battery pack or three AA alkaline batteries.
The WORKABOUT PRO S can operate with either a Standard or a High Capacity
Lithium Ion battery pack; it does not support AA alkaline batteries.
If you are using a Lithium Ion battery pack, preparing the hand-held unit for
operation requires that the battery pack be charged before it is installed in the unit.
To maintain data during a battery swap, the WORKABOUT PRO is also equipped
with a coin backup battery. Refer to “The Backup Battery” on page 16 and “Battery
Swap Time” on page 27 for additional information.
LED
(Light Emitting Diode)
Microphone
Sound Port
Stylus
(pointing tool)
