Chapter 9: Peripheral Devices & Accessories
Charging A Battery Installed In The WORKABOUT PRO
308 WORKABOUT PRO Hand-Held Computer With Windows Mobile 5.0 User Manual
The desktop docking station is designed to charge the battery installed in the
WORKABOUT PRO along with a spare battery pack.

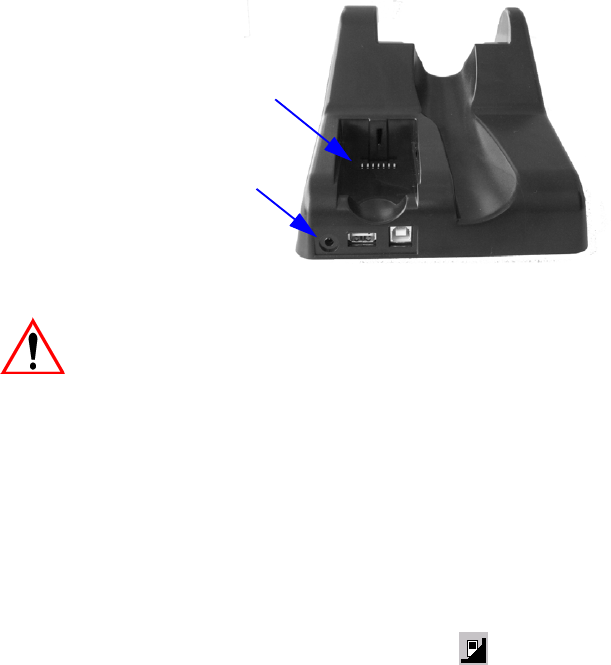

Figure 9.6 Back Of Desktop Docking Station
Important: This docking station can only be used to charge Psion Teklogix
approved Lithium-Ion batteries
–specifically model numbers
WA3000-G1 and WA3006.
9.4.1 Charging A Battery Installed In The WORKABOUT PRO
• Insert the DC power cable to the DC IN socket on the desktop docking
station. Plug the pronged end of the cable into an AC outlet.
• Slide the hand-held into the docking station, making certain that the LIF
(Low Insertion Force) port on base of the WORKABOUT is securely
seated on the docking station connector pins. An icon is displayed briefly in
the navigation bar at the top of the hand-held screen indicating that the unit
is properly installed in the station
– . This icon is only displayed when
the unit is switched on.
The LED on the WORKABOUT PRO lights up indicating that the unit has external
power and battery charging will begin. It is safe to leave the unit in the desktop
docking station while it is not in use
–the battery will not be overcharged.
9.4.2 Charging A Spare Battery
• Insert the battery in the spare battery charge well at the back of the docking
station, aligning the contacts on the battery with the contacts in the spare
battery charge well.
Spare Battery
Charge Well
DC IN Socket
