Chapter 6: Settings
Modem Connection Setup
228 WORKABOUT PRO Hand-Held Computer With Windows Mobile 5.0 User Manual
Changes to Advanced settings are only required in the following instances:
To change the baud rate settings, dialing string commands or credit
card options.
To change port settings.
To enter TCP/IP settings because the server to which you are connecting
does not dynamically assign addresses.
9. Tap on the Finish button.
If you need to edit the Advanced settings, refer to “Advanced Modem Set-
tings” in the next section.

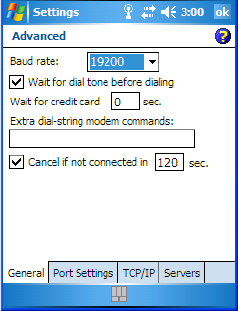

6.30.1.1 Advanced Modem Settings
General Tab
Baud Rate
•In the Baud rate dropdown menu, choose a new baud rate. Check your
modem documentation for the appropriate baud rate.
Wait For Dial Tone Before Dialing
• To speed connection when using a modem, disable this option–tap in the
checkbox to the left of this option.
Wait For Credit Card
• If you’re paying for calls with a credit card, enter the number of seconds
you want the WORKABOUT PRO to wait for a credit card prompt.
