WORKABOUT PRO Hand-Held Computer With Windows Mobile 5.0 User Manual 141
Chapter 6: Settings
Scanner Settings
6.25 Scanner Settings
The Teklogix Scanners icon in the Settings menu provides access to dialog boxes
in which you can tailor bar code options and choose the bar codes your scanner
will recognize.

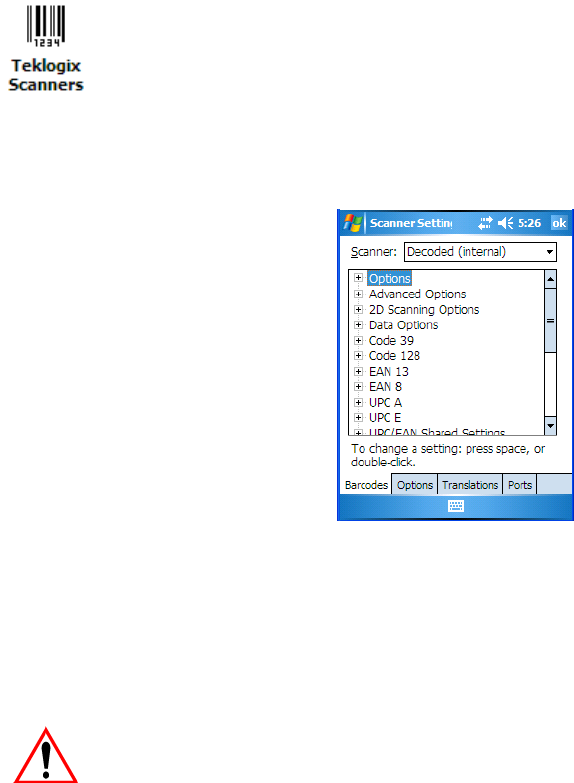

• Tap on Start>Settings, and then tap on the System tab followed by the
Teklogix Scanner icon.
Scanner Menu
The dropdown menu to the right of the Scanner option allows you to choose from
one of the following scanner types used with your hand-held: Decoded (internal),
Decoded (HHP), Decoded (Intermec ISCP) and Imager.
The symbologies listed change to reflect the scanner you choose and the bar codes it
supports.
Important: To improve the decode speed and performance, enable only those
codes that are required by the application.
Keep in mind that some bar code types are only available when an internal imaging
scanner is installed. All internal scanners can be configured using the Barcode
dialog boxes.
