User manual
Table Of Contents
- WORKABOUT PRO Hand-Held Computer With Windows Mobile 5.0
- TABLE OF CONTENTS
- Program License Agreements
- Approvals And Safety Summary
- Introduction 1
- Basic Checkout 2
- Getting To Know The WORKABOUT PRO 3
- 3.1 Features Of The WORKABOUT PRO C
- 3.2 Features of the WORKABOUT PRO S
- 3.3 The Batteries
- 3.4 Switching The Hand-Held On And Off
- 3.5 The Keyboards
- 3.6 The Display
- 3.7 Indicators
- 3.8 Monitoring The Battery And Maximizing Run Time
- 3.9 Uploading Data In A Docking Station
- 3.10 Bluetooth Radio
- 3.11 The SD/MMC Card-Adding Memory
- 3.12 General Maintenance
- Working With Windows Mobile 5.0 4
- 4.1 Navigating In Windows Mobile 5.0 And Applications
- 4.2 Windows Mobile 5.0 Desktop-Today Screen
- 4.3 Start Menu
- 4.4 Managing Files And Folders
- 4.5 Using Menus
- 4.6 The Softkey Bar
- 4.7 Programs-Using Applications
- 4.8 Settings
- 4.9 Help
- 4.10 Entering Text
- Connecting To A LAN With 802.11 5
- Settings 6
- 6.1 Personal Settings
- 6.2 App Launch Keys
- 6.3 Buttons Icon
- 6.4 Input
- 6.5 Lock
- 6.6 Menus
- 6.7 Owner Information
- 6.8 Sound & Notifications
- 6.9 Today Screen
- 6.10 System Tab Settings
- 6.11 About
- 6.12 About Device
- 6.13 Backlight
- 6.14 Certificates
- 6.15 Clock & Alarms
- 6.16 COM Port Manager
- 6.17 Error Reporting
- 6.18 GPS - Global Positioning System
- 6.19 Manage Triggers
- 6.20 Memory
- 6.21 Power Icon
- 6.22 Regional Settings
- 6.23 Remove Programs
- 6.24 Screen Icon
- 6.25 Scanner Settings
- 6.25.1 Decoded (Internal) Scanners
- 6.25.1.1 Options - Decoded (Internal) Scanner
- 6.25.1.2 Decoded (Internal) Advanced Options
- 6.25.1.3 Decoded (Internal) 2D Scanning Options
- 6.25.1.4 Data Options - Decoded (Internal) Scanner
- 6.25.1.5 Code 39
- 6.25.1.6 Code 128
- 6.25.1.7 EAN 13
- 6.25.1.8 EAN 8
- 6.25.1.9 UPC A
- 6.25.1.10 UPC E
- 6.25.1.11 UPC/EAN Shared Settings
- 6.25.1.12 Code 93
- 6.25.1.13 Codabar
- 6.25.1.14 MSI Plessey
- 6.25.1.15 Interleaved 2 of 5
- 6.25.1.16 Discrete 2 of 5
- 6.25.1.17 RSS Code
- 6.25.1.18 Composite
- 6.25.1.19 PDF-417
- 6.25.1.20 Micro PDF-417
- 6.25.2 Decoded (HHP)
- 6.25.2.1 Options - Decoded (HHP) Scanner
- 6.25.2.2 Decoded (HHP) Advanced Options
- 6.25.2.3 Code 39
- 6.25.2.4 Trioptic Code
- 6.25.2.5 Code 128
- 6.25.2.6 EAN 13 Settings
- 6.25.2.7 EAN 8
- 6.25.2.8 UPC A Settings
- 6.25.2.9 UPC E Settings
- 6.25.2.10 UPC/EAN Shared Settings
- 6.25.2.11 Code 93
- 6.25.2.12 Codabar
- 6.25.2.13 MSI Plessey
- 6.25.2.14 Code 11
- 6.25.2.15 Interleaved 2 of 5
- 6.25.2.16 Matrix 2 of 5
- 6.25.2.17 IATA 2 of 5
- 6.25.2.18 Discrete 2 of 5
- 6.25.2.19 Telepen
- 6.25.2.20 RSS Code (Reduced Space Symbology)
- 6.25.2.21 PosiCode (Reduced Space Symbology)
- 6.25.2.22 Composite
- 6.25.2.23 TLC-39
- 6.25.2.24 PDF-417
- 6.25.2.25 Micro PDF-417
- 6.25.2.26 Code 16K
- 6.25.2.27 Code 49
- 6.25.2.28 Codablock
- 6.25.2.29 2D Data Matrix
- 6.25.2.30 2D QR Code
- 6.25.2.31 2D Maxicode
- 6.25.2.32 2D Aztec
- 6.25.2.33 Postal: PlaNET
- 6.25.2.34 Postal: PostNET
- 6.25.2.35 Postal: Australian
- 6.25.2.36 Postal: Canadian
- 6.25.2.37 Postal: China
- 6.25.2.38 Postal: Japanese
- 6.25.2.39 Postal: Kix
- 6.25.2.40 Postal: Korean
- 6.25.2.41 Postal: Royal
- 6.25.3 Decoded (Intermec ISCP)
- 6.25.3.1 Options - Decoded (Intermec ISCP) Scanner
- 6.25.3.2 Advanced Options - Decoded (Intermec ISCP) Scanner
- 6.25.3.3 Code 39
- 6.25.3.4 Code 128
- 6.25.3.5 EAN 13 Settings
- 6.25.3.6 EAN 8
- 6.25.3.7 UPC A Settings
- 6.25.3.8 UPC E Settings
- 6.25.3.9 UPC/EAN Shared Settings
- 6.25.3.10 Code 93
- 6.25.3.11 Codabar
- 6.25.3.12 MSI Plessey
- 6.25.3.13 Code 11
- 6.25.3.14 Interleaved 2 of 5
- 6.25.3.15 Matrix 2 of 5
- 6.25.3.16 Discrete 2 of 5
- 6.25.3.17 Telepen
- 6.25.3.18 RSS Code (Reduced Space Symbology)
- 6.25.3.19 PDF-417
- 6.25.3.20 Micro PDF-417
- 6.25.3.21 Codablock
- 6.25.4 Imager
- 6.25.4.1 Options - Imager
- 6.25.4.2 Advanced Options - Imager
- 6.25.4.3 Code 39 Settings
- 6.25.4.4 Code 128 Settings
- 6.25.4.5 EAN 13
- 6.25.4.6 EAN 8
- 6.25.4.7 UPC A
- 6.25.4.8 UPC E
- 6.25.4.9 Code 93
- 6.25.4.10 Codabar
- 6.25.4.11 Interleaved 2 of 5
- 6.25.4.12 RSS Code (Reduced Space Symbology)
- 6.25.4.13 Composite
- 6.25.4.14 PDF-417
- 6.25.4.15 Micro PDF-417
- 6.25.4.16 2D Data Matrix
- 6.25.4.17 2D QR Code
- 6.25.4.18 2D Maxicode
- 6.25.4.19 2D Aztec
- 6.25.4.20 Postal: PlaNET
- 6.25.4.21 Postal: PostNET
- 6.25.4.22 Postal: Australian
- 6.25.4.23 Postal: Japanese
- 6.25.4.24 Postal: Korean
- 6.25.4.25 Postal: Royal
- 6.25.5 Options Tab
- 6.25.6 Translations Tab
- 6.25.7 Ports
- 6.25.1 Decoded (Internal) Scanners
- 6.26 Total Recall
- 6.27 Connections Tab
- 6.28 Beam
- 6.29 Bluetooth Setup
- 6.30 Connections - Connecting To The Internet
- 6.31 Wireless Power Icon
- 6.32 Wireless Statistics
- 6.33 Wireless WAN
- Programs 7
- 7.1 Games
- 7.2 ActiveSync®
- 7.3 Calculator
- 7.4 Demo Imager
- 7.5 Demo Scanner
- 7.6 Download Agent
- 7.7 Excel Mobile
- 7.8 File Explorer
- 7.9 Internet Sharing
- 7.10 Notes
- 7.11 Pictures & Videos
- 7.12 Pocket MSN
- 7.13 Summit Client Utility
- 7.14 Search
- 7.15 Messaging-The Inbox
- 7.16 Tasks
- 7.17 Terminal Services Client
- 7.18 Word Mobile
- Expansion Modules 8
- Peripheral Devices & Accessories 9
- 9.1 Carrying Accessories
- 9.2 The Batteries
- 9.3 Chargers And Docking Stations
- 9.4 Desktop Docking Station
- 9.4.1 Charging A Battery Installed In The WORKABOUT PRO
- 9.4.2 Charging A Spare Battery
- 9.4.3 Battery Charge Duration
- 9.4.4 Charger LED Indicators
- 9.4.5 Troubleshooting The Charging Operation Of The Dock
- 9.4.6 Desktop Docking Station Ports
- 9.4.7 Linking A WORKABOUT PRO To A PC
- 9.4.8 Linking A WORKABOUT PRO To An Ethernet Network
- 9.4.9 Troubleshooting The Docking Station Operations
- 9.5 Single Battery Charger-Model #WA3001-G1
- 9.6 Quad Battery Charger-Model #WA3004-G1
- 9.7 Quad Docking Station-Model #WA4004-G1
- 9.8 AC Wall Adaptor And Tether Cable
- 9.9 Automotive Power Adaptor
- 9.10 The Vehicle Cradle
- 9.11 Bluetooth Peripherals
- Specifications 10
- 10.1 Hand-Held Computer Specifications
- 10.2 Radio Specifications
- 10.3 Scanner Specifications
- 10.4 Battery Test Specifications
- Support Services And Worldwide Offices
- Port Pinouts
- Index

WORKABOUT PRO Hand-Held Computer With Windows Mobile 5.0 User Manual 117
Chapter 6: Settings
Lock
6.5 Lock
To protect the data stored in your WORKBOUT PRO, you can assign a password
that must be entered each time the unit is switched on.

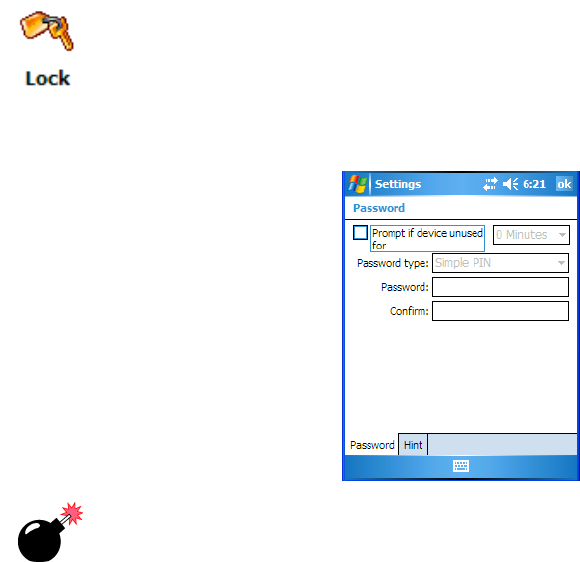

• Tap on Start>Settings, and then tap on the Lock icon.
Warning: It is critical that you store your password in a safe place. If you
forget it, a ‘clean start’ must be performed. A clean start returns
the hand-held to factory settings. Only the data stored in a CF or
SD memory card are preserved.
• Tap in the checkbox next to Prompt if device unused to turn on password
protection.
• Choose the amount of time that the unit can remain idle before you are
prompted to enter your password.
•In the Password type dropdown menu, choose the type of password you
prefer to assign. Simple PIN allows you to enter a minimum of four numeric
characters. Strong alphanumeric requires a minimum of 7 characters and
must contain at least three of the following: uppercase and lowercase alpha
characters, numbers and punctuation.
• Tap on the Hint tab to enter a word or phrase that will remind you of your
password. The WORKABOUT PRO will display the hint after the wrong
password is entered five times.
