User manual
Table Of Contents
- WORKABOUT PRO Hand-Held Computer With Windows Mobile 5.0
- TABLE OF CONTENTS
- Program License Agreements
- Approvals And Safety Summary
- Introduction 1
- Basic Checkout 2
- Getting To Know The WORKABOUT PRO 3
- 3.1 Features Of The WORKABOUT PRO C
- 3.2 Features of the WORKABOUT PRO S
- 3.3 The Batteries
- 3.4 Switching The Hand-Held On And Off
- 3.5 The Keyboards
- 3.6 The Display
- 3.7 Indicators
- 3.8 Monitoring The Battery And Maximizing Run Time
- 3.9 Uploading Data In A Docking Station
- 3.10 Bluetooth Radio
- 3.11 The SD/MMC Card-Adding Memory
- 3.12 General Maintenance
- Working With Windows Mobile 5.0 4
- 4.1 Navigating In Windows Mobile 5.0 And Applications
- 4.2 Windows Mobile 5.0 Desktop-Today Screen
- 4.3 Start Menu
- 4.4 Managing Files And Folders
- 4.5 Using Menus
- 4.6 The Softkey Bar
- 4.7 Programs-Using Applications
- 4.8 Settings
- 4.9 Help
- 4.10 Entering Text
- Connecting To A LAN With 802.11 5
- Settings 6
- 6.1 Personal Settings
- 6.2 App Launch Keys
- 6.3 Buttons Icon
- 6.4 Input
- 6.5 Lock
- 6.6 Menus
- 6.7 Owner Information
- 6.8 Sound & Notifications
- 6.9 Today Screen
- 6.10 System Tab Settings
- 6.11 About
- 6.12 About Device
- 6.13 Backlight
- 6.14 Certificates
- 6.15 Clock & Alarms
- 6.16 COM Port Manager
- 6.17 Error Reporting
- 6.18 GPS - Global Positioning System
- 6.19 Manage Triggers
- 6.20 Memory
- 6.21 Power Icon
- 6.22 Regional Settings
- 6.23 Remove Programs
- 6.24 Screen Icon
- 6.25 Scanner Settings
- 6.25.1 Decoded (Internal) Scanners
- 6.25.1.1 Options - Decoded (Internal) Scanner
- 6.25.1.2 Decoded (Internal) Advanced Options
- 6.25.1.3 Decoded (Internal) 2D Scanning Options
- 6.25.1.4 Data Options - Decoded (Internal) Scanner
- 6.25.1.5 Code 39
- 6.25.1.6 Code 128
- 6.25.1.7 EAN 13
- 6.25.1.8 EAN 8
- 6.25.1.9 UPC A
- 6.25.1.10 UPC E
- 6.25.1.11 UPC/EAN Shared Settings
- 6.25.1.12 Code 93
- 6.25.1.13 Codabar
- 6.25.1.14 MSI Plessey
- 6.25.1.15 Interleaved 2 of 5
- 6.25.1.16 Discrete 2 of 5
- 6.25.1.17 RSS Code
- 6.25.1.18 Composite
- 6.25.1.19 PDF-417
- 6.25.1.20 Micro PDF-417
- 6.25.2 Decoded (HHP)
- 6.25.2.1 Options - Decoded (HHP) Scanner
- 6.25.2.2 Decoded (HHP) Advanced Options
- 6.25.2.3 Code 39
- 6.25.2.4 Trioptic Code
- 6.25.2.5 Code 128
- 6.25.2.6 EAN 13 Settings
- 6.25.2.7 EAN 8
- 6.25.2.8 UPC A Settings
- 6.25.2.9 UPC E Settings
- 6.25.2.10 UPC/EAN Shared Settings
- 6.25.2.11 Code 93
- 6.25.2.12 Codabar
- 6.25.2.13 MSI Plessey
- 6.25.2.14 Code 11
- 6.25.2.15 Interleaved 2 of 5
- 6.25.2.16 Matrix 2 of 5
- 6.25.2.17 IATA 2 of 5
- 6.25.2.18 Discrete 2 of 5
- 6.25.2.19 Telepen
- 6.25.2.20 RSS Code (Reduced Space Symbology)
- 6.25.2.21 PosiCode (Reduced Space Symbology)
- 6.25.2.22 Composite
- 6.25.2.23 TLC-39
- 6.25.2.24 PDF-417
- 6.25.2.25 Micro PDF-417
- 6.25.2.26 Code 16K
- 6.25.2.27 Code 49
- 6.25.2.28 Codablock
- 6.25.2.29 2D Data Matrix
- 6.25.2.30 2D QR Code
- 6.25.2.31 2D Maxicode
- 6.25.2.32 2D Aztec
- 6.25.2.33 Postal: PlaNET
- 6.25.2.34 Postal: PostNET
- 6.25.2.35 Postal: Australian
- 6.25.2.36 Postal: Canadian
- 6.25.2.37 Postal: China
- 6.25.2.38 Postal: Japanese
- 6.25.2.39 Postal: Kix
- 6.25.2.40 Postal: Korean
- 6.25.2.41 Postal: Royal
- 6.25.3 Decoded (Intermec ISCP)
- 6.25.3.1 Options - Decoded (Intermec ISCP) Scanner
- 6.25.3.2 Advanced Options - Decoded (Intermec ISCP) Scanner
- 6.25.3.3 Code 39
- 6.25.3.4 Code 128
- 6.25.3.5 EAN 13 Settings
- 6.25.3.6 EAN 8
- 6.25.3.7 UPC A Settings
- 6.25.3.8 UPC E Settings
- 6.25.3.9 UPC/EAN Shared Settings
- 6.25.3.10 Code 93
- 6.25.3.11 Codabar
- 6.25.3.12 MSI Plessey
- 6.25.3.13 Code 11
- 6.25.3.14 Interleaved 2 of 5
- 6.25.3.15 Matrix 2 of 5
- 6.25.3.16 Discrete 2 of 5
- 6.25.3.17 Telepen
- 6.25.3.18 RSS Code (Reduced Space Symbology)
- 6.25.3.19 PDF-417
- 6.25.3.20 Micro PDF-417
- 6.25.3.21 Codablock
- 6.25.4 Imager
- 6.25.4.1 Options - Imager
- 6.25.4.2 Advanced Options - Imager
- 6.25.4.3 Code 39 Settings
- 6.25.4.4 Code 128 Settings
- 6.25.4.5 EAN 13
- 6.25.4.6 EAN 8
- 6.25.4.7 UPC A
- 6.25.4.8 UPC E
- 6.25.4.9 Code 93
- 6.25.4.10 Codabar
- 6.25.4.11 Interleaved 2 of 5
- 6.25.4.12 RSS Code (Reduced Space Symbology)
- 6.25.4.13 Composite
- 6.25.4.14 PDF-417
- 6.25.4.15 Micro PDF-417
- 6.25.4.16 2D Data Matrix
- 6.25.4.17 2D QR Code
- 6.25.4.18 2D Maxicode
- 6.25.4.19 2D Aztec
- 6.25.4.20 Postal: PlaNET
- 6.25.4.21 Postal: PostNET
- 6.25.4.22 Postal: Australian
- 6.25.4.23 Postal: Japanese
- 6.25.4.24 Postal: Korean
- 6.25.4.25 Postal: Royal
- 6.25.5 Options Tab
- 6.25.6 Translations Tab
- 6.25.7 Ports
- 6.25.1 Decoded (Internal) Scanners
- 6.26 Total Recall
- 6.27 Connections Tab
- 6.28 Beam
- 6.29 Bluetooth Setup
- 6.30 Connections - Connecting To The Internet
- 6.31 Wireless Power Icon
- 6.32 Wireless Statistics
- 6.33 Wireless WAN
- Programs 7
- 7.1 Games
- 7.2 ActiveSync®
- 7.3 Calculator
- 7.4 Demo Imager
- 7.5 Demo Scanner
- 7.6 Download Agent
- 7.7 Excel Mobile
- 7.8 File Explorer
- 7.9 Internet Sharing
- 7.10 Notes
- 7.11 Pictures & Videos
- 7.12 Pocket MSN
- 7.13 Summit Client Utility
- 7.14 Search
- 7.15 Messaging-The Inbox
- 7.16 Tasks
- 7.17 Terminal Services Client
- 7.18 Word Mobile
- Expansion Modules 8
- Peripheral Devices & Accessories 9
- 9.1 Carrying Accessories
- 9.2 The Batteries
- 9.3 Chargers And Docking Stations
- 9.4 Desktop Docking Station
- 9.4.1 Charging A Battery Installed In The WORKABOUT PRO
- 9.4.2 Charging A Spare Battery
- 9.4.3 Battery Charge Duration
- 9.4.4 Charger LED Indicators
- 9.4.5 Troubleshooting The Charging Operation Of The Dock
- 9.4.6 Desktop Docking Station Ports
- 9.4.7 Linking A WORKABOUT PRO To A PC
- 9.4.8 Linking A WORKABOUT PRO To An Ethernet Network
- 9.4.9 Troubleshooting The Docking Station Operations
- 9.5 Single Battery Charger-Model #WA3001-G1
- 9.6 Quad Battery Charger-Model #WA3004-G1
- 9.7 Quad Docking Station-Model #WA4004-G1
- 9.8 AC Wall Adaptor And Tether Cable
- 9.9 Automotive Power Adaptor
- 9.10 The Vehicle Cradle
- 9.11 Bluetooth Peripherals
- Specifications 10
- 10.1 Hand-Held Computer Specifications
- 10.2 Radio Specifications
- 10.3 Scanner Specifications
- 10.4 Battery Test Specifications
- Support Services And Worldwide Offices
- Port Pinouts
- Index

Chapter 6: Settings
One Shots
104 WORKABOUT PRO Hand-Held Computer With Windows Mobile 5.0 User Manual
repeats while sliding the bar to the right increases the repeat delay time.
Sliding the Repeat rate bar to the left slows the rate at which a key repeats when
pressed. Sliding the bar to the right increases the key repeat rate.

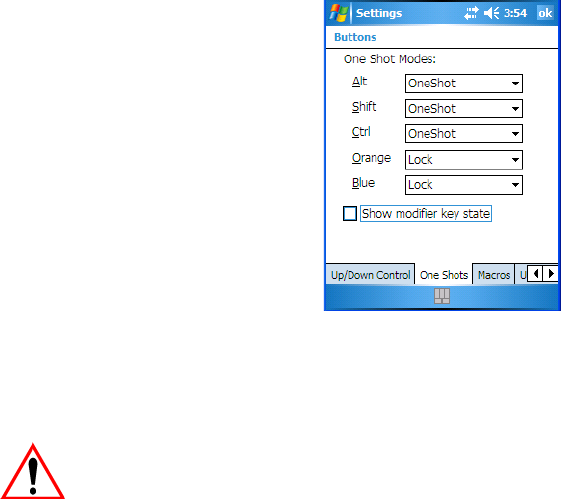

6.3.2 One Shots
The options in this tab allows you to determine how modifier keys on your
WORKABOUT PRO behave. For each modifier key
–[ALT], [SHIFT], [CTRL],
[ORANGE] and [BLUE]
–you have the following options in the dropdown menu:
Lock, OneShot, and OneShot/Lock.
Important: Once you’ve assigned a One Shot mode to a modifier key, you
need to tap on the OK button at the top of the tab to activate
your selection.
Lock
If you choose Lock from the dropdown menu, pressing a modifier key once locks it
‘on’ until you press the modifier key a second time to unlock or turn it off.
OneShot
If you choose OneShot, the modifier key remains active only until the next key
is pressed.
