Using Web Interface to Manage the Access Point AP-800 User Guide
Monitoring the Device
89

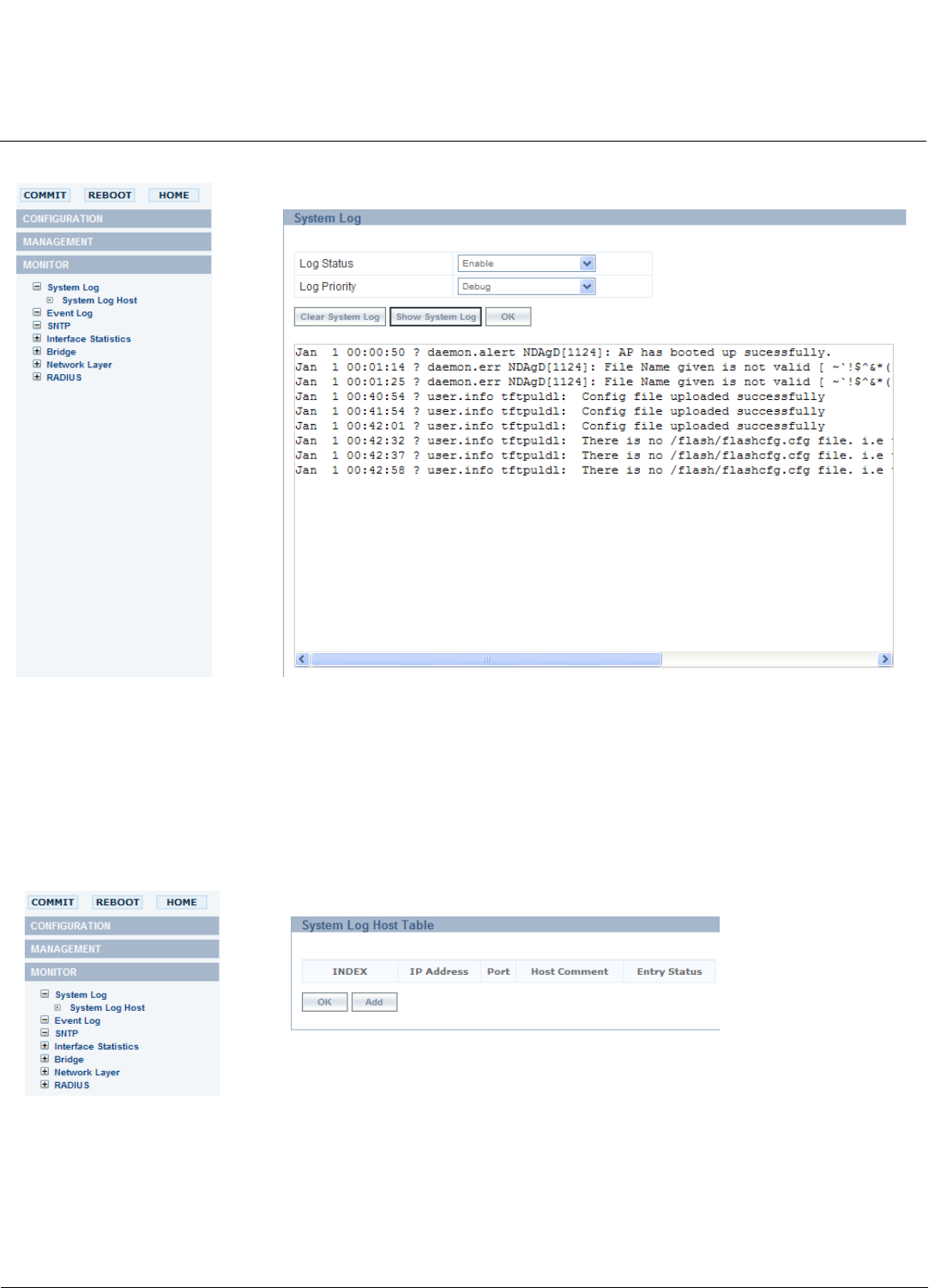

Figure 6-53 System Log Information
System Log Host
Using the System Log Host Table you can configure Syslog event Notifications. Configure the following information:
1. Navigate to Monitor > System Log > System Log Host. This displays the System Log Host Table page.
2. Click Add button.
Figure 6-54 System Log Host Table Page
• IP Address: Enter the IP Address for the management host.
• Host Port: This field is for host port number and it displays the port number (514) assigned for system logging.
• Comment: Enter an optional comment such as the host name.
