Using Web Interface to Manage the Access Point AP-800 User Guide
Managing the Device
84

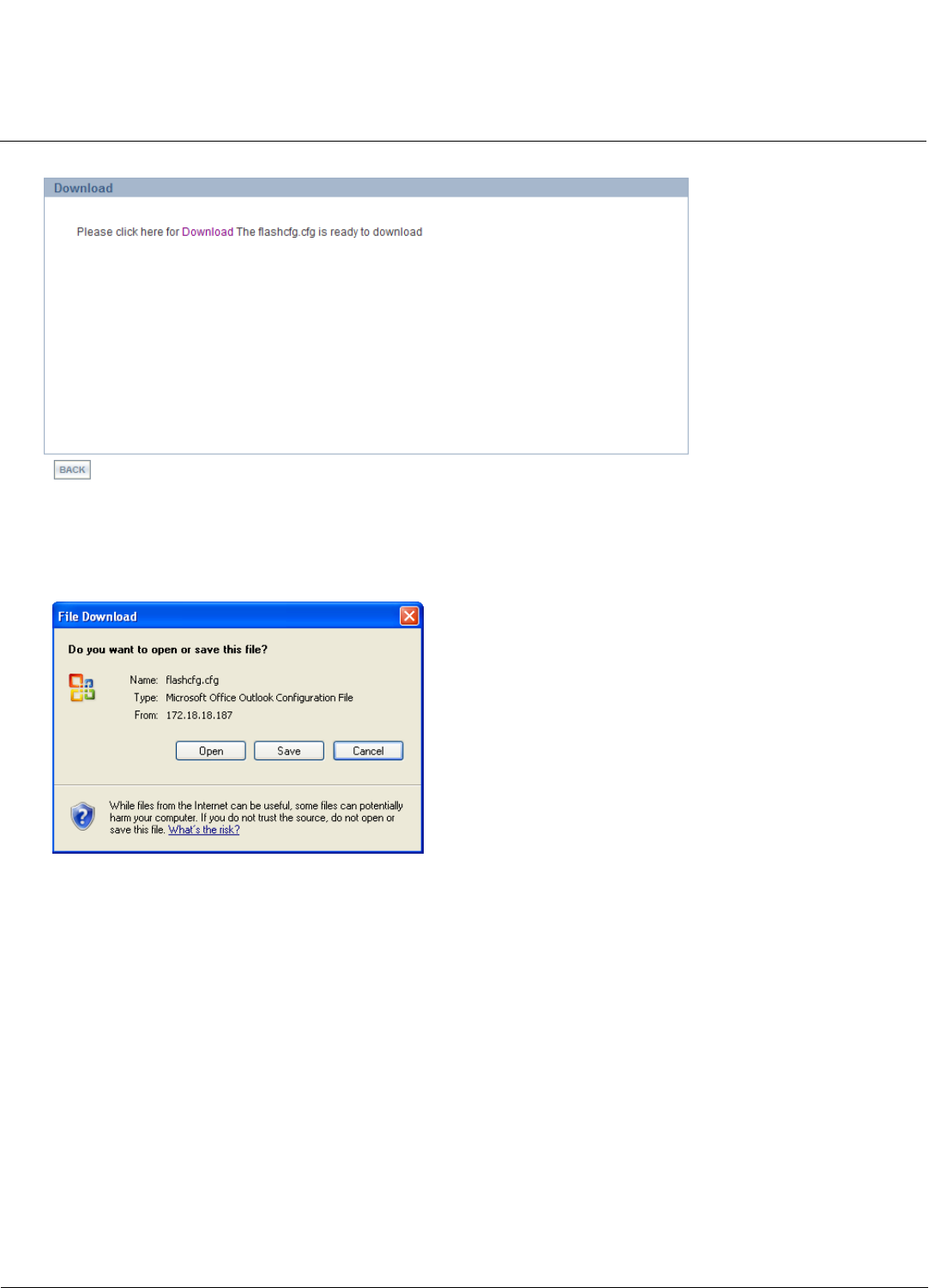

Figure 6-45 Download Page
4. File Download window pops up. Click Save button to save the file.
Figure 6-46 File Download Page
5. Select an appropriate filename and location and click Save.
Retrieve From Device Using TFTP
Use the TFTP Upload to upload files from the AP to the TFTP server. The TFTP server must be running and configured
to point to the directory to which you want to copy the uploaded file. We suggest you assign the file a meaningful name.
If you don’t have a TFTP server installed on your system, install the TFTP server from the installation CD. You can either
install the TFTP server from the CD Wizard or run OEM-TFTP-Server.exe found in the CD’s Xtras/SolarWinds
sub-directory.
In the TFTP Upload page enter the following TFTP information as described below:
