Using Web Interface to Manage the Access Point AP-800 User Guide
Configuring the Device
78
Figure 6-32 Advanced Filter Table - Edit Entries
TCP/UDP Port Filtering
1. Navigate to Configuration > Filtering > TCPUDP Filtering.
2. In the TCPUDP Port Filter page, select the Filter Control as Enable in the TCP/UDP Filter page.

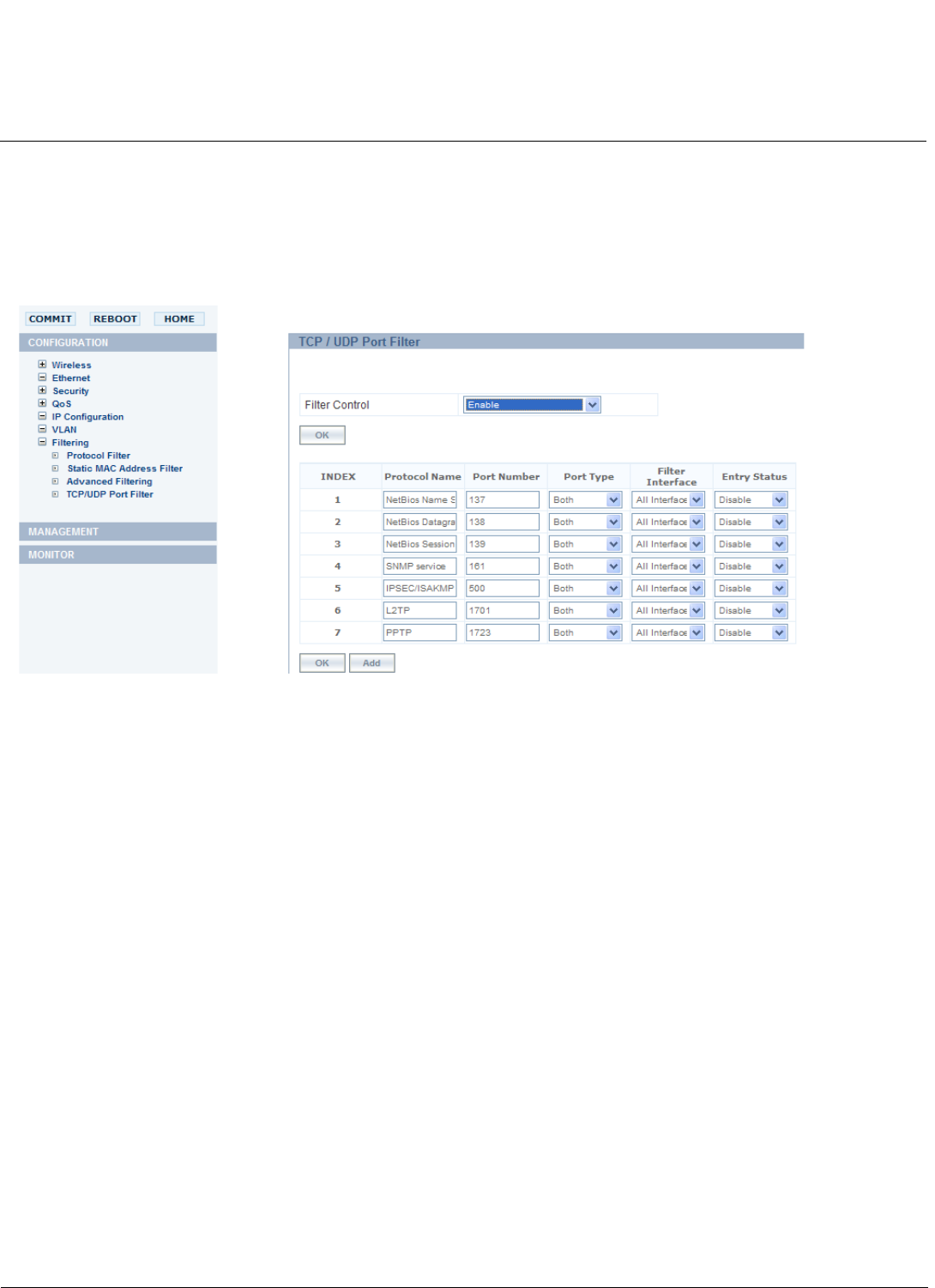

Figure 6-33 TCP/UDP Filter Page
3. Click Add under the TCP/UDP Filter table.
4. In the TCP/UDP Port Filter Add Row page, enter the Protocol Name to filter.
5. Set the destination Port Number (a value between 0 and 65535) to filter. See the IANA web site at
http://www.iana.org/assignments/port-numbers for a list of assigned port numbers and their descriptions.
6. Set the Port Type for the protocol: TCP, UDP, or both (TCP/UDP).
7. Set the Interface to filter:
• Only Ethernet
•Only Wireless
•Both
8. Set the Table Status:
• Enable
• Disable
