Using Web Interface to Manage the Access Point AP-800 User Guide
Configuring the Device
71

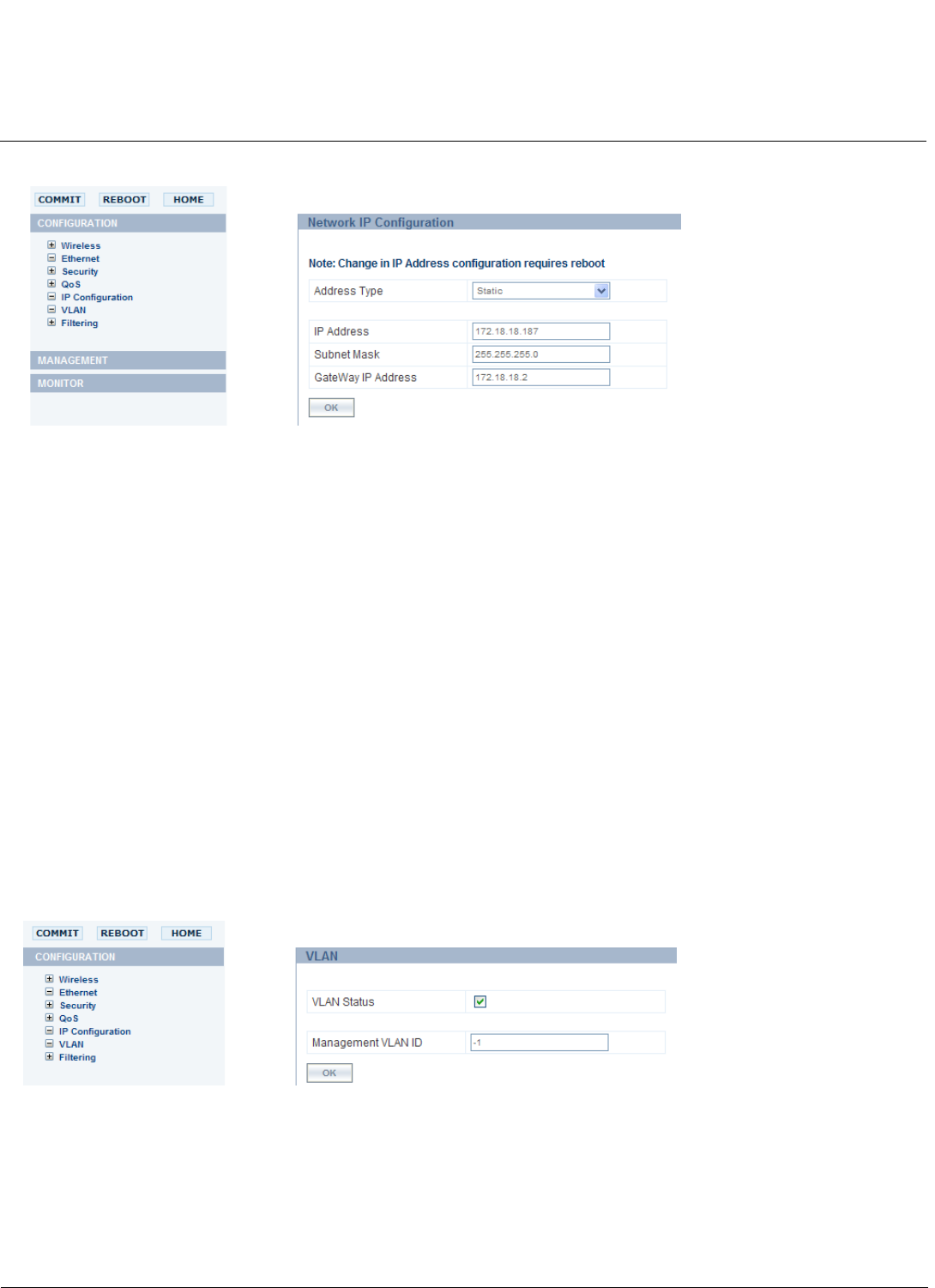

Figure 6-24 Network IP Config
• Address Type: Select the Address Type Static or Dynamic from the drop-down list.
– If you select the Address Type as Static, then you need to configure the following parameters and click OK:
— IP Address
— Subnet Mask
— Gateway IP Address
– If you select the Address Type as Dynamic, then the following parameters will remain as read only:
— IP Address
— Subnet Mask
— Gateway IP Address
VLAN
VLANs segment network traffic into workgroups, which enable you to limit broadcast and multicast traffic. Workgroups
enable clients from different VLANs to access different resources using the same network infrastructure. Clients using the
same physical network are limited to those resources available to their workgroup.
The AP can segment users into a maximum of 4 different workgroups per radio. Therefore total of 8 different
workgroups/VLANs for dual radio.
Figure 6-25 VLAN Page
Management access to the AP can easily be secured by making management stations and hosts and the AP itself
members of a common VLAN. Simply configure a non-zero management VLAN ID and enable VLAN to restrict
management of the AP to members of the same VLAN.
