Using Web Interface to Manage the Access Point AP-800 User Guide
Configuring the Device
70
QoS Policy
Perform the following procedure to enable QoS and QoS Policies:

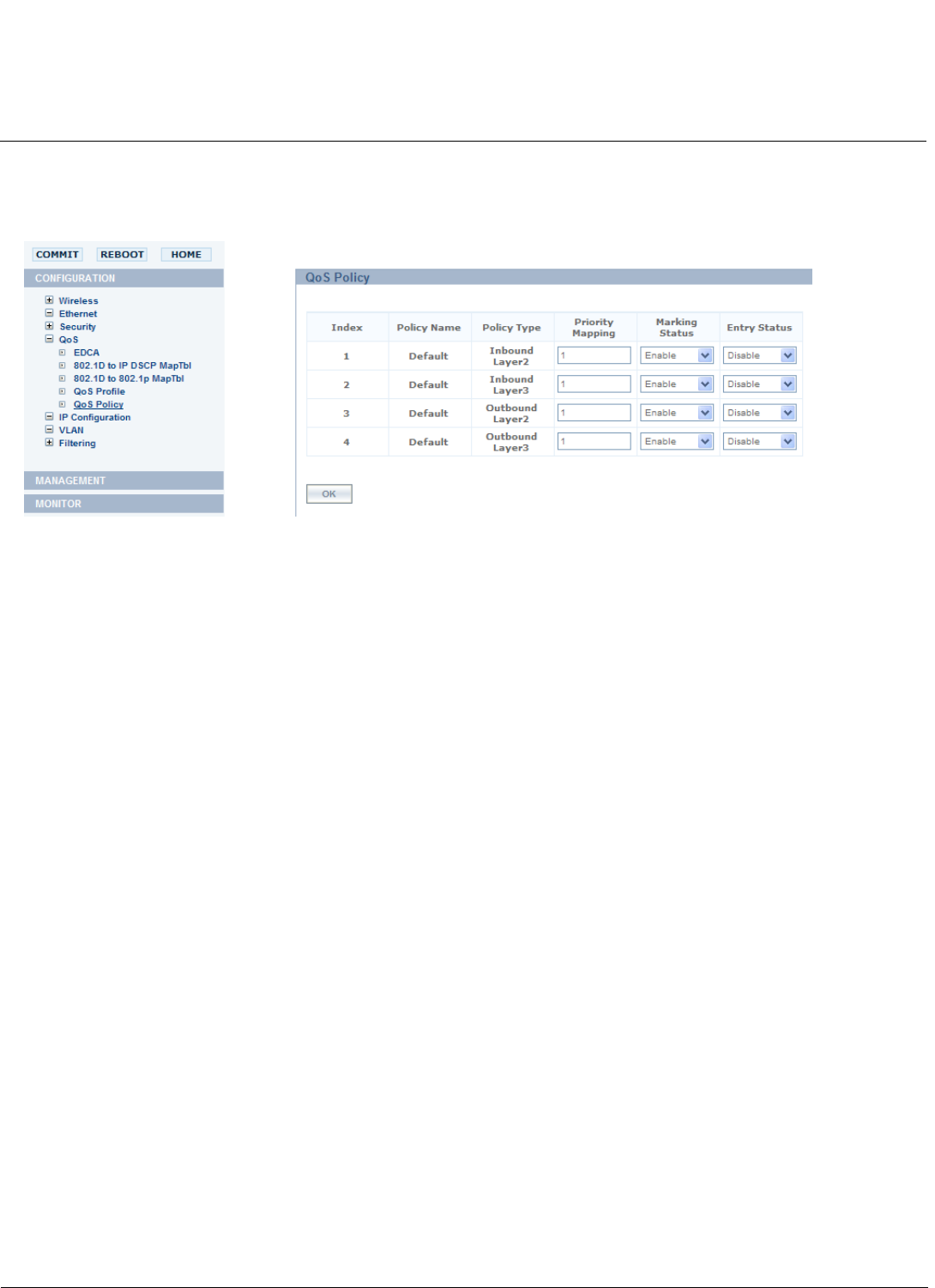

Figure 6-23 QoS Policy page
1. Navigate to Configuration > QoS > Policy
2. Enter the Policy Name. By default, the policy name is provided.
3. By default the Policy Type is displayed. Following Policy Types are available:
• Inbound Layer 2: inbound traffic direction, Layer 2 traffic type
• Outbound Layer 2: Outbound traffic direction, Layer 2 traffic type
• Inbound Layer 3: Inbound traffic direction, Layer 3 traffic type
• Outbound Layer 3: Outbound traffic direction, Layer 3 traffic type
4. Enter the Priority Mapping. For layer 2 policies, an index from the DOT1D to DOT1P mapping table should be
specified. For layer 3 policies, an index from the DOT1D to IP DSCP mapping table should be specified.
5. Select the QoS Marking Status.
6. Select the Entry Status for QoS table. This represents the entry status for the corresponding row in the table.
NOTE: If you want to customize a particular Policy Type, then the Entry Status for that Policy Type should be
Enabled.
7. Click OK.
IP Configuration
The Network IP Config is used to configure the internet (TCP/IP) settings for the Access Point.
These settings can be either entered manually static IP address, subnet mask, and gateway IP address or obtained
automatically (dynamic).
Network IP Config
You can configure and view the following parameters within the Network IP Config page:
NOTE: You must reboot AP in order for any changes to the IP parameters to take effect.
1. Navigate to Configuration > Network > Network IP Config. The Network IP Configuration page displays.
Configure the following parameters:
