802.1D to 802.1p Map Tbl
Use this page to configure QoS 802.1D to 802.1p priority mapping (for layer 2 policies).
1. Navigate to Configuration > QoS > Dot1D to Dot1p Map Tbl
2. In the Dot1D to Dot1p Mapping Table page, enter the 802.1p Priority (from 0-7) for 802.1d Priorities 0-7.
3. Click OK.

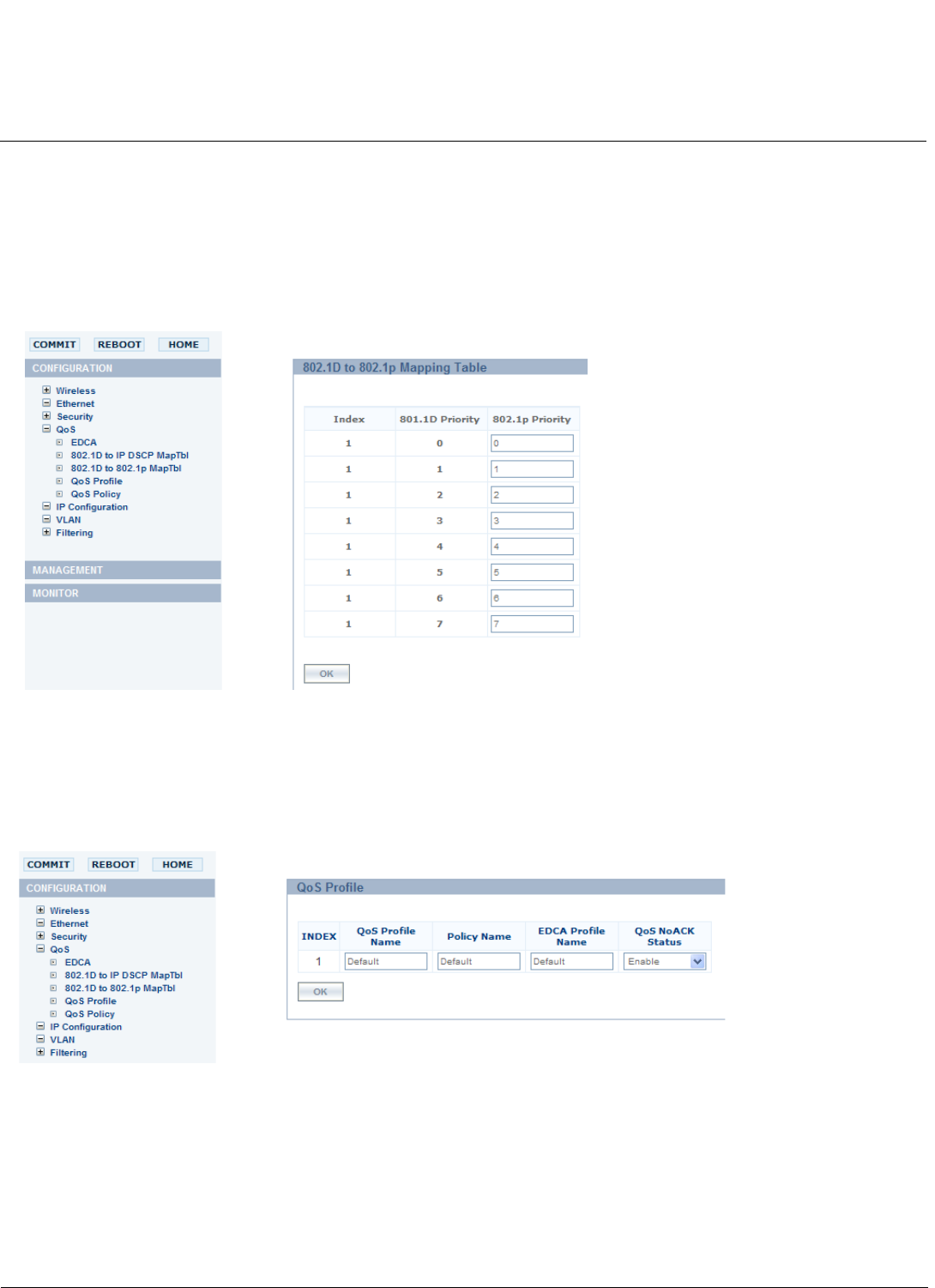

Figure 6-21 802.1D to 802.1p Mapping Table Page
QoS Profile
Perform the following procedure to configure QoS Profile.
Figure 6-22 QoS Profile Page
1. Enter the QoS Profile Name.
2. Enter the Policy Name that you have defined in the QoS Policy Table.
3. Enter the EDCA Profile Name that you have defined in the EDCA Table.
4. Select the QoS NO ACK Status for the QoS Profile table.
5. Click Ok.
