Using Web Interface to Manage the Access Point AP-800 User Guide
Configuring the Device
66
MAC Access Control
MAC Access Control page allows you to build a list of authorized wireless stations that can register at the unit and access
the network. MAC Authentication is supported on the wireless interface and only wireless MAC addresses should be
entered in the list.
1. Click Configuration > Security > MAC Access Control.
2. Select the Operation Type.
NOTE: Based on the Operation type, you can allow/deny the association of the MAC ACL profile to an SSID.
3. Click OK.

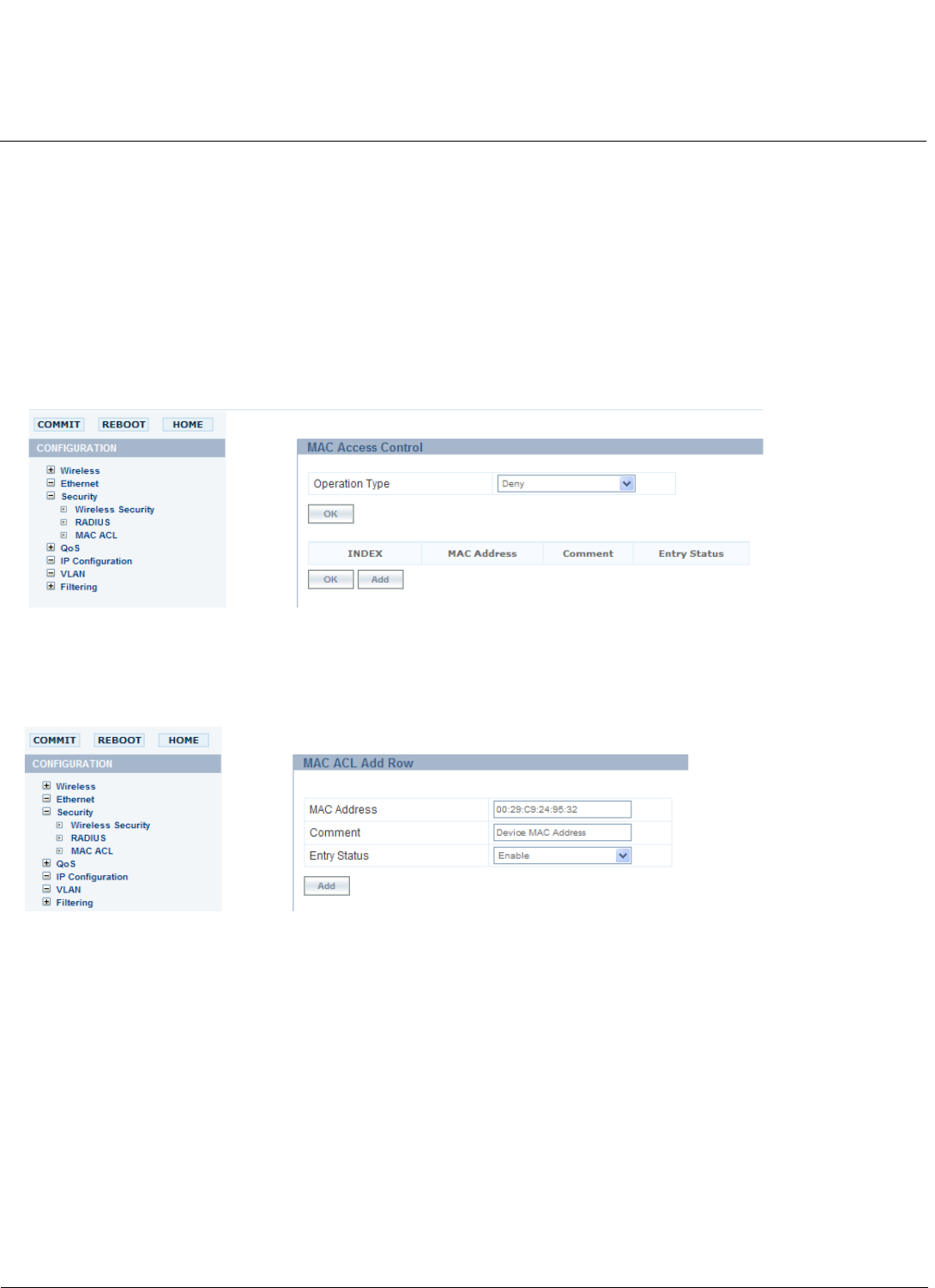

Figure 6-16 MAC Access Control Page
4. To add entries, click Add, the MAC ACL Add Row page is displayed.
Figure 6-17 MAC ACL Add Row Page
5. Enter the MAC Address, Comment if you have any, and Entry Status of the MAC Address, then click Add. The
maximum number of MAC addresses that can be added is 64.
QoS
Perform the following procedure to configure the Station and AP EDCA tables:
EDCA
1. Navigate to Configuration > QoS > EDCA.
