Using Web Interface to Manage the Access Point AP-800 User Guide
Configuring the Device
64
— Encryption Type: WPA-TKIP, WPA2-AES, WPA-TKIP + WPA2-AES
— PSK : Enter the password. The limit for the passphrase is between 8 and 63 characters.
— Rekeying Interval: Enter the rekeying interval value. Re-key value is the interval at which AP will send Group
keys for all associated clients. by default the Rekeying Interval value is set to 900.
— Enter Status.
NOTE: When you select the encryption type as WPA-TKIP+WPA2-EAS, then the AP is considered to be in
Auto-Encryption mode, and the client will support both encryption type.

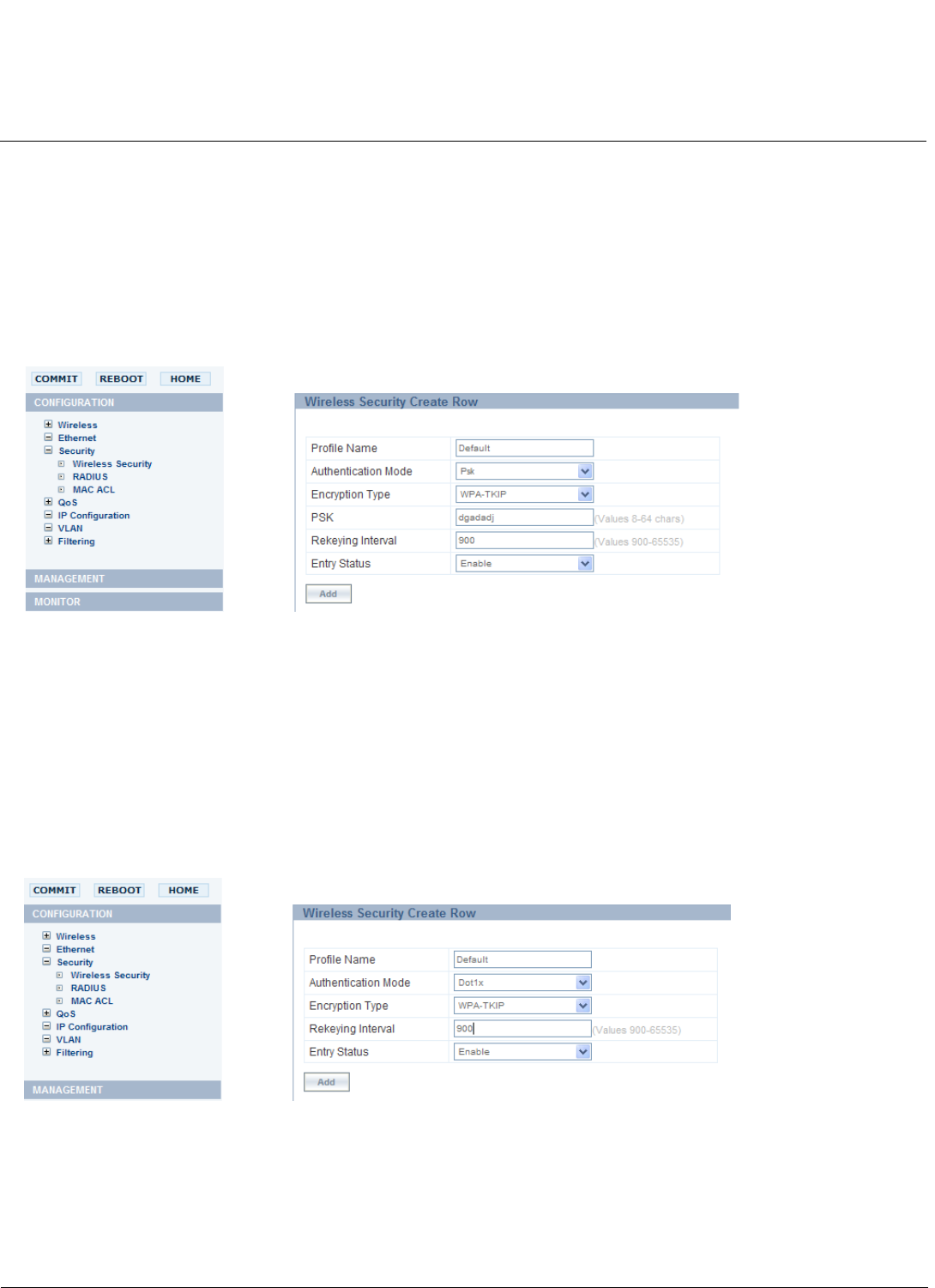

Figure 6-13 Security - Authentication Mode - Psk
• Authentication Mode: 802.1x
— Encryption Type: WEP, WPA-TKIP, WPA2-AES, WPA-TKIP + WPA2-AES
— Rekeying Interval: Enter the rekeying interval value.
— Enter Status.
NOTE: When you select the encryption type as WPA-TKIP+WPA2-EAS, then the AP is considered to be in
Auto-Encryption mode, and the client will support both encryption type. This type of security is called Dynamic
WEP.
Figure 6-14 Security - Authentication Mode - Dot1x
4. When finished configuring all parameters, click Add.
5. If you have selected a security profile of 802.1x, then you must configure a RADIUS 802.1x/EAP server. See.
RADIUS.
