Using Web Interface to Manage the Access Point AP-800 User Guide
Configuring the Device
61
11n Properties
Using this page, you can configure 11n properties for wireless interface.
1. Navigate to Configuration > Wireless > Interface 1 > 11n Properties. This will display 11n Properties Table page.

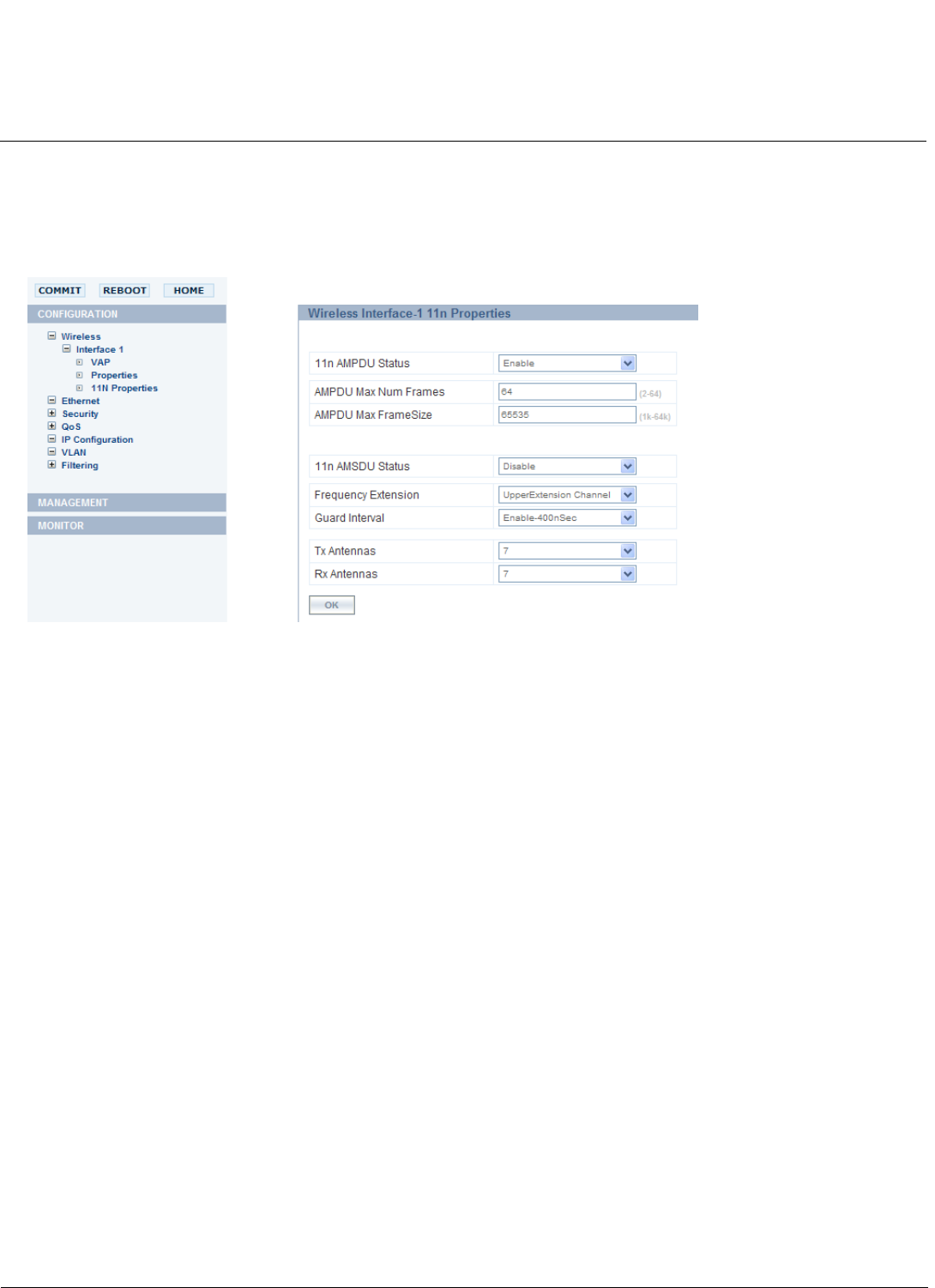

Figure 6-7 11n Properties Page
2. Configure the following parameters:
• 11n AMPU Status: Set this to Enable.
• AMPDU Max Num Frames: Enter a value. This field represents the AMPDU frames that are transmitted. It can
be configured up to 64 frames.
• AMPDU Max FrameSize: Enter a value for the AMPDU frame size that can be transmitted. It is defined in bytes.
It can be configured up to 65535.
• 11n AMSDU Status: AMSDU (Aggregated MAC Service Data Unit) Enable this feature. When you enable this
feature, the device does aggregation at link layer which will help to increase the throughput. The entire AMSDU
frame is considered as one MPDU. It supports two values:
— 4K or 4096
— 8K or 8192
NOTE: Currently, our devices do not support AMSDU on the transmit side. The Access Point can receive only 4K
length of AMSDU.
• Frequency Extension: Select the frequency extension for the wireless interface.
• Guard Interval: Set the Guard Interval. The supported values for this field are: 400nsec and 800nsec. By default
the value set to 400nsec.
• Tx Antennas and Rx Antennas: Select the Tx Antennas and Rx Antennas’ value.
• Click Ok.
Ethernet
Perform the following procedure to configure the Ethernet Port:
1. Navigate to Configuration > Ethernet.
