Installation and Initialization AP-800 User Guide
Hardware Overview
11

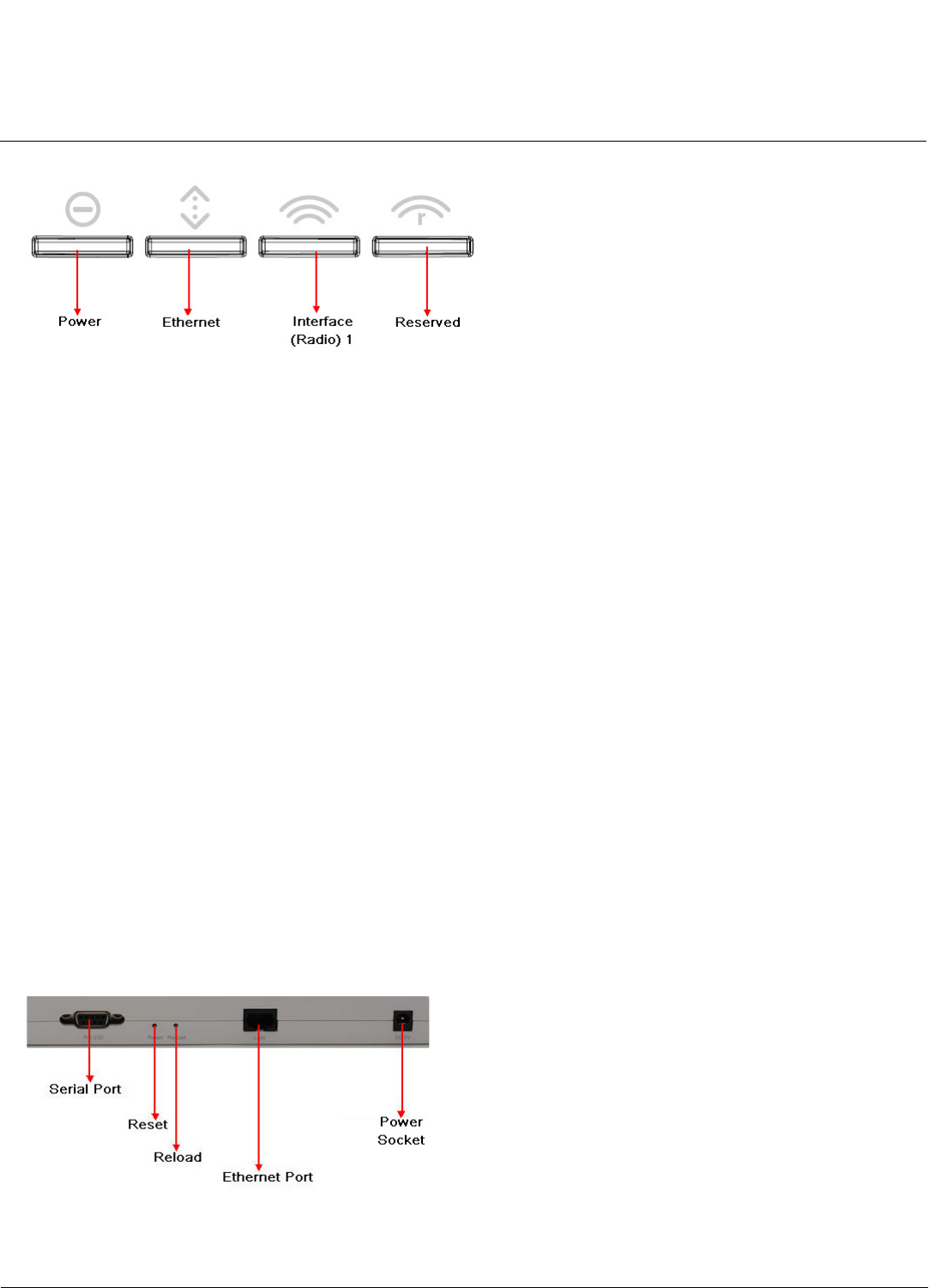

Figure 2-1 LED Indicators
Antennas
The Access Point has been designed to operate with omni-directional antennas, having the maximum gain of 2.5 dBi.
These antennas have standard connectors and can be installed easily. Proxim also provides an optional accessory -
Range Extender Antenna, which has standard connectors and can be installed easily.
Power Socket
This socket connects to the 5VDC power adapter.
Reset
If you need to powercycle the device, then press Reset button.
Reload
You can use the Reload feature of the device to reset the device configuration parameters to default factory settings. If
you cannot access the unit or you have lost its password, you can reset the unit to the factory default settings.
Ethernet Port
The Ethernet port of the device allows you to connect to th LAN using CAT5 or CAT6 Ethernet cable.
Serial Port
The AP-800 device has a serial port that enables the use of external modems that connect to PC or laptop via a serial
cable.
Figure 2-2 Rear View of the AP-800
