Device Management
ORiNOCO® 802.11n Access Points - Software Management Guide 94
6.2.1 Update Firmware
6.2.1.1 Update Firmware by Using HTTP
To update the firmware by using HTTP, follow the following steps:
1. Navigate to MANAGEMENT > File Management > Update Firmware > HTTP. The configuration screen appears:

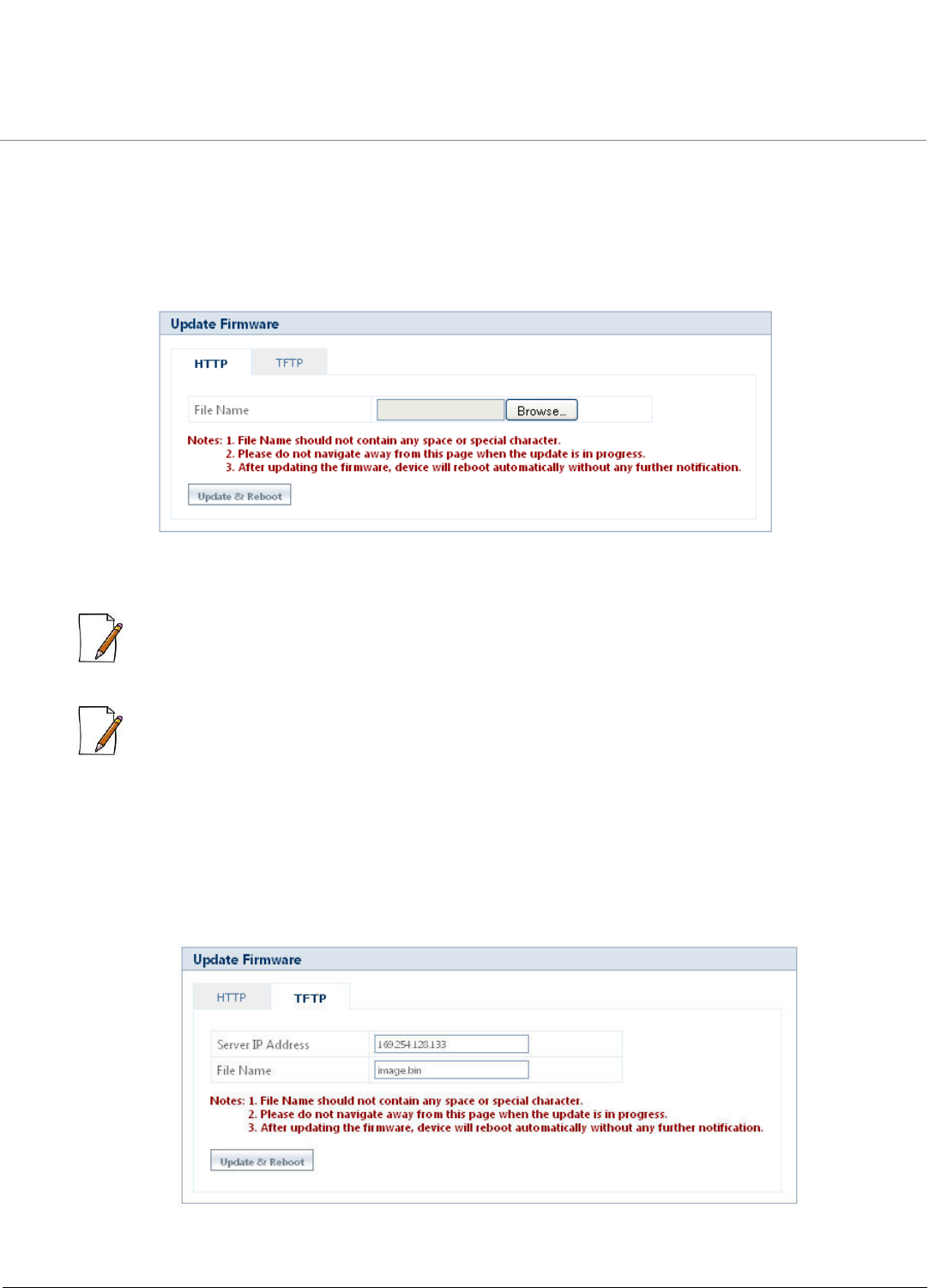

Figure 6-4 Update Firmware by using HTTP
2. In the HTTP screen, click Browse to select the updated firmware file from the desired location.
: The file name should not contain any spaces or special characters.
3. Click Update & Reboot, for the device to get uploaded with new firmware and reboot automatically.
:
• Update & Reboot is applicable only to AP-8100.
• For AP-800 and AP-8000, click Update to load the firmware on to the device and Reboot the device.
6.2.1.2 Update Firmware by Using TFTP
To update the firmware by using TFTP, follow the following steps:
1. Navigate to MANAGEMENT > File Management > Update Firmware > TFTP. The configuration screen appears:
Figure 6-5 Update Firmware by using TFTP
