Device Configuration
ORiNOCO® 802.11n Access Points - Software Management Guide 72
c. Trunk Mode: Trunk Mode is configurable on the ethernet interface of the AP device. It
is mainly used to connect VLAN aware networks with VLAN aware networks. An
interface in the Trunk mode only forwards those tagged frames whose VLAN ID
matches with a VLAN ID present in trunk table. All other frames will be dropped.
To configure this VLAN mode on the ethernet interface, select Trunk Mode from the
VLAN Mode box and click OK. The configuration screen appears:

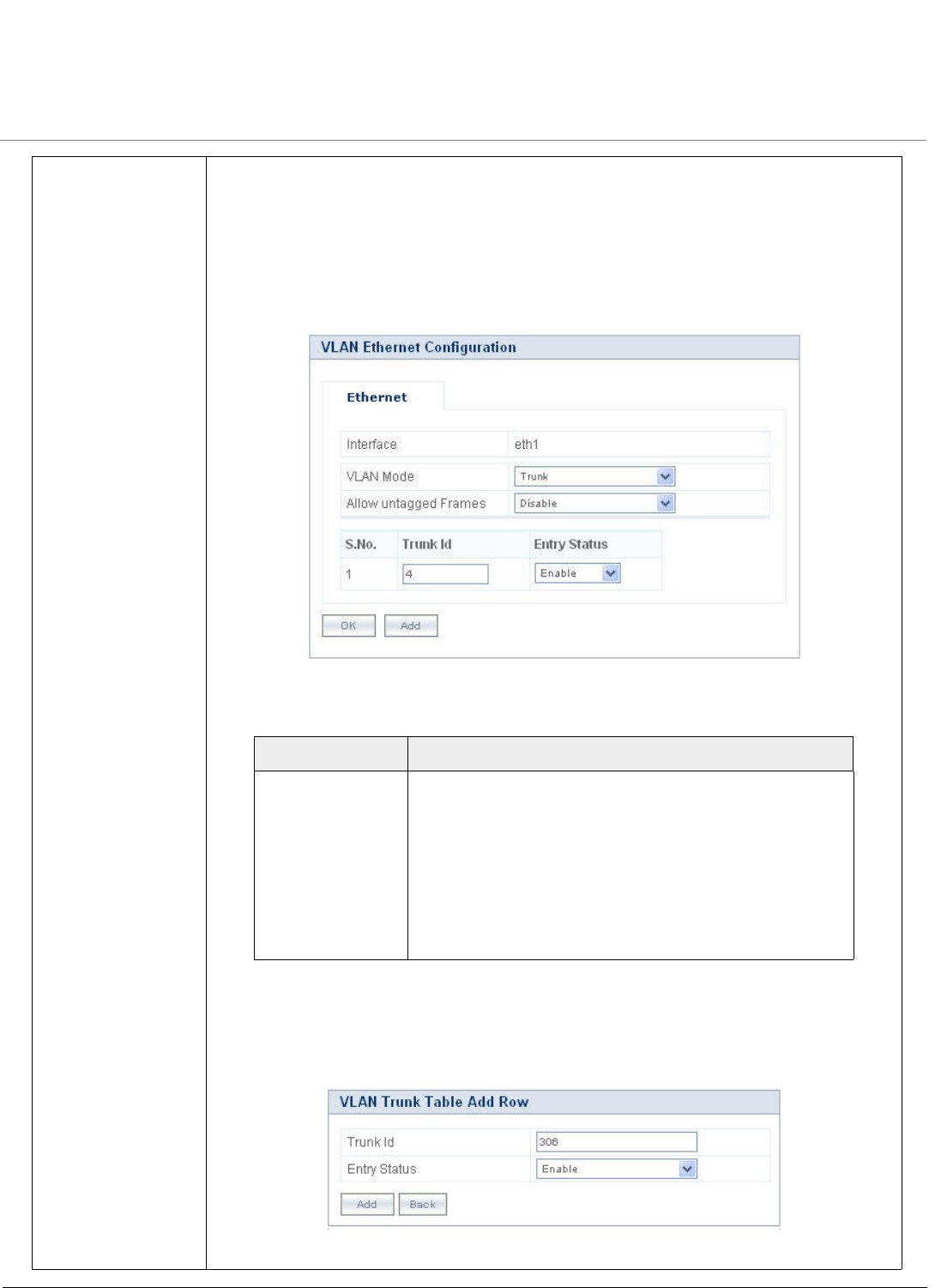

Figure 5-34 VLAN Trunk Mode
VLAN Trunk Table
To add new entries, click Add. The VLAN Trunk Table Add Row screen appears:
Figure 5-35 VLAN Trunk Table - Add Row
Configure the following parameters in Trunk Mode:
Click OK and COMMIT, to save the configured parameters.
Parameter Description
Allow Untagged
Frames
To configure, either select Enable or Disable from the
drop down menu.
– If enabled, an interface in Trunk mode forwards
both tagged frames whose VLAN ID matches with
one of the VLAN IDs in the trunk table and
untagged frames.
– If disabled, an interface in Trunk mode forwards
only tagged frames and drops untagged frames
