Device Configuration
ORiNOCO® 802.11n Access Points - Software Management Guide 66
Tabulated below are the ‘QoS 802.1d and 802.1p (for layer 2 policies)’ parameters and the method to configure the
configurable parameters:
Click OK and COMMIT, to save the configured parameters.
5.6.4 QoS Profile
Navigate to CONFIGURATION > QoS > QoS Profile. The QoS Profile screen appears.

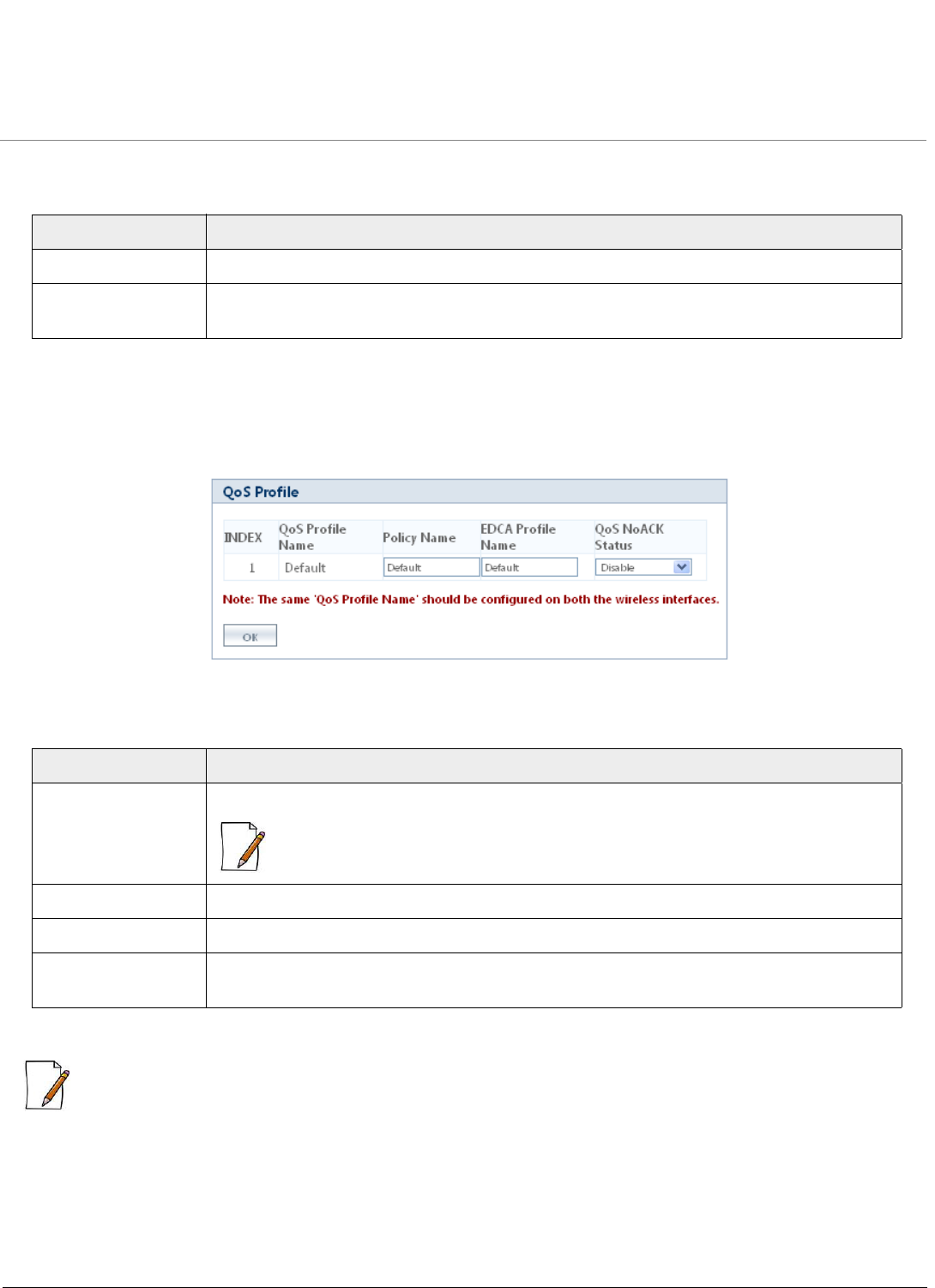

Figure 5-28 QoS Profile
Tabulated below are the ‘QoS Profile’ parameters and the method to configure the configurable parameters:
Click OK and COMMIT, to save the configured parameters.
: QoS Profile Name is applicable only for wireless interfaces.
5.6.5 QoS Policy
Navigate to CONFIGURATION > QoS > QoS Policy. The Qos Policy screen appears.
Parameter Description
802.1d Priority Specifies a read-only parameter which represents the 802.1d priority.
802.1p Priority Specifies the 802.1p priority mapped to the corresponding 802.1d priority. To configure,
enter the 802.1p Priority, for the corresponding 802.1d priority, in the range of 0 to 7.
Parameter Description
QoS Profile Name Specifies a read-only parameter that represents the QoS profile name.
: By default, the AP device has only one defined QoS Profile named ‘Default’.
Policy Name Specifies the QoS policy name. By default, the QoS Policy Name taken is Default.
EDCA Profile Name Specifies the EDCA Profile Name. By default, the EDCA Profile Name taken is Default.
QoS NoACK Status Specifies the QoS profile acknowledgement status. By default, the QoS NoACK Status is
disabled. To configure, select either Enable or Disable from the drop down menu.
