Device Configuration
ORiNOCO® 802.11n Access Points - Software Management Guide 65

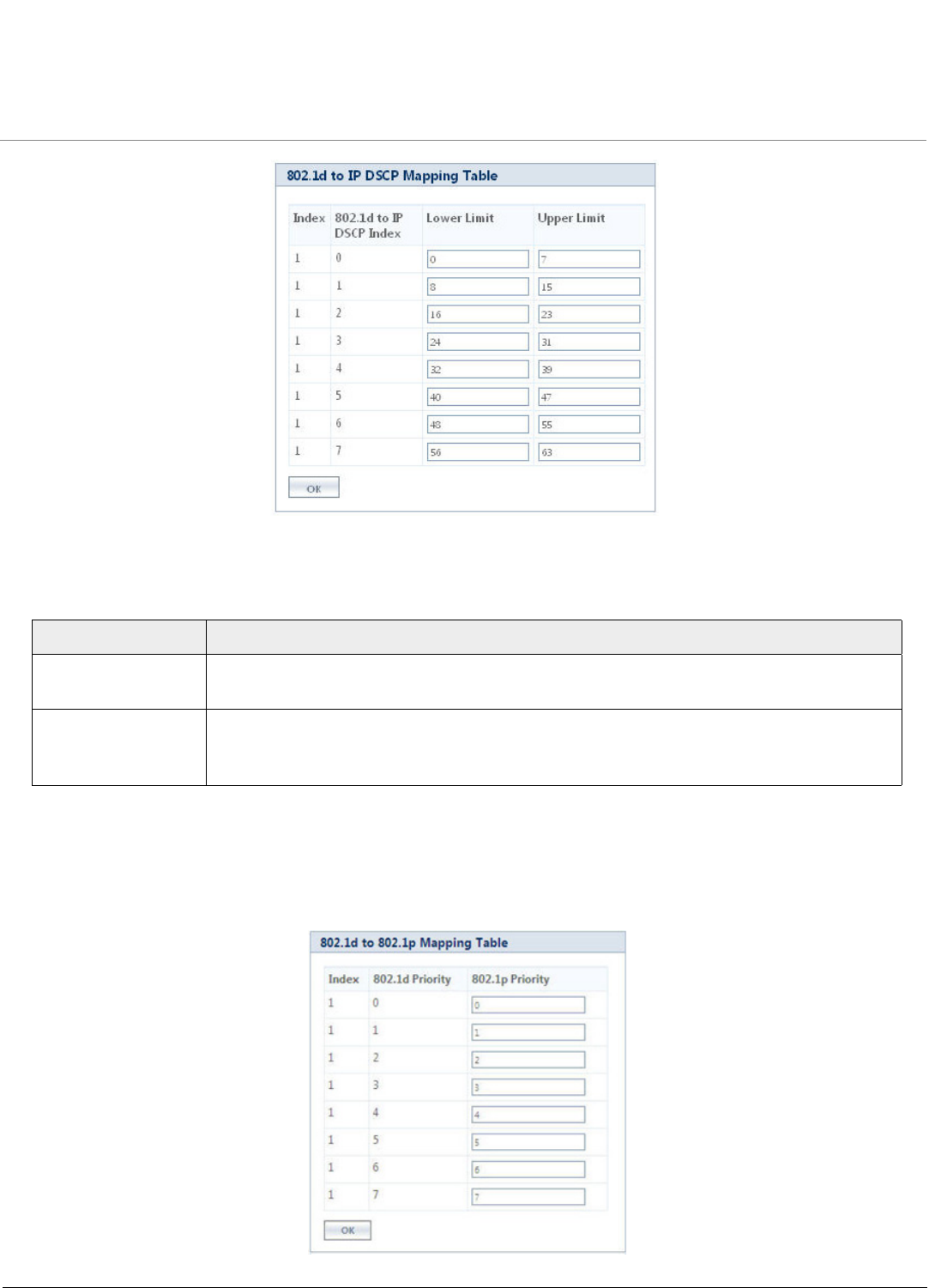

Figure 5-26 802.1d To IP DSCP Mapping Table
Tabulated below are the ‘QoS 802.1d and IP DSCP (Differentiated Services Code Point) (for layer 3 policies)’ parameters and
the method to configure the configurable parameters:
Click OK and COMMIT, to save the configured parameters.
5.6.3 802.1d to 802.1p
Navigate to CONFIGURATION > QoS > 802.1d to 802.1p. The 802.1d to 802.1p Mapping Table screen appears.
Figure 5-27 802.1d to 802.1p Mapping Table
Parameter Description
802.1d to IP DSCP
Index
Specifies a read-only parameter which indicates the IP DSCP index corresponding to 802.1d
priority.
Lower Limit and
Upper Limit
Specifies the IP DSCP range (lower and Upper limit) for each 802.1d priority. To configure,
enter the Lower Limit and Upper Limit in the range of 0 to 63, respectively for each
802.1d priority.
