5. Click the Edit button to update the Wireless Distribution System (WDS) Table.

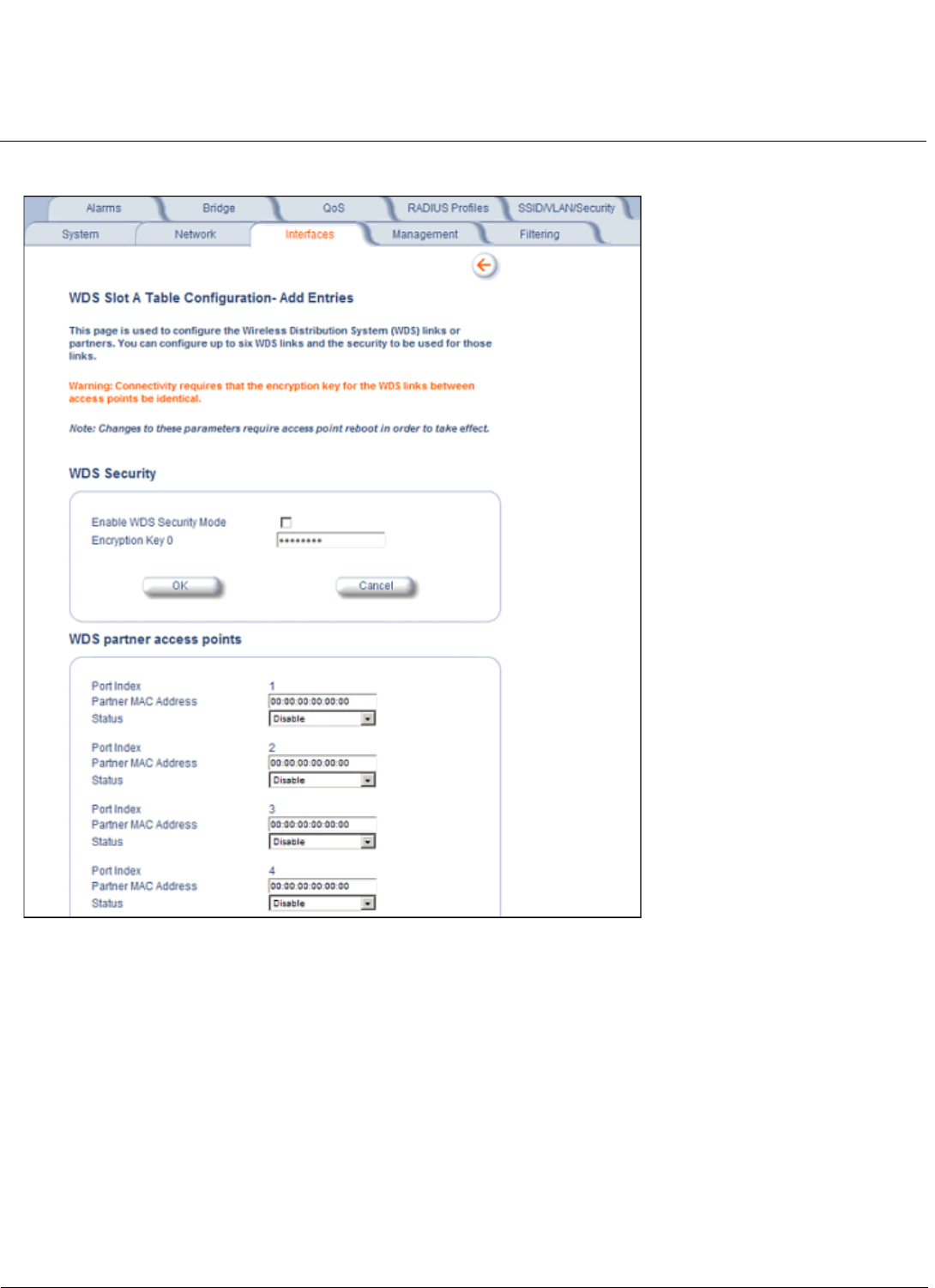

Figure 4-15 Adding WDS Links
6. Select whether to use encryption in the WDS by checking the Enable WDS Security Mode checkbox.
7. If you enabled WDS Security Mode, enter the Encryption Key 0 used for encryption between the WDS links.
8. Enter the MAC Address that you wrote down in Step 2 in one of the Partner MAC Address field of the Wireless
Distribution Setup window.
9. Set the Status of the device to Enable.
10.Click OK
.
11.Reboot the AP.
Ethernet
Select the desired speed and transmission mode from the drop-down menu. Half-duplex means that only one side can
transmit at a time and full-duplex allows both sides to transmit. When set to auto-duplex, the AP negotiates with its switch
or hub to automatically select the highest throughput option supported by both sides.
