Advanced Configuration AP-4000 Series User Guide
Interfaces
54
Interfaces
From the Interfaces tab, you configure the Access Point’s operational mode settings, power control settings, wireless
interface settings and Ethernet settings. You may also configure a Wireless Distribution System for AP-to-AP
communications. The Interfaces tab contains the following sub-tabs:
• Operational Mode
• Wireless-A (802.11a Radio) and Wireless-B (802.11b/g Radio)
• Ethernet
• Mesh (AP-4000M/AP-4900M Only)
Operational Mode
From this tab, you can configure and view the operational mode for the Wireless-A (802.11a radio) or Wireless-B
(802.11b/g radio) Interface.

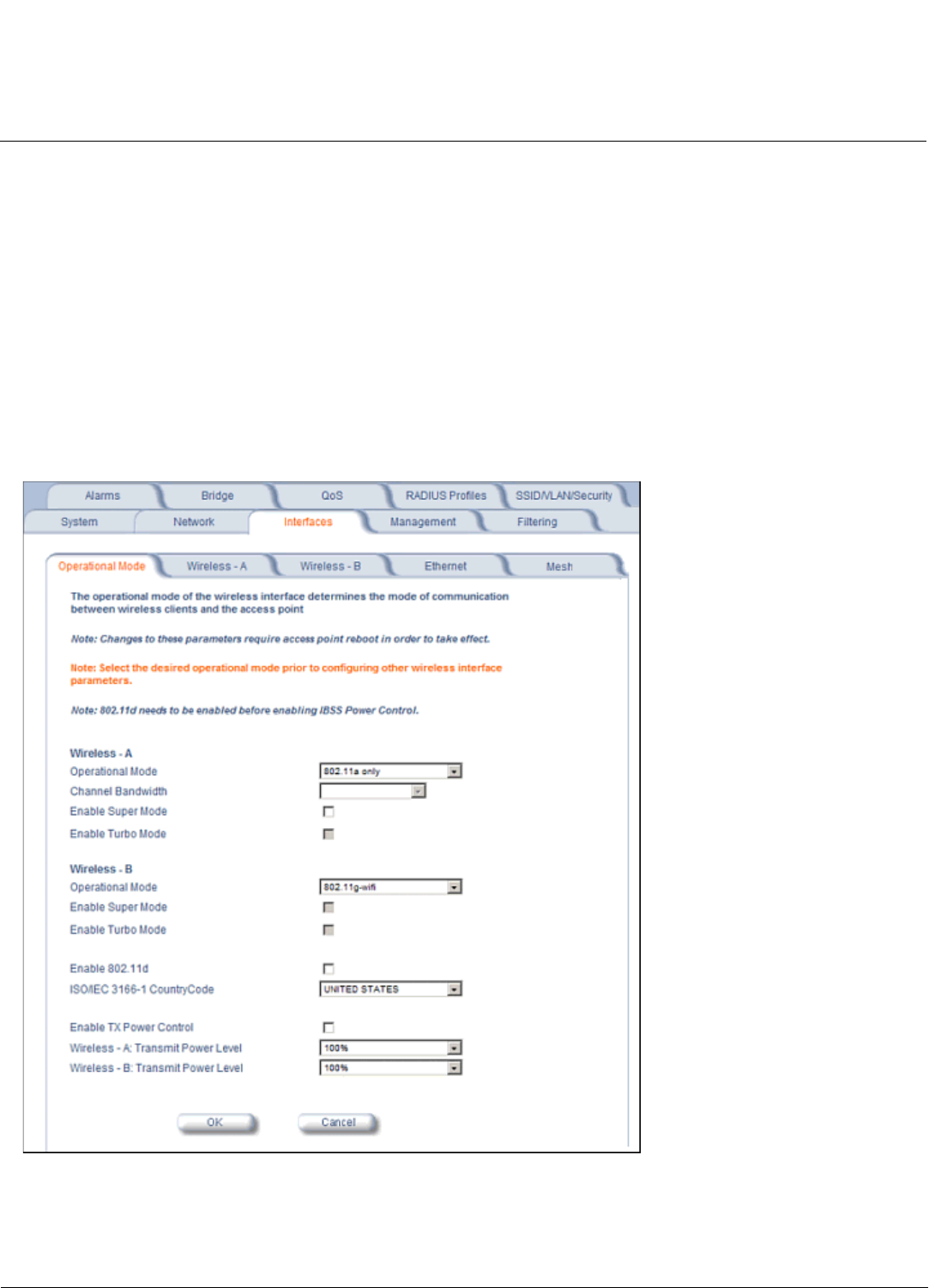

Figure 4-9 Operational Mode Screen (AP-4900M)
The Wireless-A interface operates only in 802.11a mode on the AP-4000/4000M and in either 802.11a mode or 4.9 GHz
Public Safety mode on the AP-4900M. The Wireless-B interface can be configured to operate in the following modes:
• 802.11b only mode: The radio uses the 802.11b standard only.
