Installation and Initialization AP-4000 Series User Guide
Initialization
34
– Click OK twice to save your changes and return to Internet Explorer.
3. Enter the Access Point’s IP address in the browser’s Address field and press Enter or Go.
This is either the dynamic IP address assigned by a network DHCP server or the static IP address you manually
configured. See Using ScanTool for information on how to determine the unit’s IP address and manually configure a
new IP address, if necessary.
NOTE: Mesh APs must be configured with static IP addresses.
The Enter Network Password screen appears.

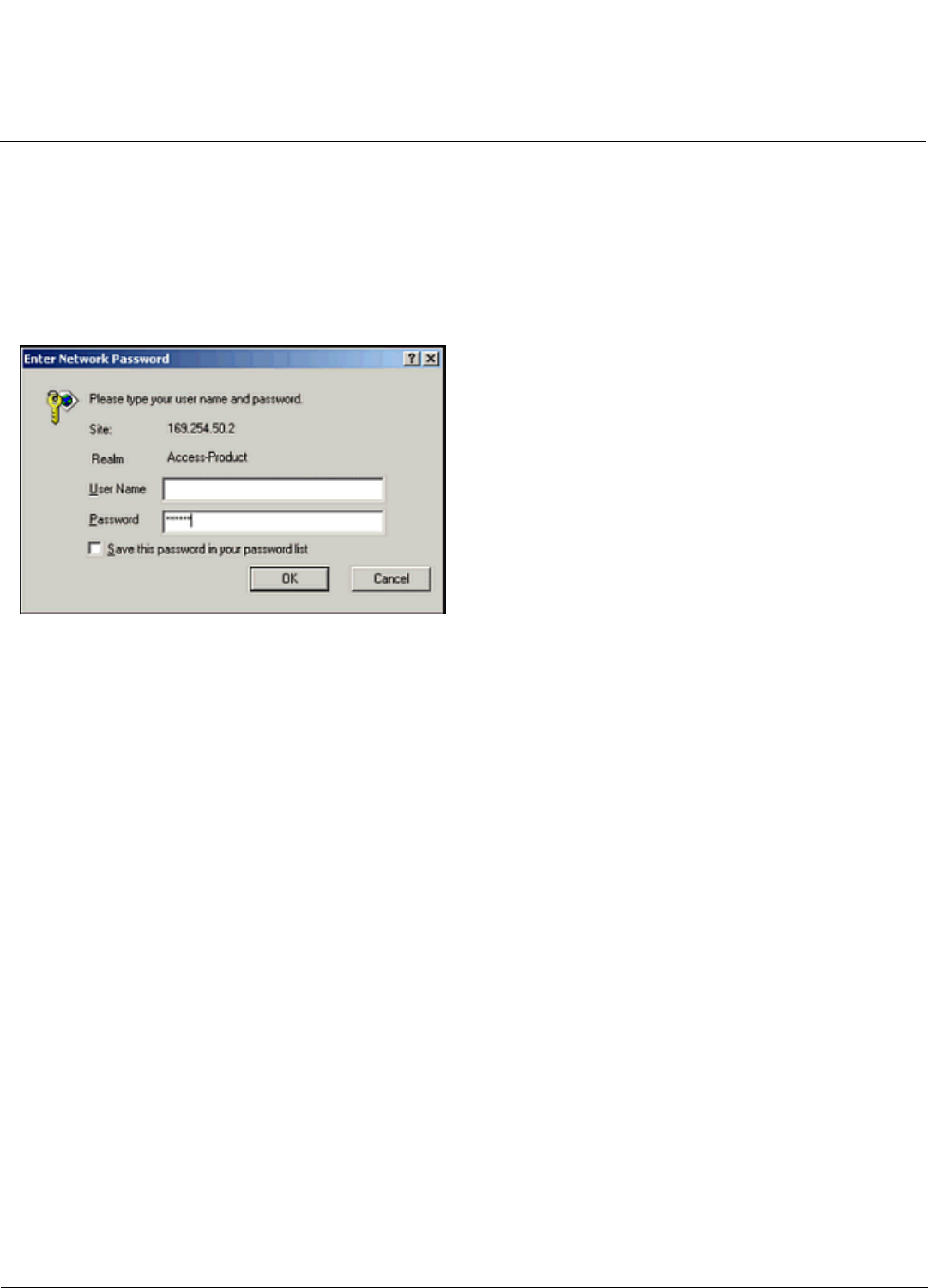

Figure 2-11 Enter Network Password
4. Enter the HTTP password in the Password field. Leave the User Name field blank. For new units, the default HTTP
password is public.
If you are logging on for the first time the Setup Wizard will launch automatically.
NOTE: To prevent the Setup Wizard from launching upon log in, click on Management > Services and choose
Disable from the Setup Wizard drop down menu.
5. Follow the steps below to configure the AP using the Setup Wizard (see Using the Setup Wizard), or click Exit to
configure the system manually. Upon clicking Exit, the System Status screen will appear.
