Installation and Initialization AP-4000 Series User Guide
Hardware Installation
29

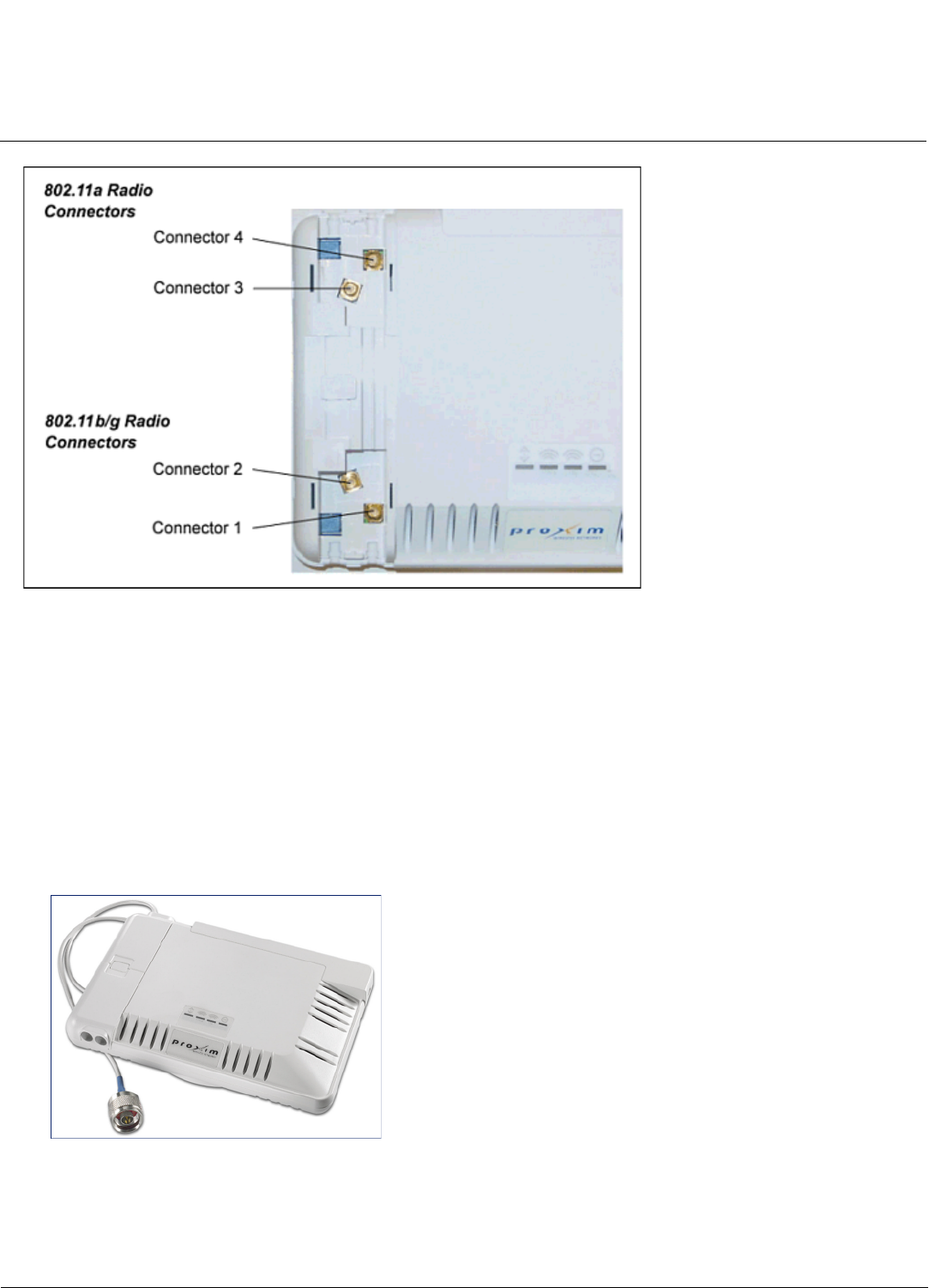

Figure 2-7 AP-4000/4000M/4900M Antenna Connectors
3. If installing a second external antenna on a radio, connect the antenna cable to connector 2 (802.11b/g radio) or
connector 3 (802.11a radio).
4. Close the external antenna access compartments.
5. If desired, manually select which antenna(s) to use through the Command Line Interface. See Configure Antenna
Diversity.
Attaching Antenna(s) to the AP-4900M for 4.9 GHz Operation
To attach an external antenna to the AP-4900M, attach the selected antenna to the pigtail attachment connected to the
AP’s antenna connector 3 (see Figure 2-8).
For a list of recommended antennas, see http://www.proxim.com/products/wifi/accessories.
Figure 2-8 AP-4900M External Antenna Connection
Installing the AP in a Plenum
In an office building, plenum is the space between the structural ceiling and the tile ceiling that is provided to help air
circulate. Many companies also use the plenum to house communication equipment and cables. These products and
