Advanced Configuration AP-4000 Series User Guide
QoS
102
8. Select whether to Enable QoS Marking.
9. Click OK.
Priority Mapping
Use this page to configure QoS 802.1p to 802.1d priority mappings (for layer 2 policies) and IP DSCP to 802.1d priority
mappings (for layer 3 policies). The first entry in each table contains the recommended priority mappings. Custom entries
can be added to each table with different priority mappings.
1. Click Configure > QoS > Priority Mapping.

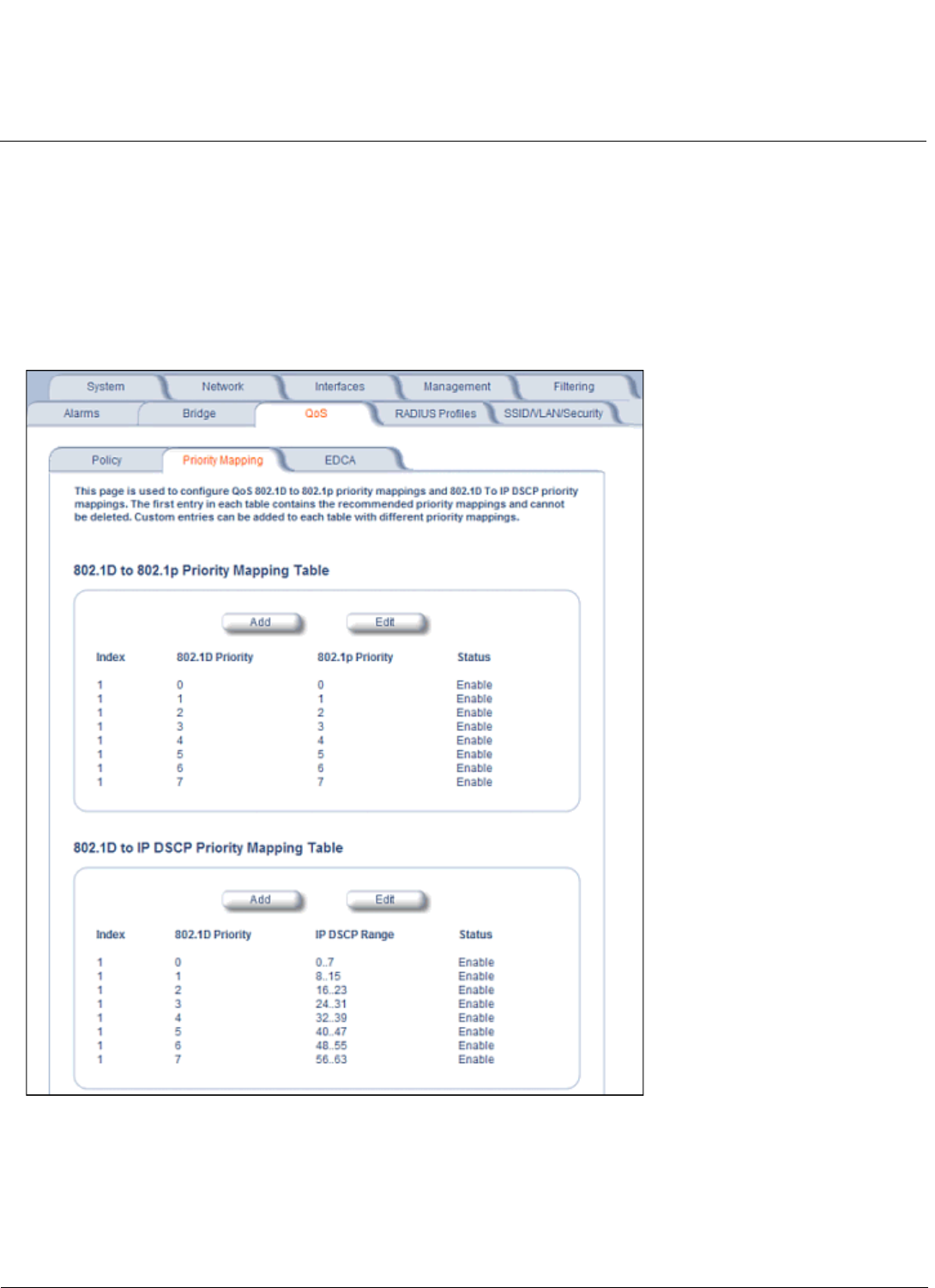

Figure 4-32 Priority Mapping
2. Click Add in the 802.1p and 802.1d priority mapping table.
