QoS
101
2. To enable QoS, check the Enable Quality of Service checkbox.
3. Configure the QoS Maximum Medium Threshold for all Admission Controls. Admission will be granted if the new
requested traffic stream and already admitted time is less than the medium maximum threshold.
4. To add a QoS Policy, click the Add button in the “QoS Policies Table” box. The Add Entries box appears.

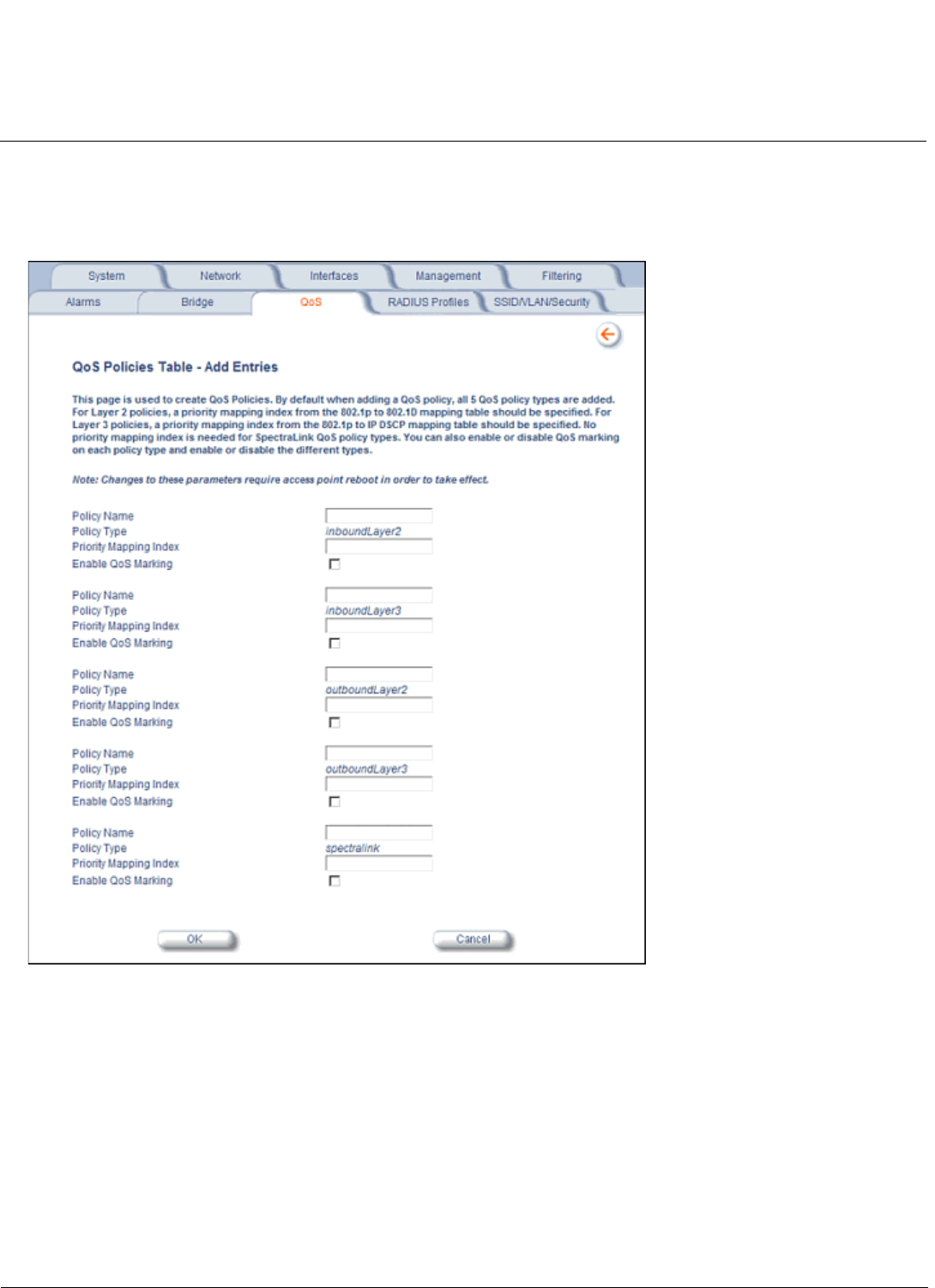

Figure 4-31 Add QoS Policy
5. Enter the Policy Name.
6. Select the Policy Type:
• inlayer2: inbound traffic direction, Layer 2 traffic type
• inlayer3: inbound traffic direction, Layer 3 traffic type
• outlayer2: outbound traffic direction, Layer 2 traffic type
• outlayer3: inbound traffic direction, Layer 3 traffic type
• spectralink: SpectraLink traffic
7. Enter the Priority Mapping Index.
For layer 2 policies, an index from the 802.1p to 802.1d mapping table should be specified. For layer 3 policies, an
index from the 802.1p to IP DSCP mapping table should be specified. No mapping index is required for SpectraLink.
