3.12.3 Spreading Code Selection
The spreading code is the pseudo-random chip sequence that is mixed with the data to produce the
spread spectrum signal. The spreading code is generated by the LYNX.sc radio internally. Different
codes can be selected using the DIP switches on the LYNX.sc radio rear panel.
The spreading code must be the same for both ends of a radio
link.
The spreading code has no effect with the Model 31850 (4xE1) 3-
channel LYNX.sc.
Spreading codes are all set in the factory to code 1. Should the code need to be changed, then
both ends of the link must be changed.
Changing the spreading code is an out-of-service adjustment. There are two DIP switch segments
on SW3 located on the rear panel which select the spreading codes. See Figure 3-13 for DIP switch
segment settings.

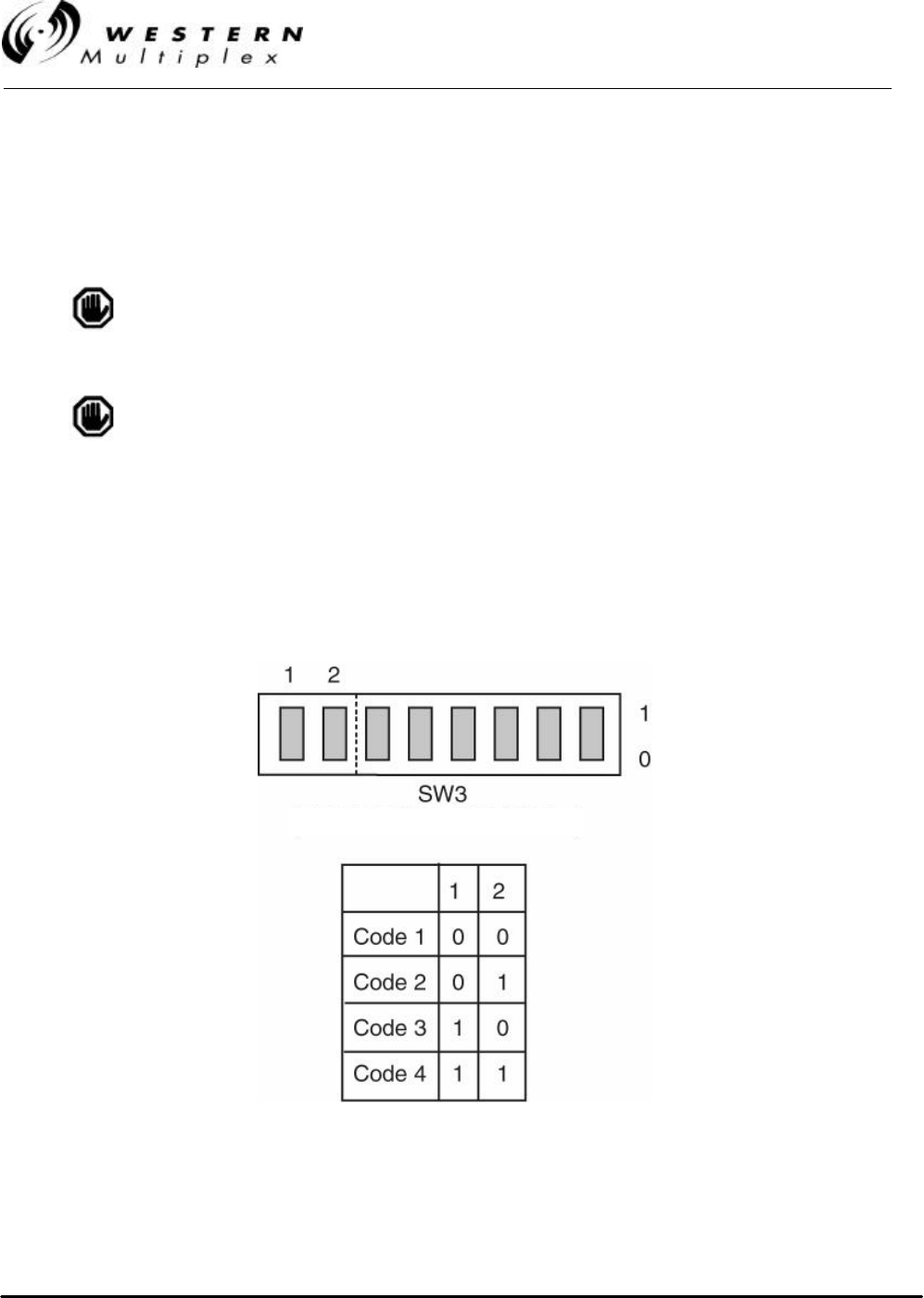

Figure 3-13: Spreading Code Selection
