SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-19
3.7.2 AC Power Connection
The optional AC power supply operates from any AC voltage 100V - 250V and 50 Hz or 60 Hz. The
AC supply is equipped with a mating connector that plugs directly into the LYNX.sc radio and an
AC cord with a 3-pin AC plug. The AC cord color code is shown in Figure 3-9 in case users wish to
replace the AC plug supplied with a different type of plug.

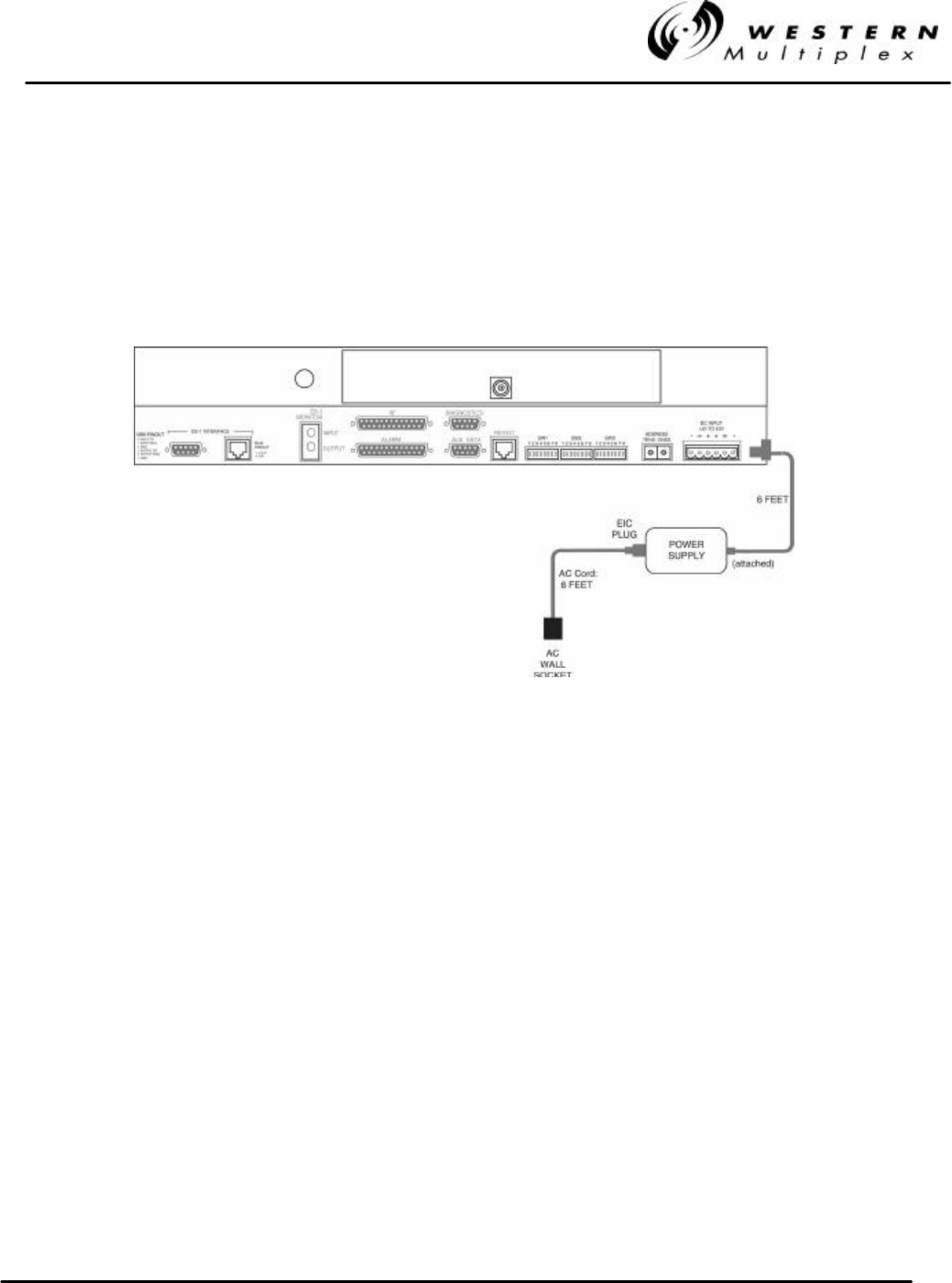

Figure 3-9: AC Connection
