PAGE 3-18 SECTION 3: INSTALLATION & ADJUSTMENTS

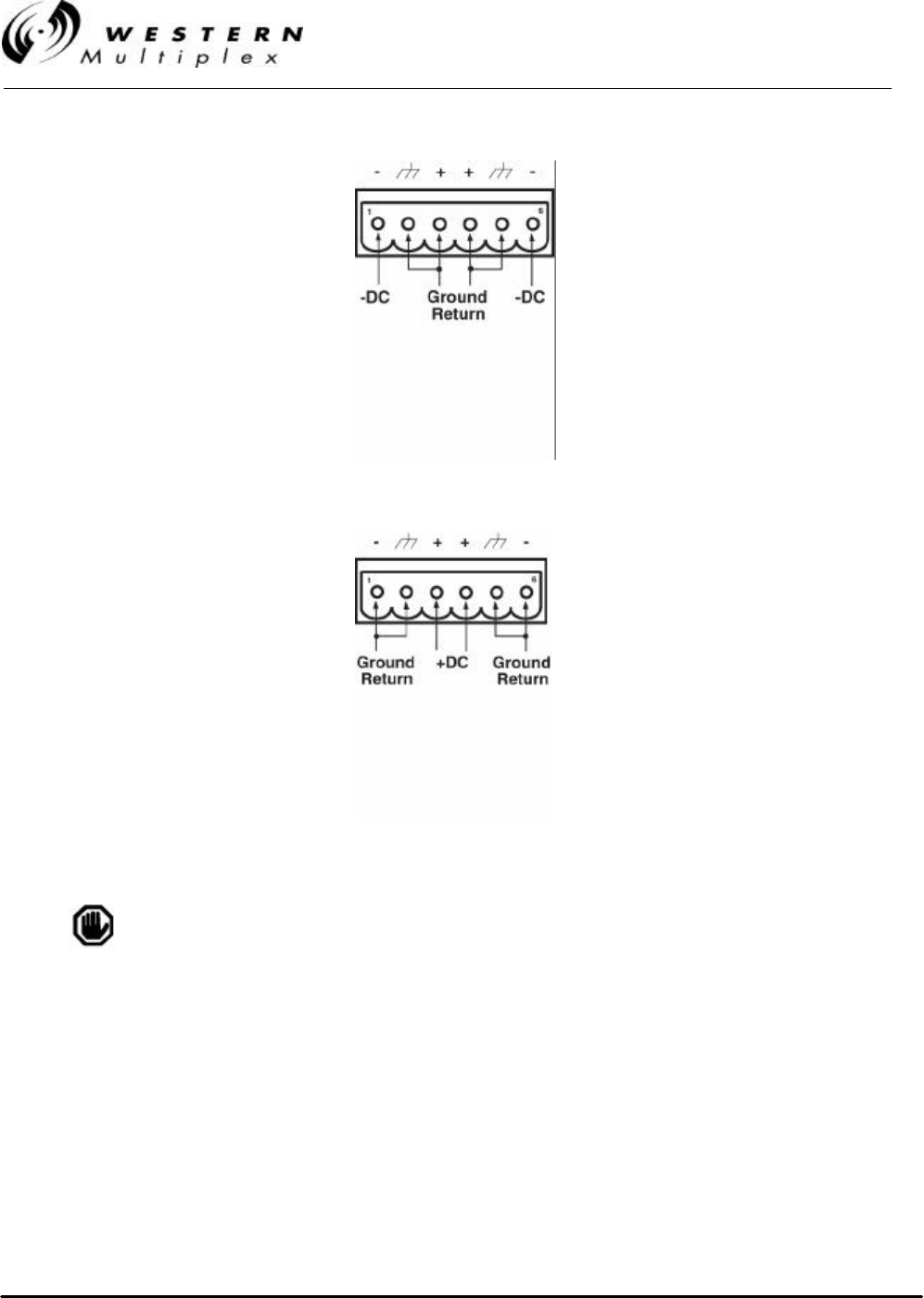

Figure 3-7: Negative Voltage DC Connection
Figure 3-8: Positive Voltage DC Connection
Make sure that when connecting the mating plug that it is properly
oriented (terminal screws pointing up) and securely fastened.
