User's Manual

INSTALLATION AND MAINTENANCE MANUAL
LYNX.sc E1 FAMILY
SPREAD SPECTRUM RADIOS
SEPTEMBER 1999
PAGE 3-12 SECTION 3: INSTALLATION & ADJUSTMENTS
3.5 Frequency Channel Plans
The LYNX.sc system offers several non-overlapping channel plans for the different models of radio.
This channel plan arrangement allows users to implement LYNX.sc systems in the proximity of
other LYNX.sc radios (planned or unplanned), hub and repeater applications, and can be used to
mitigate interference. The channel plans are illustrated below in Figures 3-1 through 3-6. Section 4.2
and 4.3 describe how to change frequency channel assignments of a LYNX.sc radio.

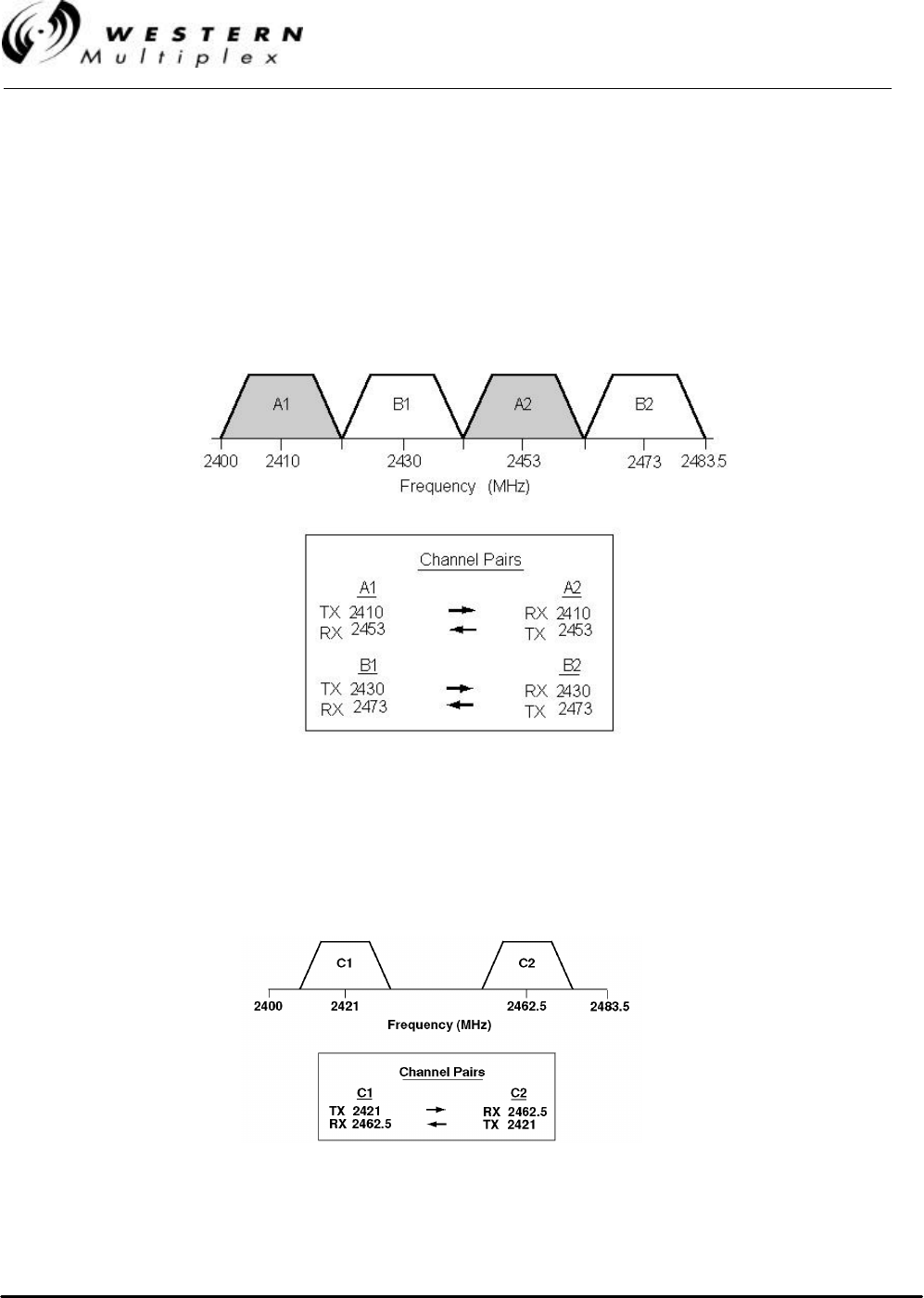

Figure 3-1: Channel Plan, 2.4 GHz 1xE1
Figure 3-2: Custom Channel Plan, 2.4 GHz E1
