ORiNOCO
®
AP-9200R - Hardware Installation Guide 8
3
Device Overview
This section provides the hardware overview and installation procedure for the following product(s):
• AP-9200R
3.1 ORiNOCO
®
AP-9200R Hardware Overview

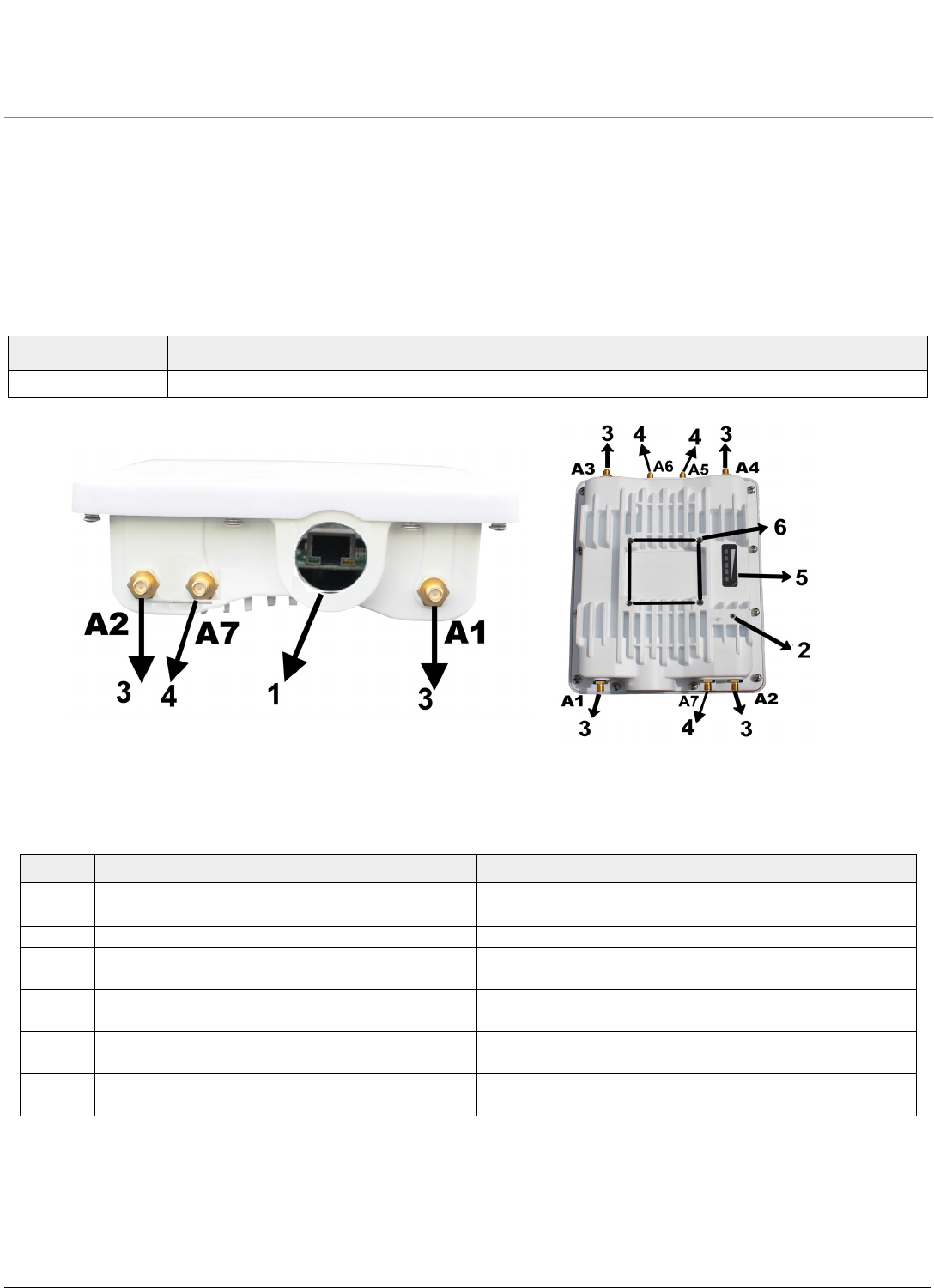

Figure 3-1 AP9200R
The features of the above devices are tabulated as below:
A detailed description about the various components of the device are explained in the following sections.
Device Model Description
AP-9200R ORiNOCO
®
AP-9200R, MU-MIMO 4x4 w2, dual radio, connectorized outdoor Access Point
Item Features Description
1 Ethernet Port • PoE IN and Data
• Debugging and Management
2 Grounding Point • A provision to ground the device.
3 5 GHz Antenna Ports (A1, A2, A3 and A4) • A provision to connect external antenna in MIMO 4x4
mode (supplied).
4 2.4 GHz Antenna Ports (A5, A6 and A7) • A provision to connect external antenna in MIMO 3x3
mode (supplied).
5 RSSI Display • Displays status information (see Status LED Behavior
section).
6 Mounting Holes • A provision to connect 1000-UMK mounting kit
(provided) or 10000-UMK mounting kit (optional).
