Antenna Installation
ORiNOCO
®
AP-9200R - Hardware Installation Guide 52
a. Weatherproofing antenna connectors on the device:
b. Weatherproofing antenna cable:
Step 6: Place a small zip tie over the last wrap of tape to prevent it from unwrapping over time.

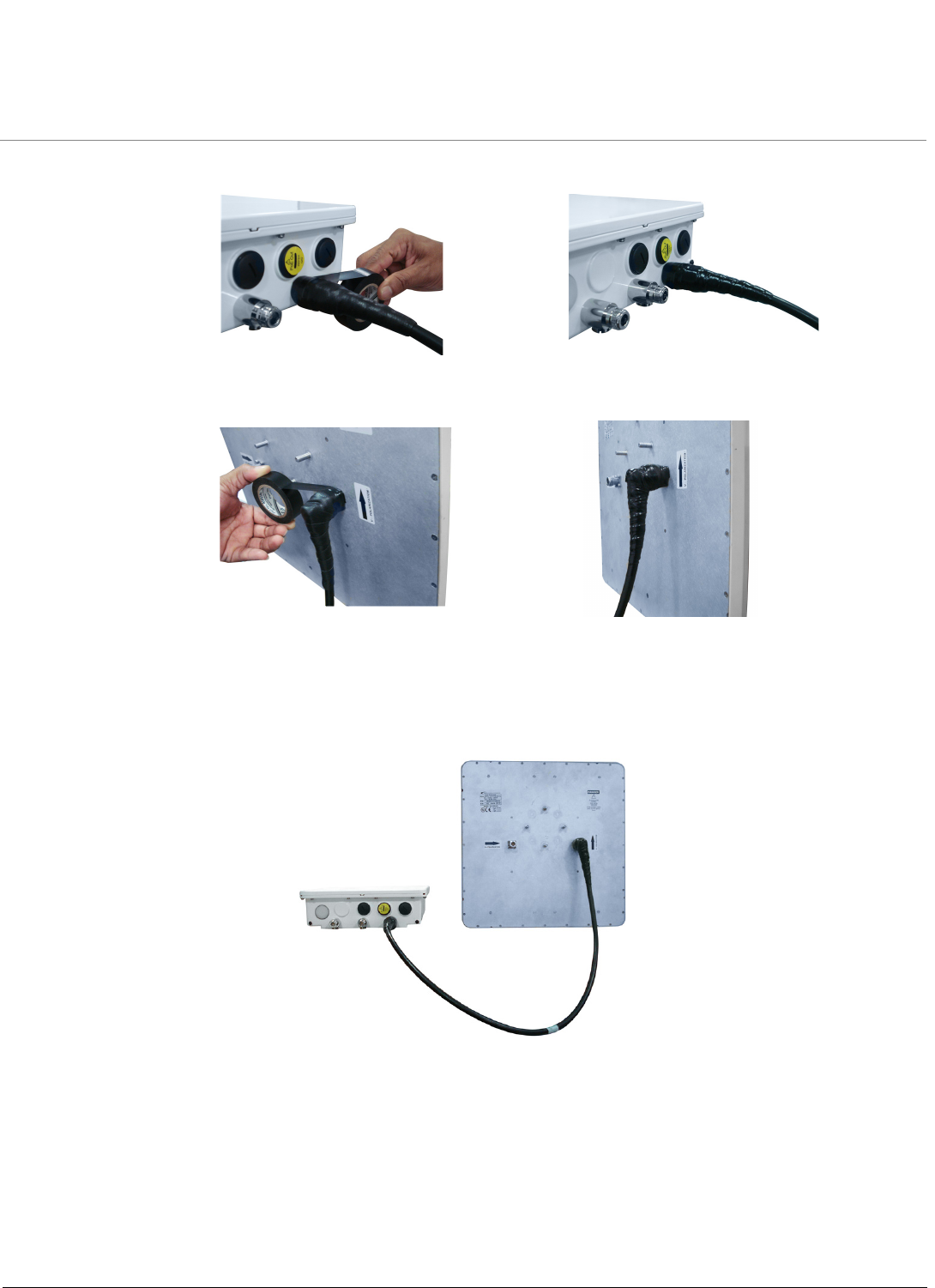

The figure below depicts the complete weatherproofing of the RF connection.
(a)
(b)
(a)
(b)
