Antenna Installation
ORiNOCO
®
AP-9200R - Hardware Installation Guide 51

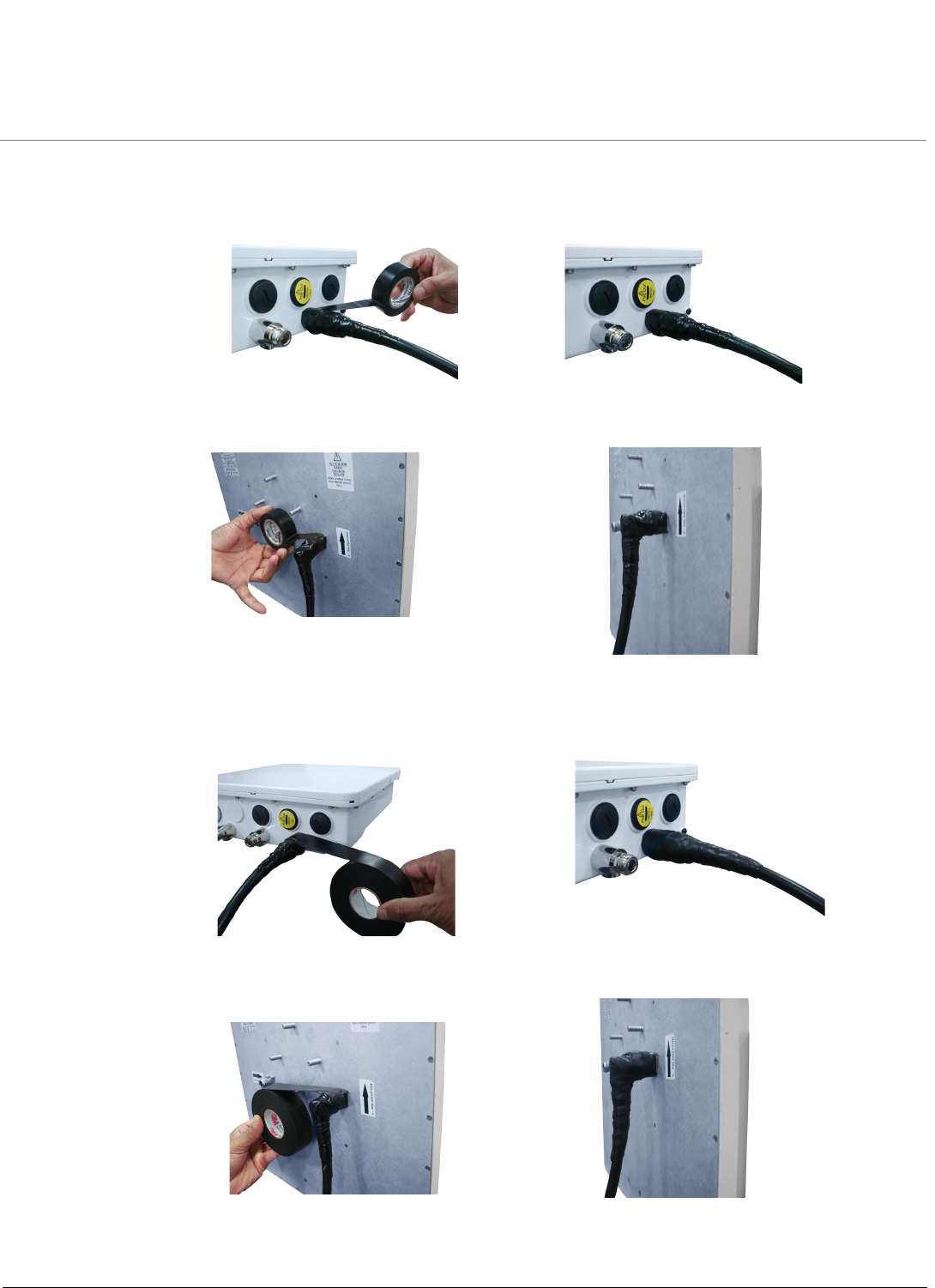

Step 3: Now, wrap a third layer of vinyl tape over the other two layers but with the adhesive side up as this provides a sticky
surface for the next layer.
a. Weatherproofing antenna connectors on the device:
b. Weatherproofing antenna cable:
Step 4: Next, wrap a layer of the butyl mastic tape over the adhesive side of the tape, covering all of the tape and connector.
a. Weatherproofing antenna connectors on the device:
b. Weatherproofing antenna cable:
Step 5: Wrap vinyl tape over the butyl layer and cover the entire tape assembly.
(a) (b)
(a)
(b)
(a)
(b)
(a)
(b)
