Recommended Antennas
ORiNOCO
®
AP-9200R - Hardware Installation Guide 37

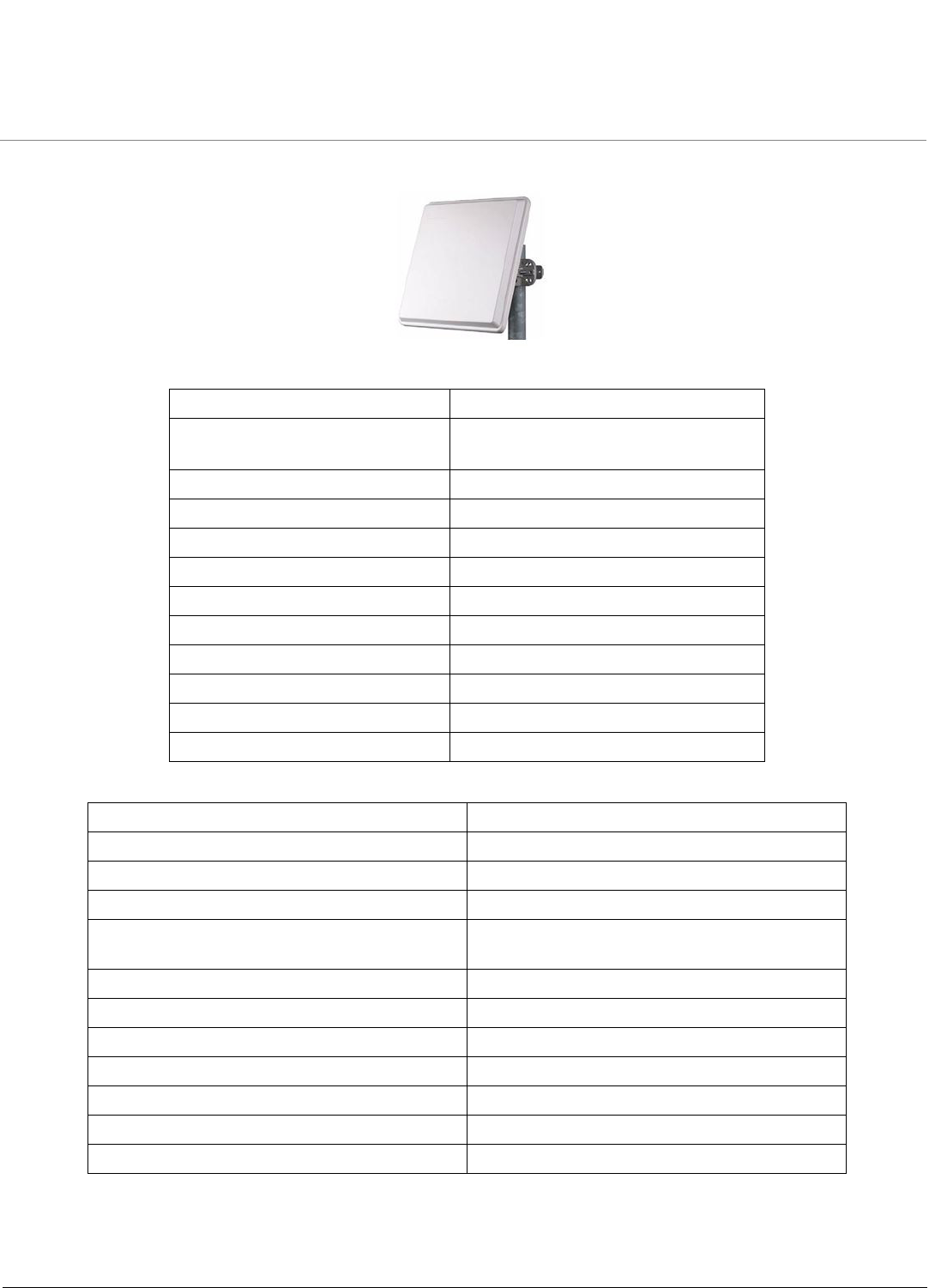

7.5.2.3 19 dBi Quad Polarized Panel Antenna
Electrical Specifications
Environmental and Mechanical Specifications
Frequency Range 4.9 - 6.425 GHz
Gain 4.9 - 5.15 @ 4x18 dBi
5.15 - 6.425 @ 4x19 dBi
VSWR, max. 1.7 :1
Polarization Quad Pole Vertical, Horizontal & Dual Slant (±45°)
3 dB Beam-Width-Azimuth, typ. 19º
3 dB Beam-Width-Elevation, typ. 19º
Side Lobes, min. -12 dB
Front to Back Ratio, min. -35 dB
Port to Port Isolation, min. -34 dB
Input Impedance 50 Ohms
Input Power 10 W (max)
Lightning Protection DC Grounded
Dimensions (HxWxD) 370 x 370 x 40 mm (14.6" x 14.6" x 1.5")
Connector 4 X N-type Female
Weight 2 kg.
Radome UV Protected Polycarbonate
Back Plane Aluminum protected through chemical
passivation
Operating Temperature Range -55°C to +65°C
Vibration According to IEC 60721-3-4
Wind Load 200 Km/h (Survival)
Flammability UL94
Water Proofing IP-67
Humidity ETS 300 019-1-4,EN 302 085 (Annex A.1.1)
Salt Fog According to IEC 68-2-11
