Recommended Antennas
ORiNOCO
®
AP-9200R - Hardware Installation Guide 25

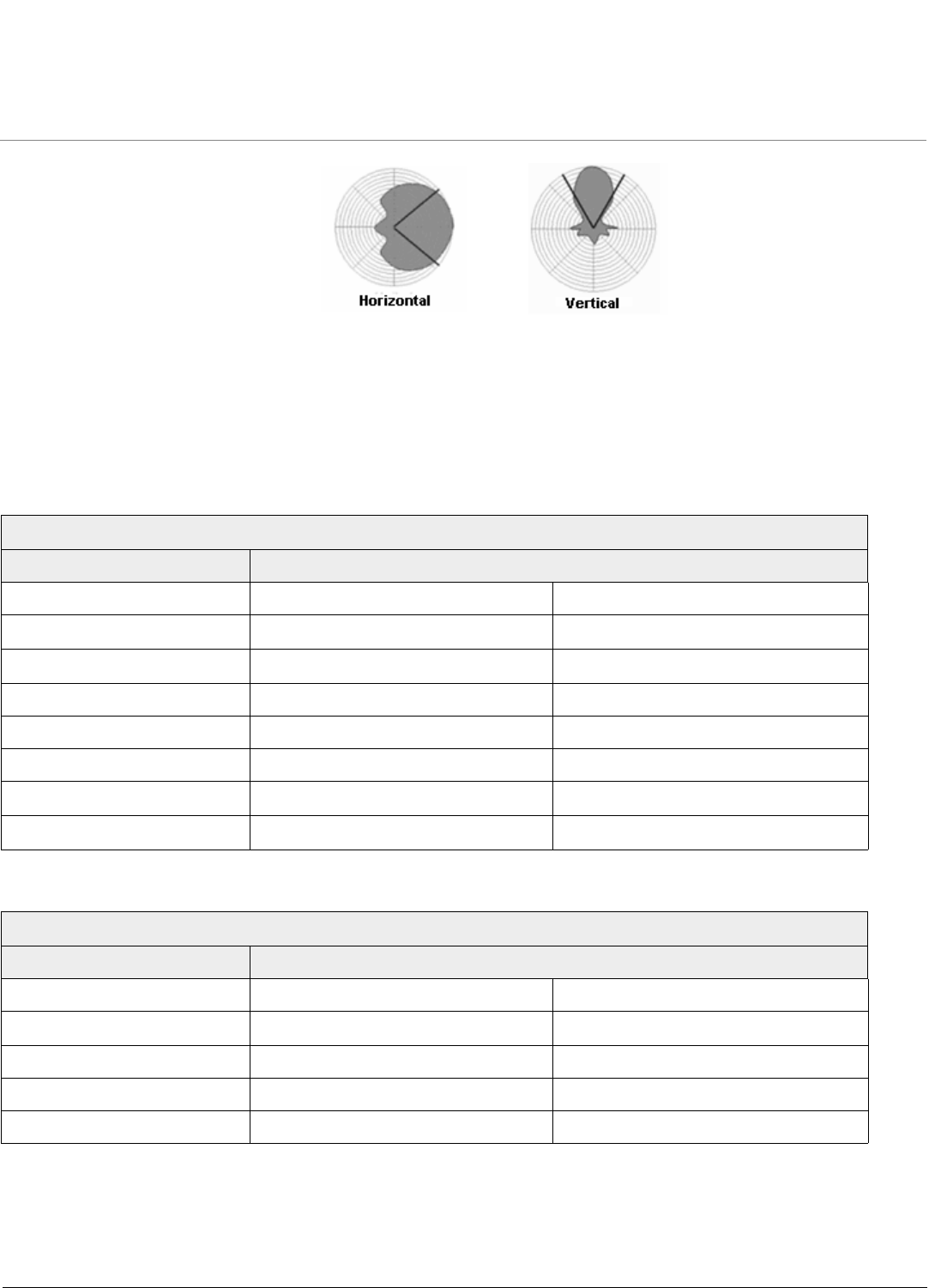

Figure 7-2 Sector Antenna Coverage
7.3 Supplied Antenna Specifications
This section illustrates the technical specifications of the following:
• AP-9200R
Electrical Specification
Mechanical Specification
Products: AP-9200R
Feature Specification
5 GHz Omni Antenna 2.4 GHz Omni Antenna
Frequency Band 5150 - 5850 MHz
2400 - 2500 MHz
Gain 7 dBi
7 dBi
Azimuth Half Power Beam Width 360
o
360
o
Elevation Half Power Beam Width 10
o
15
o
Polarization Linear Linear
VSWR <= 2.0
<= 2.0
Impedance 50 Ohm
50 Ohm
Products: AP-9200R
Feature Specification
5 GHz Omni Antenna 2.4 GHz Omni Antenna
Connector RP-SMA plug
RP-SMA plug
Size 250xØ16 mm 250xØ16 mm
Operating Temperature -40°C ~ +80°C -40°C ~ +80°C
Storage Temperature -40°C ~ +80°C -40°C ~ +80°C
