CX-Series Service Manual
MAINTENANCE
TOOLS FOR MAINTENANCE
REPLACING LEVERS
TO REMOVE THE LEVER
1. If removing the exterior lever, first remove the removable core by inserting the control key and turning it 15
degrees clockwise. Then, pull out the removable core and key.
2. Line up the mechanism on the inside of the lock where the core was removed with a core turn knob tool.
3. Insert the pin of the lever release tool into the small hole at the base of the shaft on the lever.
4. Push in and then slide the lever off the sleeve of the lever shaft.
TO REPLACE THE LEVER
1. Position the lever so the handle points towards the door hinges.
2. Slide the lever onto the lock and push firmly until it is seated. If the lever does not easily seat, move the throw
member with the core turn knob tool.
3. If replacing the exterior lever, reinstall the removable core by aligning the throw member (forked prongs) within
the lock chassis and then sliding the core back in place. Turn the control key 15 degrees counterclockwise and
remove the key.
4. Turn both levers to make sure they retract the latch if the door is unlocked.

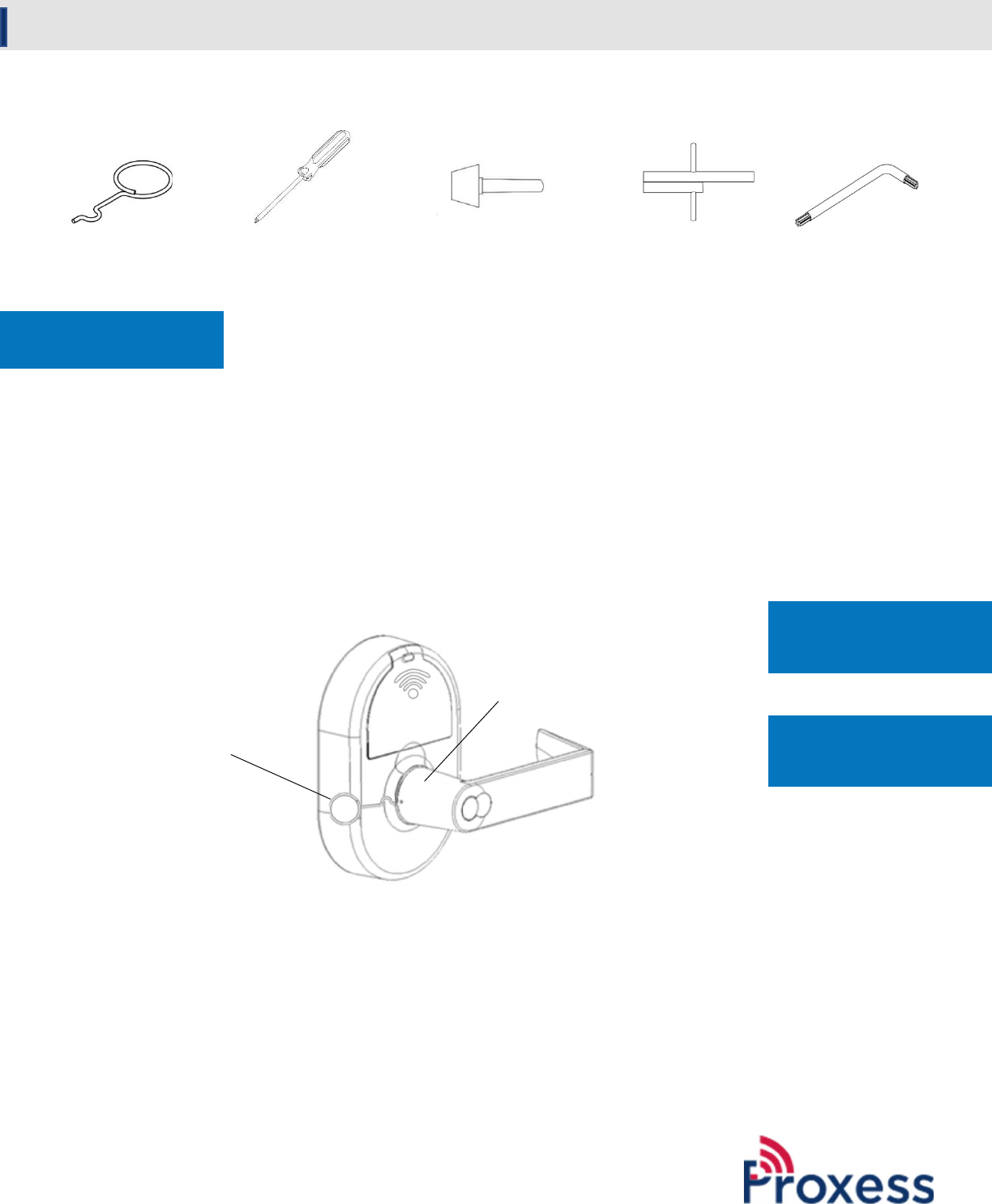

Lever Release Tool
(Included with lock)
Philips
Screwdriver, #2
Lever release tool
Lever shaft
Core Turn Knob Tool
Cylinder and Core
Testing Wrench
9
-
A
9
-
B
Torx Wrench
(Included with lock)
6-pin or 7-pin removeable cores
allow for added security and
painless re
-
key.
Proxess cores are stamped with
your custom key code to make
ordering simple and reliable.
Lockset can be quickly installed
with only a Philips Screwdriver.
