CX-Series Service Manual

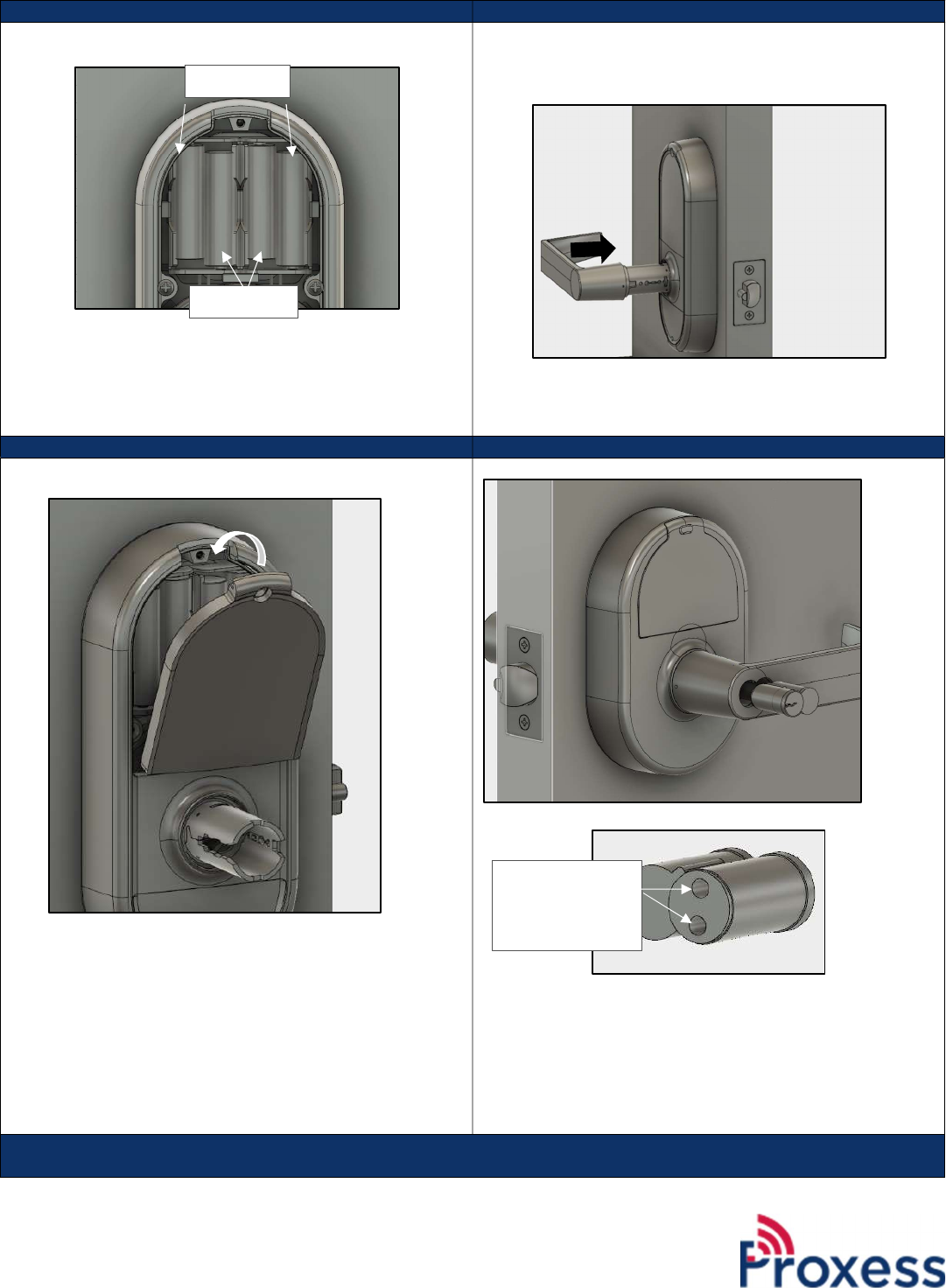

STEP 10
STEP 12
Install the four AA batteries, beginning with the outer two.
After the batteries are properly installed, the lock should beep
once and the motor will run. The lock is then in the locked
position.
Install the levers onto the outside and inside of the door. See
tips in CX-Series Service Manual for exterior handle installation
and removal prior to installation.
STEP 11
STEP 13 (If Necessary)
Screw the battery cover onto the trim.
Install the removable core.
Once the removable core is aligned with the forked pin in the
lock, insert the control key and turn clockwise 15 degrees to
retract the locking lug, then insert the core into the lever. Turn
the control key back counterclockwise 15 degrees to engage the
core and remove the key.
E. Now that the hardware is installed, see “Software Solutions” in this manual to locate your
software resources and begin programming.
Insert first
Insert last
Align with prongs
of throw member
(forked pin)
