CX-Series Service Manual
STEP 6
STEP 8

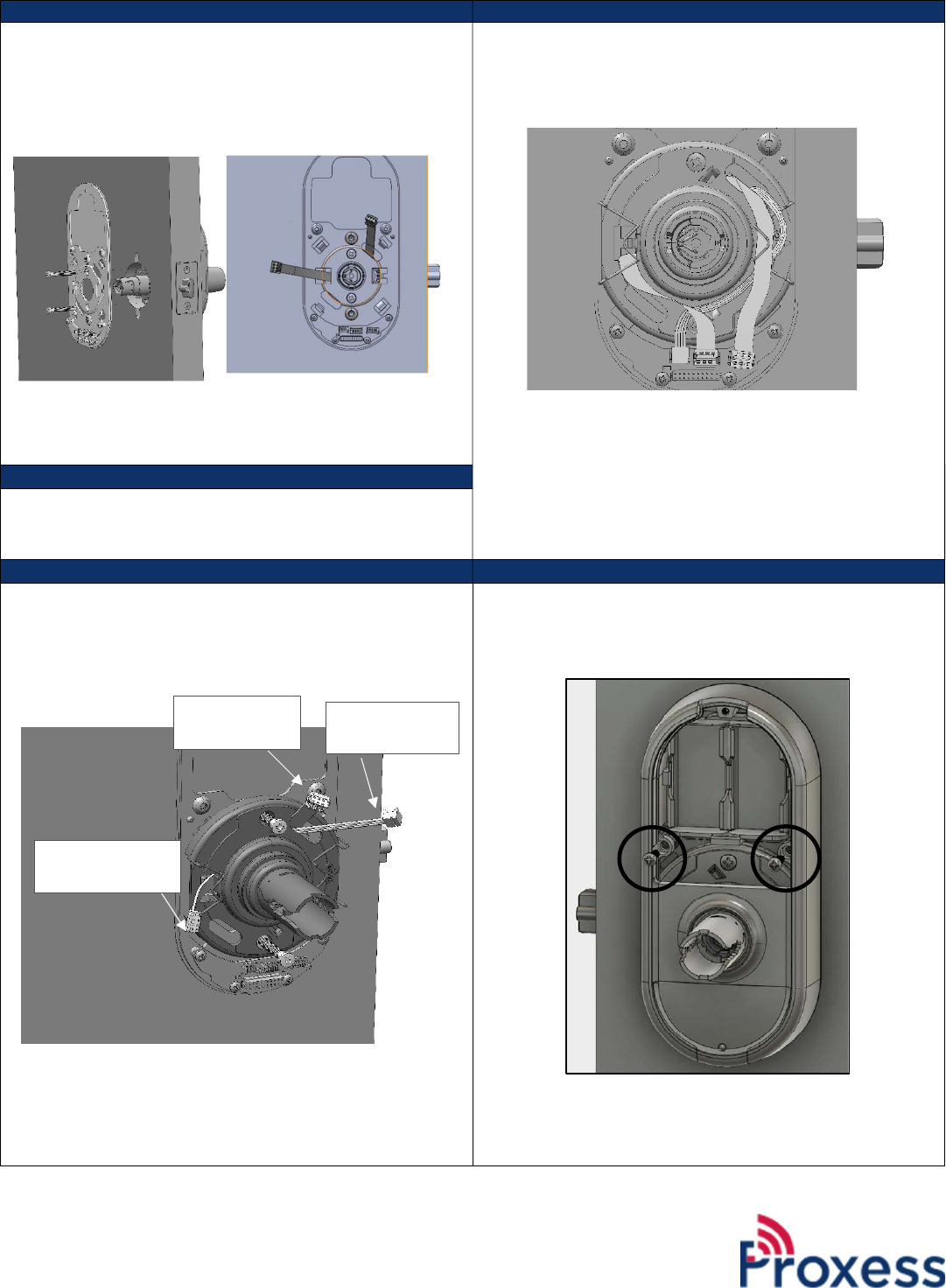

Place the back plate on the interior of the door with the upper
and lower screws near the chassis. Route the chassis cable
through the square hole, and the exterior cable through the
upper oval hole.
Connect the chassis, exterior, and handle switch cables to the EZ
connect board, leaving the exterior connection (6 pin rightmost
connection) for the last connection. Ensure all cables are neatly
tucked into the retaining clips on the rose plate.
*RS-485 Option boards will have a 4th cable to connect to the
EZ Connect board located on the left of the board. (edited)
STEP 6B Deadbolt Configuration
For information about installing the Proxess Cylindrical Lockset
with a deadbolt, see “Door Preparation and Installation” in the
CX-Series Service Manual available at proxess.com.
STEP 7
STEP 9
Place the interior rose liner on the interior back plate and screw
in. Route the chassis cable through the square hole in the rose
liner, and the exterior and handle switch cables through the
upper oval hole (the handle switch will route through the lower
oval hole for other than default handing).
Install the interior trim onto the back plate. The boards will plug
into one another when placed correctly. Screw the interior trim
onto the back plate using the two screws on the right and left of
the battery compartment.
Exterior
connector
Handle switch
connector
Chassis
connectors
