CX-Series Service Manual
B.

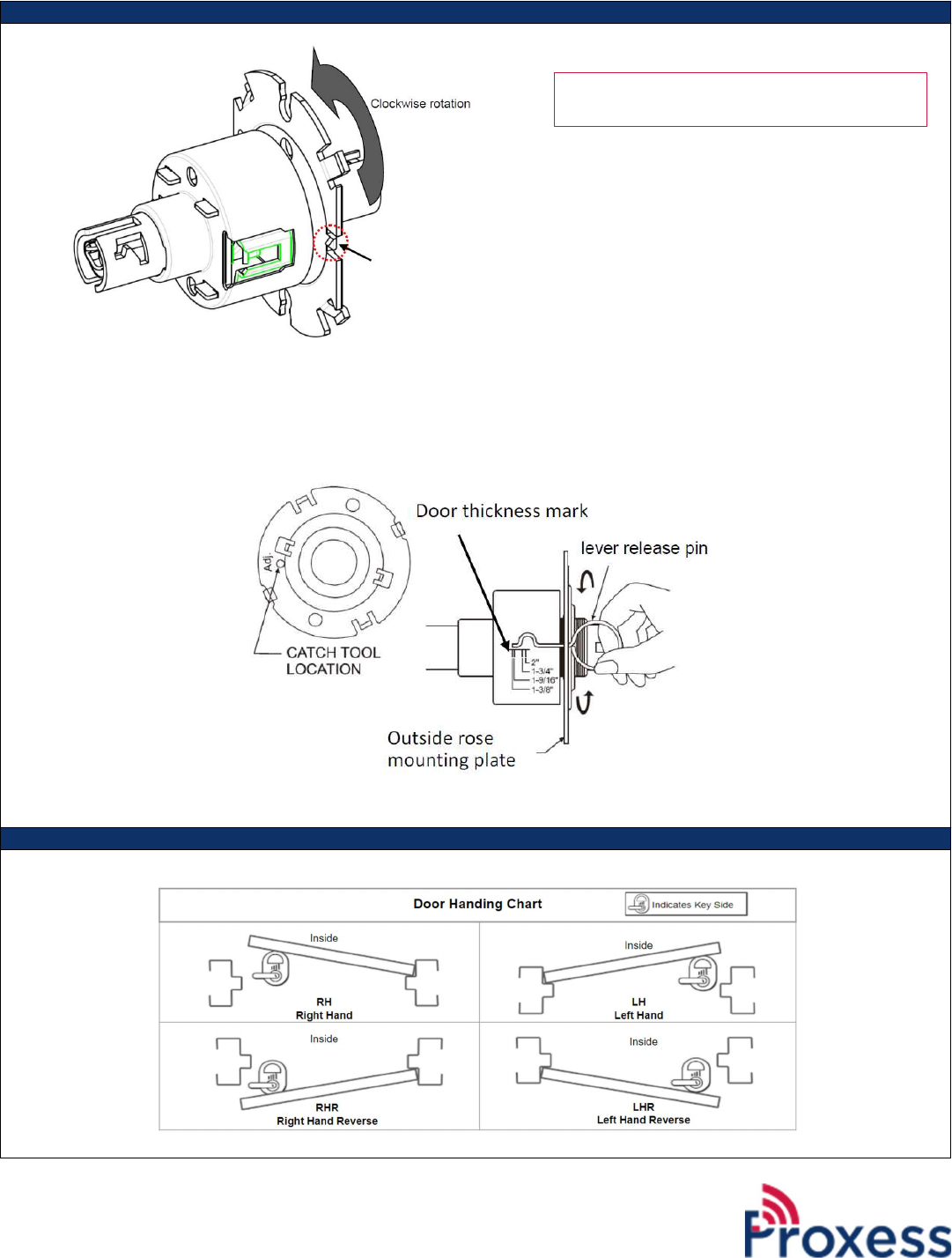

ADJUST FOR DOOR THICKNESS
Remove through bolt posts from chassis. Pull chassis and rose mounting plate from exterior lock assembly.
1. Please follow the steps below:
a. Rotate exterior rose mounting plate toward cylindrical chassis.
b. Put the lever release tool into the allocated position of exterior rose mounting plate per the illustration below.
c. Rotate exterior rose mounting plate to door thickness by using the lever release tool.
C.
LOCK HANDING AND REHANDING (IF NECESSARY)
Determine the hand of your door. The product is set up for Right Hand (LHR) by default.
Anti-Rotation Tabs on
the rose mounting plate
PLEASE NOTE THAT THE LOCK BODY COMES
PRE-SET TO ACCOMMODATE A 1¾ INCH DOOR
