Service Manual

CX-Series Service Manual

CX-SERIES INSTALLATION INSTRUCTIONS

A. CHECKLIST (4 AA Batteries Included)

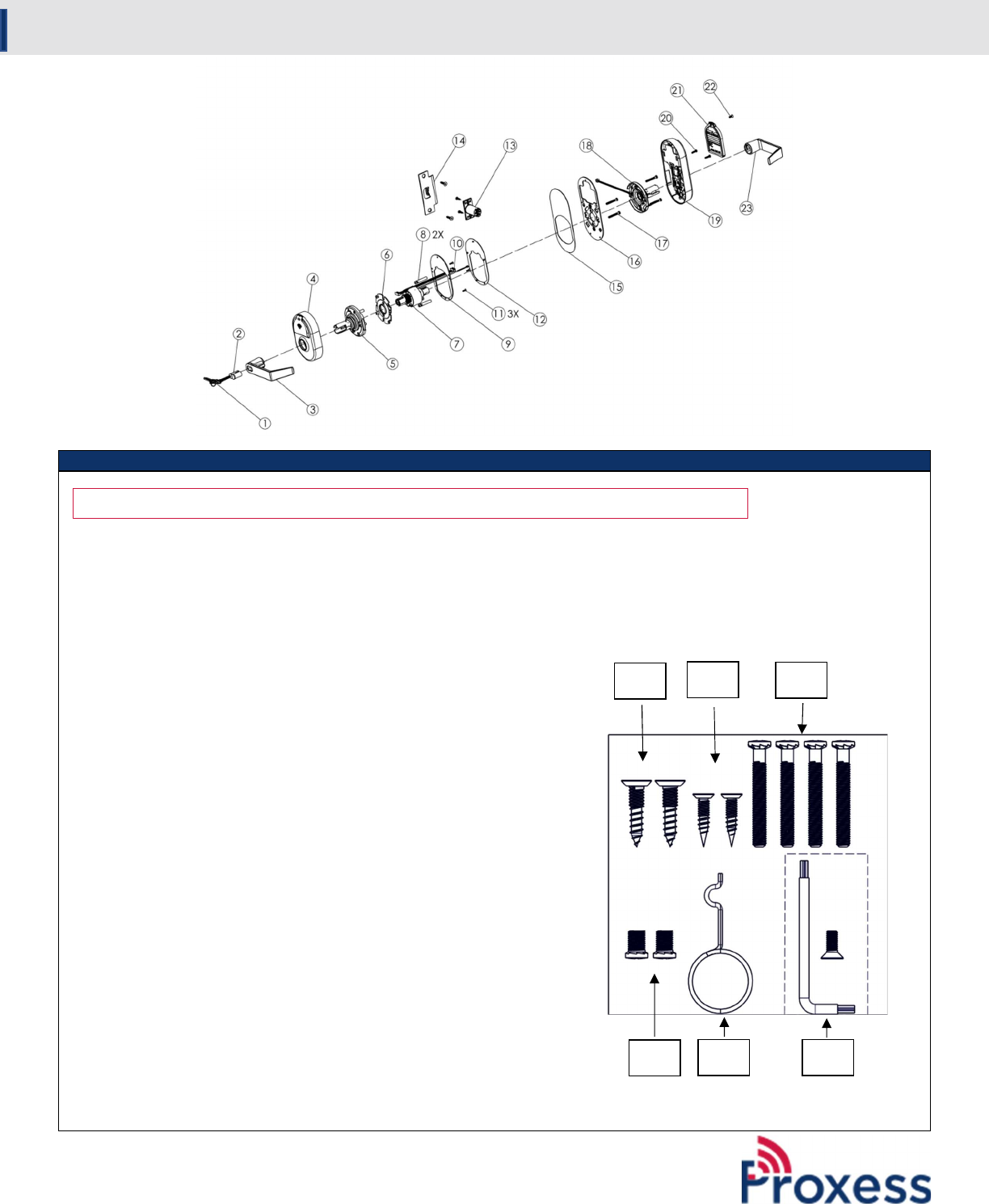

Parts List: Each Proxess CX-Series lockset includes

• Door Preparation Template

• Cylindrical Lever Lockset with Installation Instructions

• Exterior lock assembly (include housing, lever and cylinder drive unit)

1. Keys

2. Removeable Core

3. Exterior Lever

4. Exterior housing (includes plastics and light pipes)

5. Exterior Rose

6. Chassis plate

7. Chassis

8. Through Bolt Posts

9. Exterior Backplate

10. Ribbon Cable

11. Exterior Assembly Screws

12. Exterior Gasket

• Hardware box includes:

13. Latch

14. ASA Strike Plate

Screw Pack includes:

 (SP1) Hager mounting screws M5 x 38mm x4pcs

 (SP2) Flat head tapping screws #8x3/4" x2pcs

 (SP3) Flat head tapping screws #12-24 x 18mm x2pcs

 (SP4) Lever release tool

 (SP5) Hager mounting screws M6 x 10mm x2pcs (optional)

 (SP6) Torx Wrench and Optional Torx Security Screw

• Interior lock assembly

15. Interior Gasket

16. Interior Backplate

17. Interior Backplate Screws

18. Interior Rose

19. Interior Housing

20. Interior Housing Screws

21. Battery Cover

22. Battery Cover Standard Screw

23. Interior Lever

FOR DOOR AND FRAME PREPARATION INSTRUCTIONS, SEE APPENDIX A OR GO TO PROXESS.COM

SP1

SP2

SP3

SP5

SP4

SP6
