DOOR PREPARATION AND INSTALLATION

CYLINDRICAL INSTALLATION JIG KITS

Light-duty, small quantities: Home improvement stores such as Home Depot and Lowes sell inexpensive kits from Ryobi,

Milwaukee and DeWalt.

Heavy-duty, industrial: Pro-Lock (“Killer Jig”) and Templaco (115-C3) offer kits.

THROUGH-BOLT DRILL JIG A00-0002A

For retrofit doors that do not already have standard ADA lever holes, Proxess offers the

A00-0002A jig to assist in drilling holes for added stability and security of the CX product.

NOTE: Removing the through bolt posts from the chassis will decrease the security of the

lock, voiding ANSI Grade 1 rating of the lock.

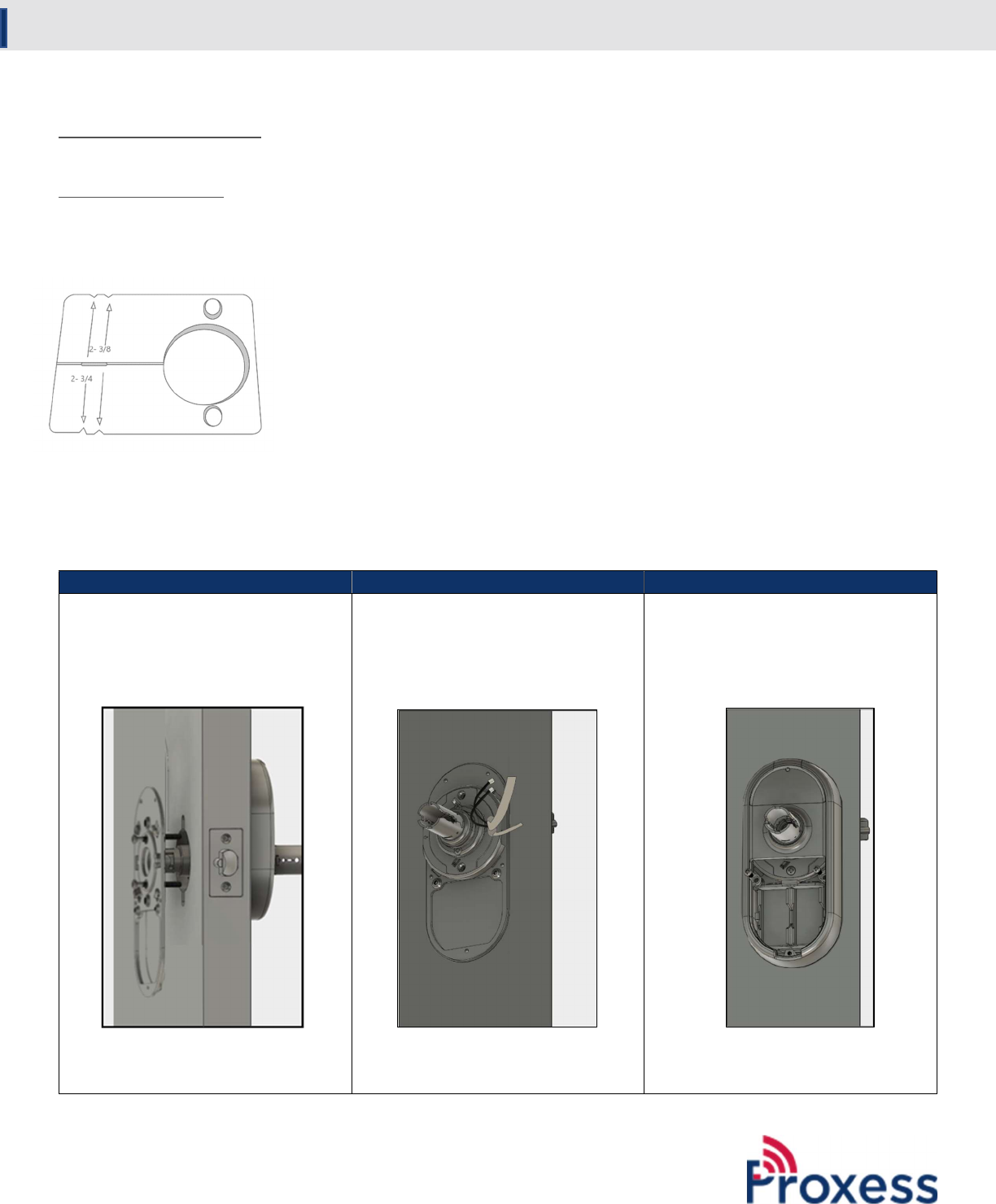

DEADBOLT DOOR CONFIGURATION

To mount the Proxess cylindrical lockset on a door with a deadbolt installed, you will need to mount the internal housing

(battery side) upside down. The backplate and rose plate are designed to accommodate this mounting.

STEP 1

STEP 2

STEP 3

Position the backplate on the interior

of the door so that the large opening

is underneath the chassis assembly.

Route the cable and wires through

the oval holes in the backplate. Make

sure to run all cables through the

oval holes in both backplate and rose

plate.

NOTE: Wire paths may differ

according to handing.

Fasten to the door using the upper

and lower screws nearest the chassis.
