M-WR741N/M-WR741ND 150Mbps Wireless Lite-N Router
- 73 -
Choose menu “Bandwidth Control → Rules List”, you can view and configure the Bandwidth
Control rules in the screen below.
4.13.2 Rules List

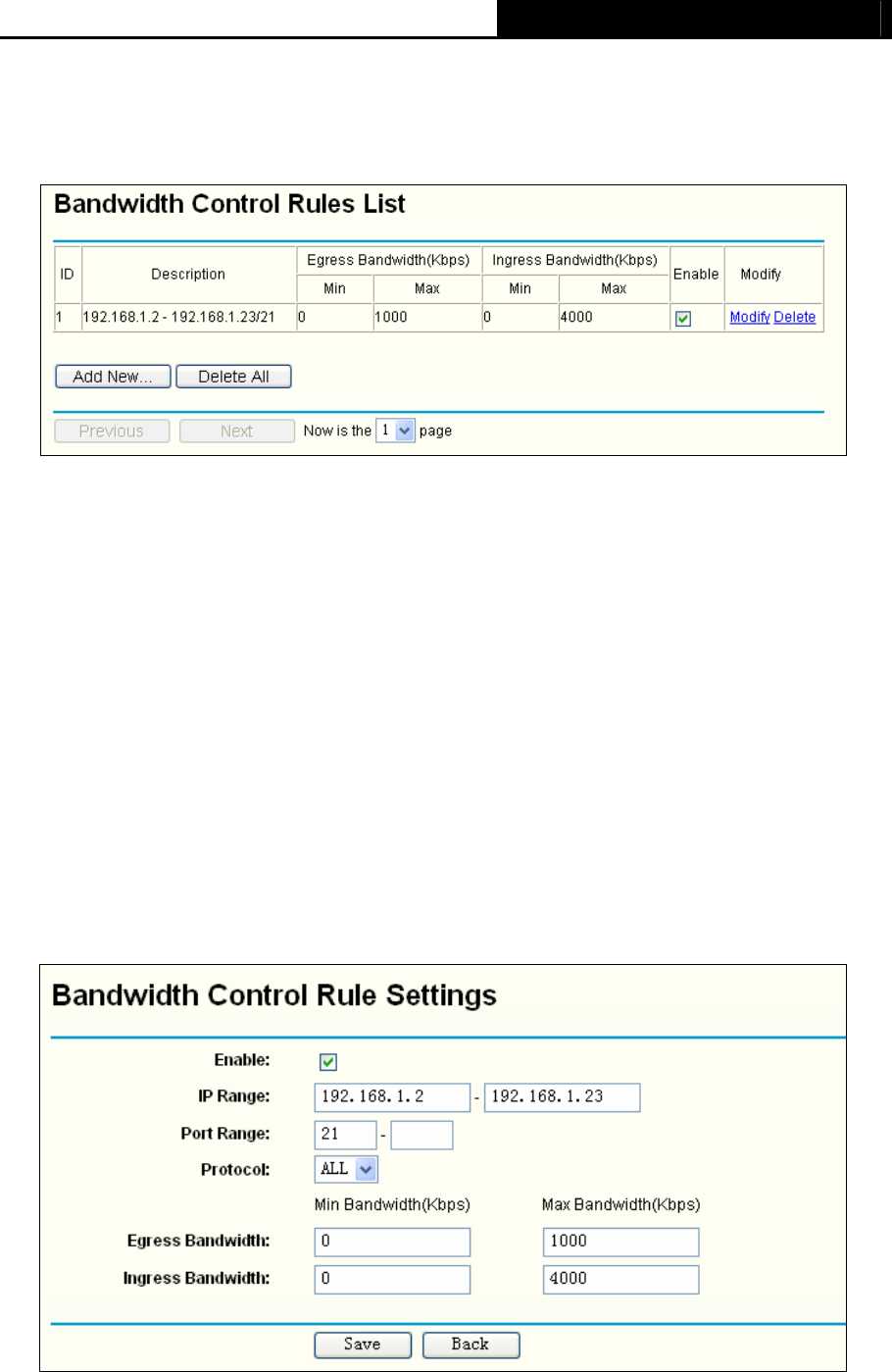

Figure 4-60 Bandwidth Control Rules List
¾ Description - This is the information about the rules such as address range.
max and mix download bandwidth through the
¾ Click to edit the rule. Click to delete the rule.
w.
Step 1: Click Add New… shown in Figure 4-60, you will see a new screen shown in Figure 4-61.
Step 2: Enter the information like the screen shown below.
¾ Egress bandwidth - This field displays the max and mix upload bandwidth through the WAN
port, the default is 0.
¾ Ingress bandwidth - This field displays the
WAN port, the default is 0.
¾ Enable - This displays the status of the rule.
Modify - Modify Delete
To add/modify a Bandwidth Control rule, follow the steps belo
Figure 4-61 Bandwidth Control Rule Settings
