User's Guide

M-WR741N/M-WR741ND 150Mbps Wireless Lite-N Router
- 72 -
take effect.
.
the previous screen, click the Next button to
reen.
4.13 Bandwidth Control
4. Click the Save button to make the entry
Click the Delete button to delete the entry.
Click the Enable All button to enable all the entries.
Click the Disable All button to disable all the entries
Click the Delete All button to delete all the entries.
Click the Previous button to view the information in
view the information in the next sc

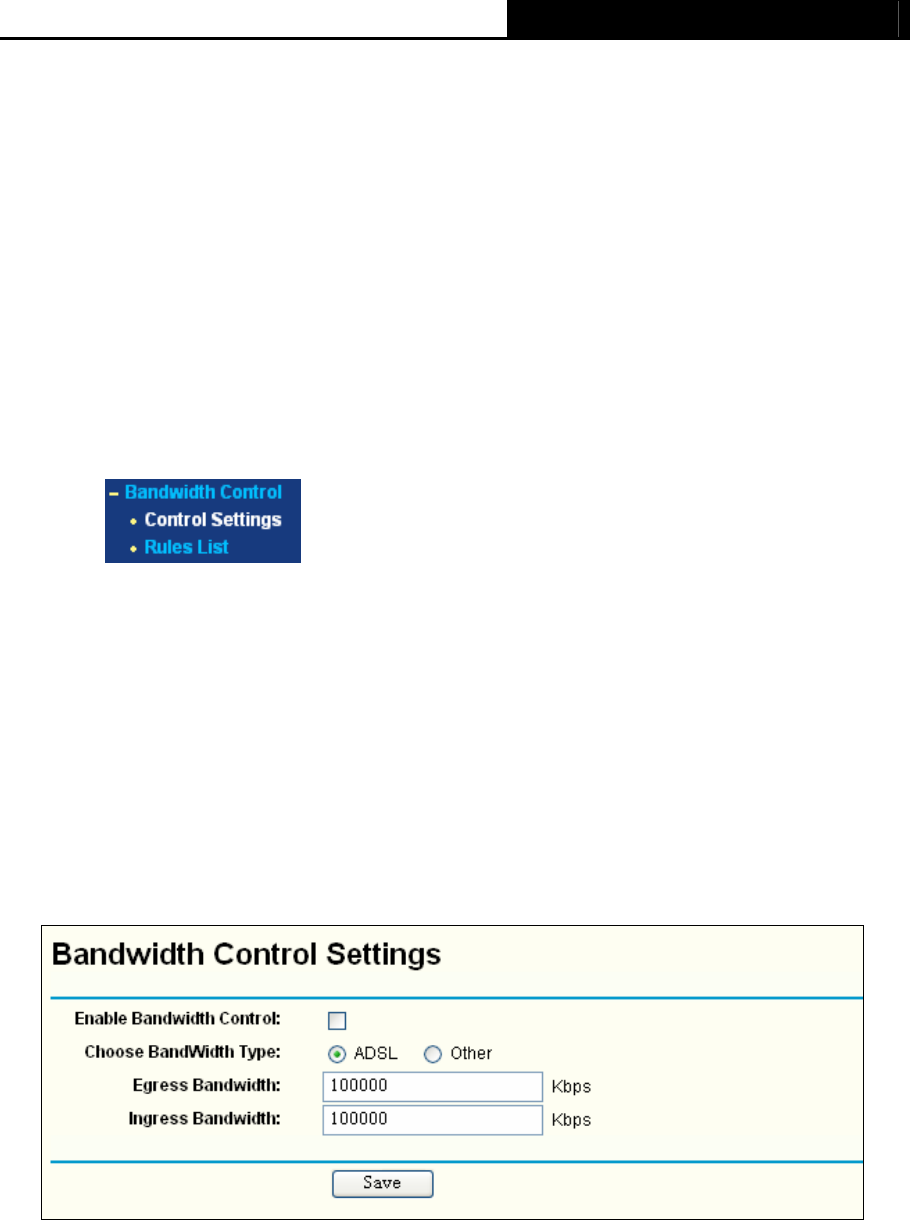

Figure 4-58
There are two submenus under the Bandwidth Control menu as shown in Figure 4-58. Click any
of them, and you will be able to configure the corresponding function. The detailed explanations
ed below.
ss Bandwidth in the next screen. Their values you configure should be less
than 1000000Kbps.
for each submenu are provid
4.13.1 Control Settings
Choose menu “Bandwidth Control → Control Settings”, you can configure the Egress
Bandwidth and Ingre
Figure 4-59 Bandwidth Control Settings
For optimal control of the bandwidth, please select the right bandwidth type and ask your ISP for
f the egress and ingress.
)
Note:
the total bandwidth o
