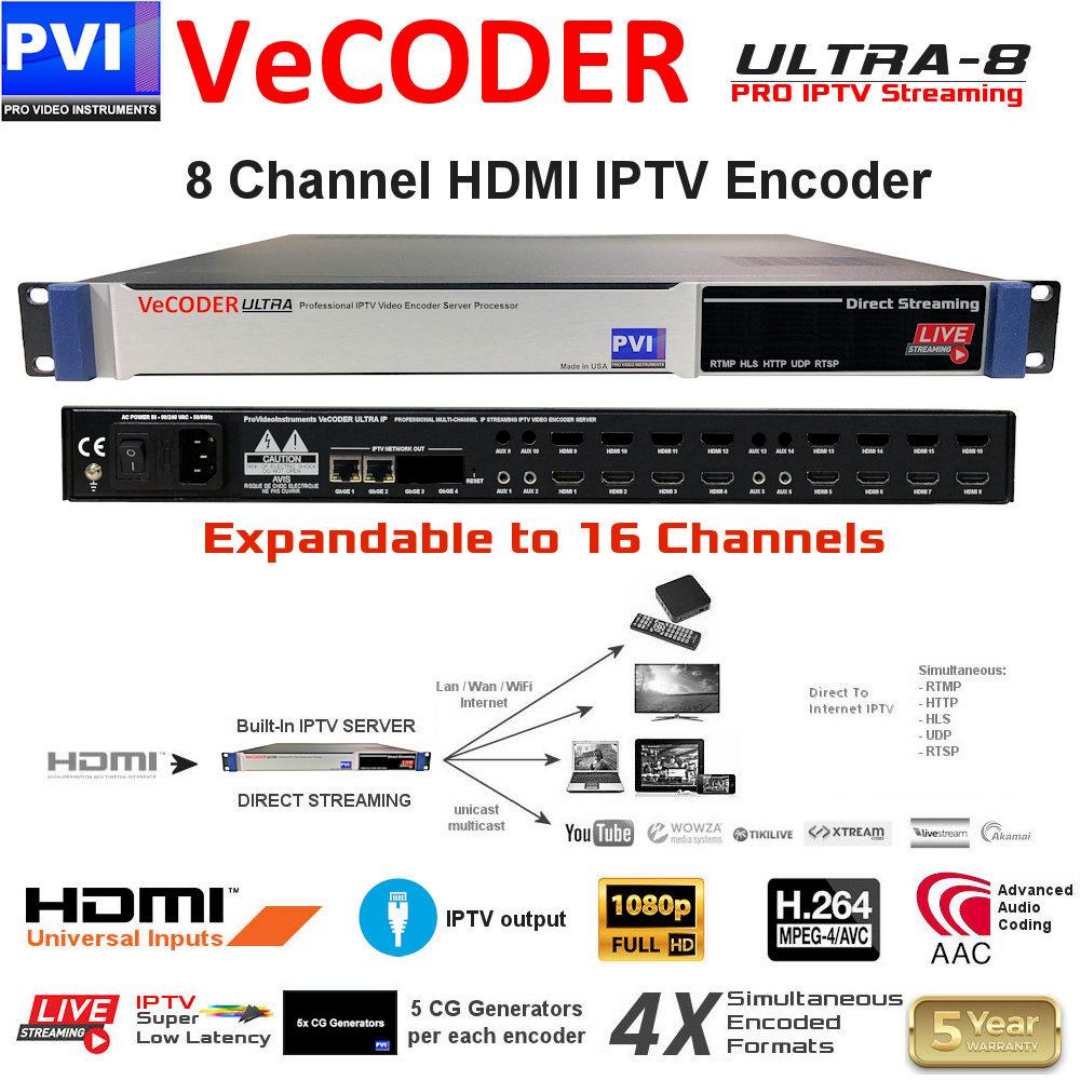

Key Features

•Converts up to Eight HDMI Full HD Video sources into 8 IPTV Streams you can watch on unlimited smartTV and IP player Devices

•Works with any HDMI video sources distributing real time perfect quality video & sound over the existing routers, switch, lan, wifi,

internet

•Built-In Gigabit IPTV Server for direct HDMI to IP Streaming to SmartTVs Phones Tablets PCs Web - simultaneous HLS M3U8 HTTP

UDP RTMP RTSP out

•Each HDMI input channel can also create 4 different resolutions ( multi-rate ) to serve different target audiences and devices

•Four Logo graphic & text inserters per each stream for channel Branding & WaterMarking - Modular - Expandable - Reliable - 5 Year

Warranty

Summary of content (7 pages)

PAGE 1
Key Features •Converts up to Eight HDMI Full HD Video sources into 8 IPTV Streams you can watch on unlimited smartTV and IP player Devices •Works with any HDMI video sources distributing real time perfect quality video & sound over the existing routers, switch, lan, wifi, internet •Built-In Gigabit IPTV Server for direct HDMI to IP Streaming to SmartTVs Phones Tablets PCs Web - simultaneous HLS M3U8 HTTP UDP RTMP RTSP out •Each HDMI input channel can also create 4 different resolutions ( multi-rate ) to ser
PAGE 2
8 HDMI over IP HD Streaming IPTV Encoder Real Time Hardware IP Video Encoder, HDMI Licensed, 480i / 720p / 1080i / 1080p Full HD Streaming Server, Mpeg2 AAC AC3 Audio Encoding Built-In Simultaneous M3U8, HLS, HTTP, RTMP, RTSP IPTV Streaming Server, Four Scalers and Multi-Rate per each channel, Logo Inserters PN: VECODER-ULTRA-8 The VeCODER-ULTRA-IP-8H is a professional Eight channels HDMI To IPTV Streaming video encoder, built with the next generation H.
PAGE 3
Features & Benefits • • • • • • • • • • LIVE HDMI Video distribution over the existing IP Networks to an unlimited number of TV & IPTV Players Direct To SmartTVs m3u8 installing on the SmartTV any of the many available SmarTV IPTV Apps Direct To Any IP Box in both multicast and/or unicast via any protocol such as udp rtp rtsp m3u8 rtmp http hls Direct To Iphones Ipads Galaxy Android HLS play direct from the device browser no app required Direct To PCs using any Windows Mac Linux video player such as VLC, M
PAGE 4
• • • • • • • • • • • • • • • • • • • HDMI digital-perfect quality streaming at any distance up to 1080p 60 Full HD Any HDMI Resolution including SD / HD / and typical Computer ones Frame Rate Encoding Control per each channel, from 1FPS to 60 fps Independent Video Scaler per each channel, to resize the video input to any resolution out for any specific Target Audience Real Time Super-Fast processing for Live Real Time Applications Licensed HDMI inputs - works with any HDMI Video Source Simple installation
PAGE 5
PAGE 6
TECH SPECS GENERAL Model Name SKU Power Cooling Fan dB level Temperature/Humidity Vibration MTBF Compliance Enclosure Type Mounting Enclosure Dimensions System Weight Carton Dimensions (Individual) Shipping Weight Warranty Reliability System Maintenance INSTALLATION Remote Control Simple Setup IPTV Networks HDMI Inputs Multi-Units VIDEO INPUT HDMI HDMI Version EDID Control AUTO Detection CC Closed Caption VeCODER ULTRA-8 HDMI 0649070905732 100-240 VAC 50/60 Hz, 60W max.
PAGE 7
Audio Video Sync - Dolby Digital® (AC-3) - Encoding rates from 56 kbps to 640 kbps - MPEG-1 Layer II Audio Encoding Standard Encoding rates from 32 kbps to 384 kbps - AAC Advanced Audio Coding - MP3 Audio Encoding Automatic Audio Video frame by frame synchronization with Time Stamp TRANSPORT STREAM PIDs Numbering Descriptors Full Control to match any specific Network Provider or application Needs Full Control to set Programs Names / Network / Provider CONTROL SET UP NETWORK In-Band Ip web remote contro
