User's Manual

SLG™ BOLT
OPERATION
When servicing your marker:
•Makesureyourhopperisremovedfromthemarker.
•Makesuretherearenopaintballsinthebreechofthemarker.
•Alwaysremovetheairsupplyandrelieveallgaspressureinthemarker
before disassembly.
•Whenusingthemarkerintemperaturesbelow50°Fahrenheititmaybe
necessary to lube the SLG™ bolt more frequently.
W W W . P R O T O P A I N T B A L L . C O MW W W . P R O T O P A I N T B A L L . C O M
1312
The SLG™ BOLT is the main component of the SLG™ marker. In order to
achieve the best possible performance, it is essential that the SLG™ BOLT
is kept clean, well lubed and in good working order.
The SLG™ BOLT should be cleaned and re-lubed every 10,000 shots or
after breaking paint or playing in severe conditions.
The SLG™ bolt kit is composed of a 2 piece bolt, plunger,
and back cap. To remove the bolt kit, unscrew the
back cap using a
1
⁄4” Allen key. Insert the Allen key into
the back cap, while depressing the bleed button.
If there is any air remaining in the SLG™, it will be
purged when the bleed button is depressed. If air
continues to leak from the bleed system, your air system is
still feeding air into the SLG™.
De-activate the air system and continue with the bolt
maintenance. Once you have unscrewed the back cap
and removed it from the body, the bolt should slide out.
For regular maintenance there is no reason to
disassemble the bolt kit any further.
HOW IT WORKS
At rest, when the bolt is in the rear
position, there is a positive forward
force on the bolt from the air pressure
in the shot chamber. The bolt is held
in the rear position by the sear. When
the SLG™ is fired, the sear is dropped
by an electro-magnetic solenoid.
The positive forward force drives
the bolt forward until the bolt drops
off the plunger and allows the shot
chamber air to vent down the bolt
and fire the paintball. Once the shot
chamber has been fully vented, the air
supplied to the bolt creates a positive
rearward force that drives the bolt
back and allows it to catch on the sear
again. As the bolt travels rearward,
the shot chamber is filled and the
cycle is repeated.

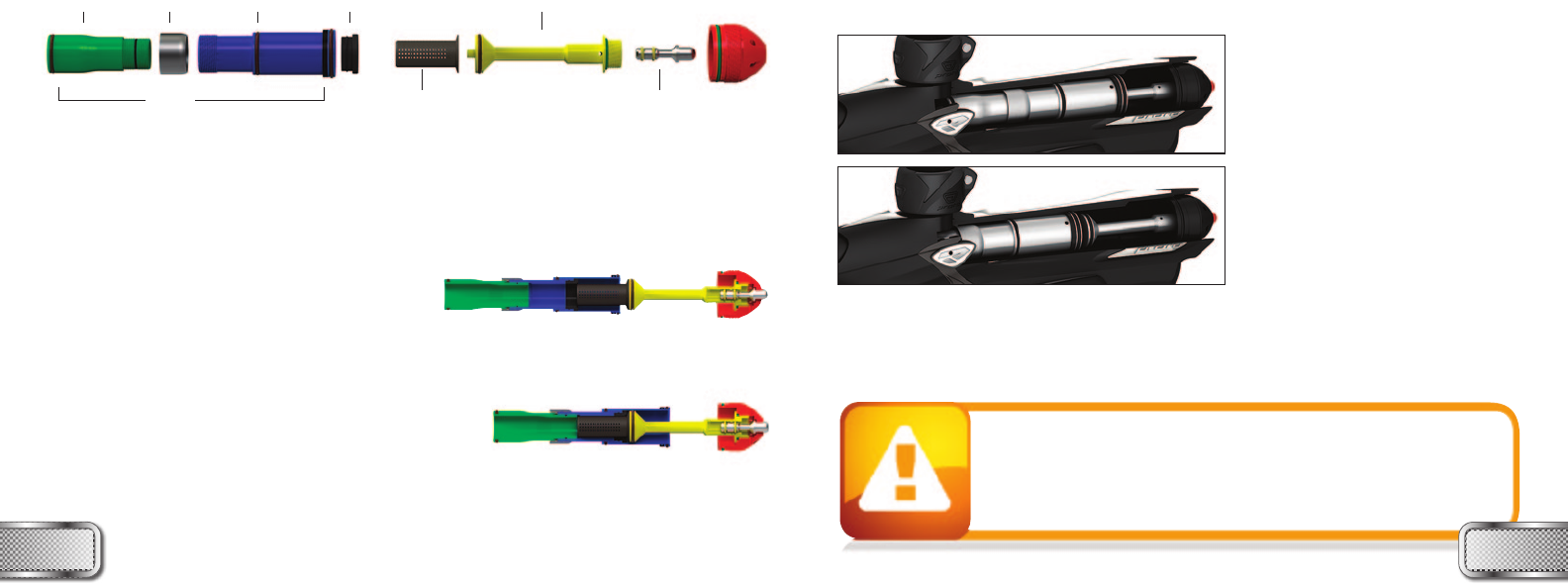

SLG™ BOLT
ASSEMBLY
BOLT
(DO NOT DISASSEMBLE FOR
REGULAR MAINTENANCE)
BOLT BACK BACK CAP
BLEED BUTTON
SILENCER
SOFT
RUBBER
CUSHION
RINGBOLT TIP
PLUNGER
FORWARD POSITION
BACK POSITION
